NEF45TM1A.A005

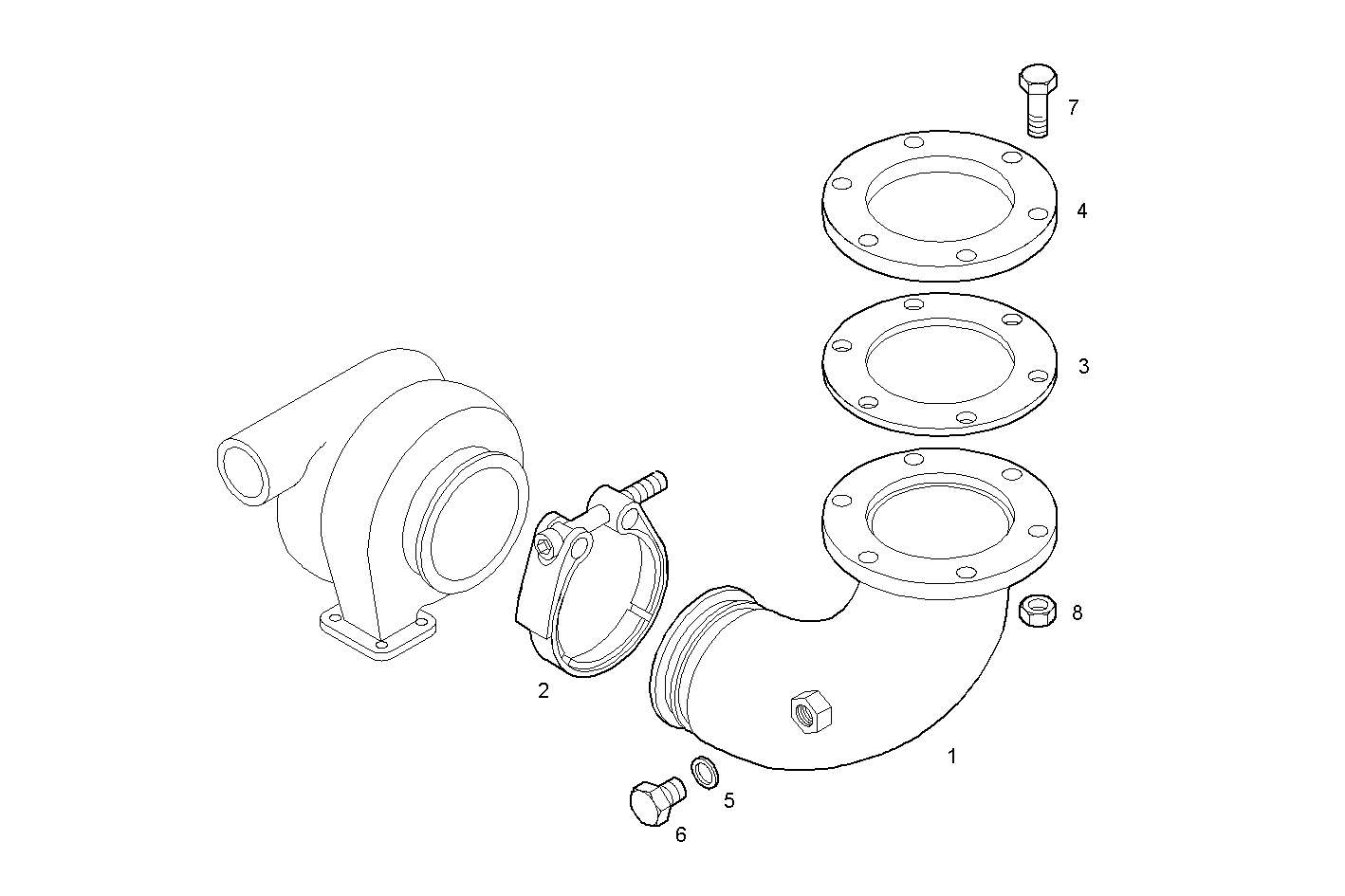

A40000502 UPWARD FRONT EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 8033835 | EXHAUST ELBOW |
| 2 | 504031827 | CLIP |
| 3 | 8009606 | GASKET |
| 4 | 4919183 | FLANGE |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 16992211 | THREADED PLUG M12X1,5 |
| 7 | 16673835 | HEXAGON BOLT M8X30 MM |
| 8 | 17044721 | HEXAGON NUT M8X1,25 |
