NEF45TM2X.R981

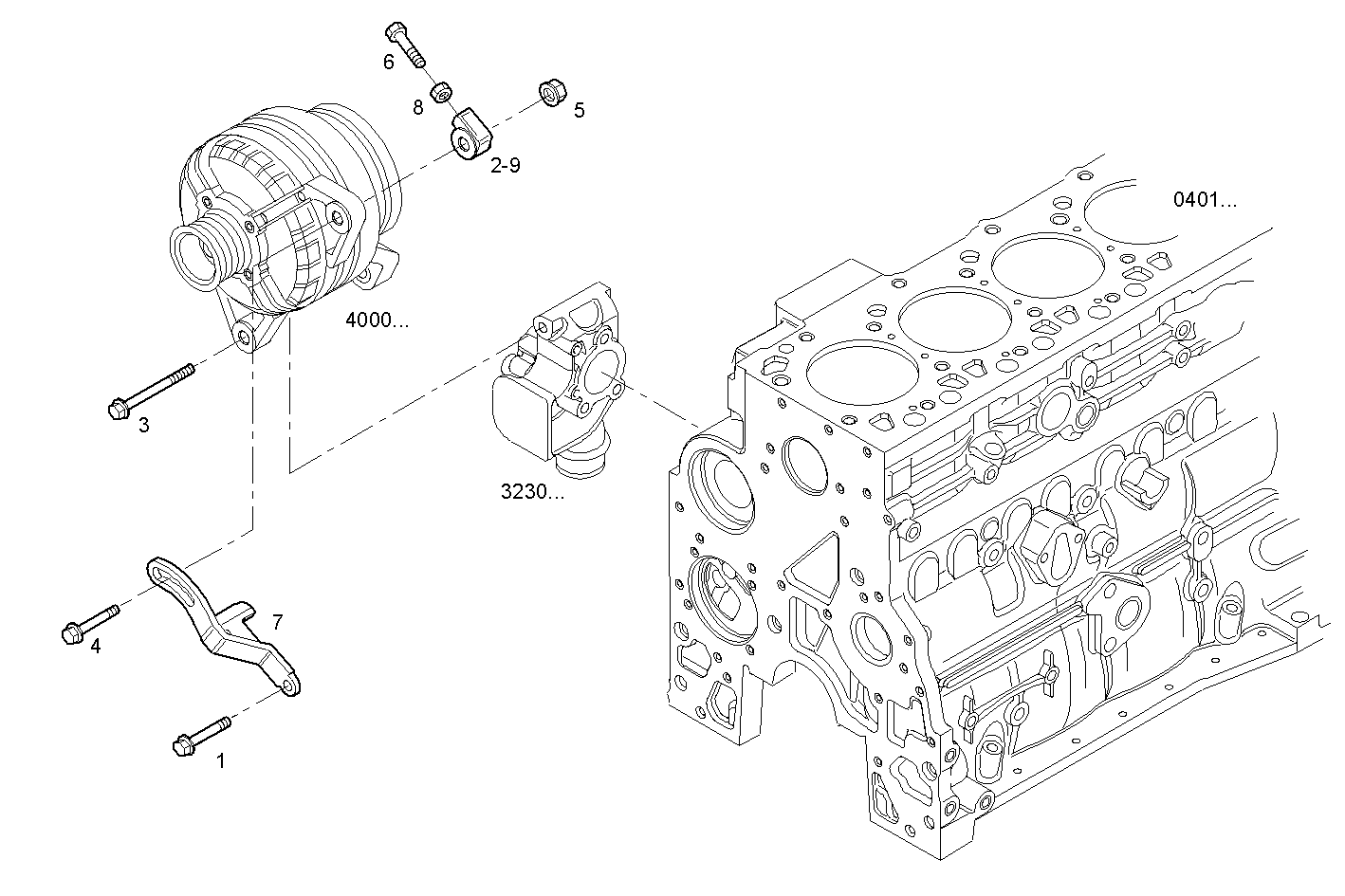

4010.002 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 2 | 504271675 | GENERATOR SUPPORT [FROM # 597318] |
| 3 | 16598924 | HEXAGON BOLT M10X110 |
| 4 | 16587724 | HEXAGON BOLT M10X55 MM |
| 5 | 17044825 | HEXAGON NUT M10 |
| 6 | 15214524 | HEXAGON BOLT M8X100 MM |
| 7 | 504009871 | BELT TENSIONER |
| 8 | 17044725 | HEXAGON NUT M8 |
| 9 | 504010798 | CHOCK |
