NEF67SM2.A001

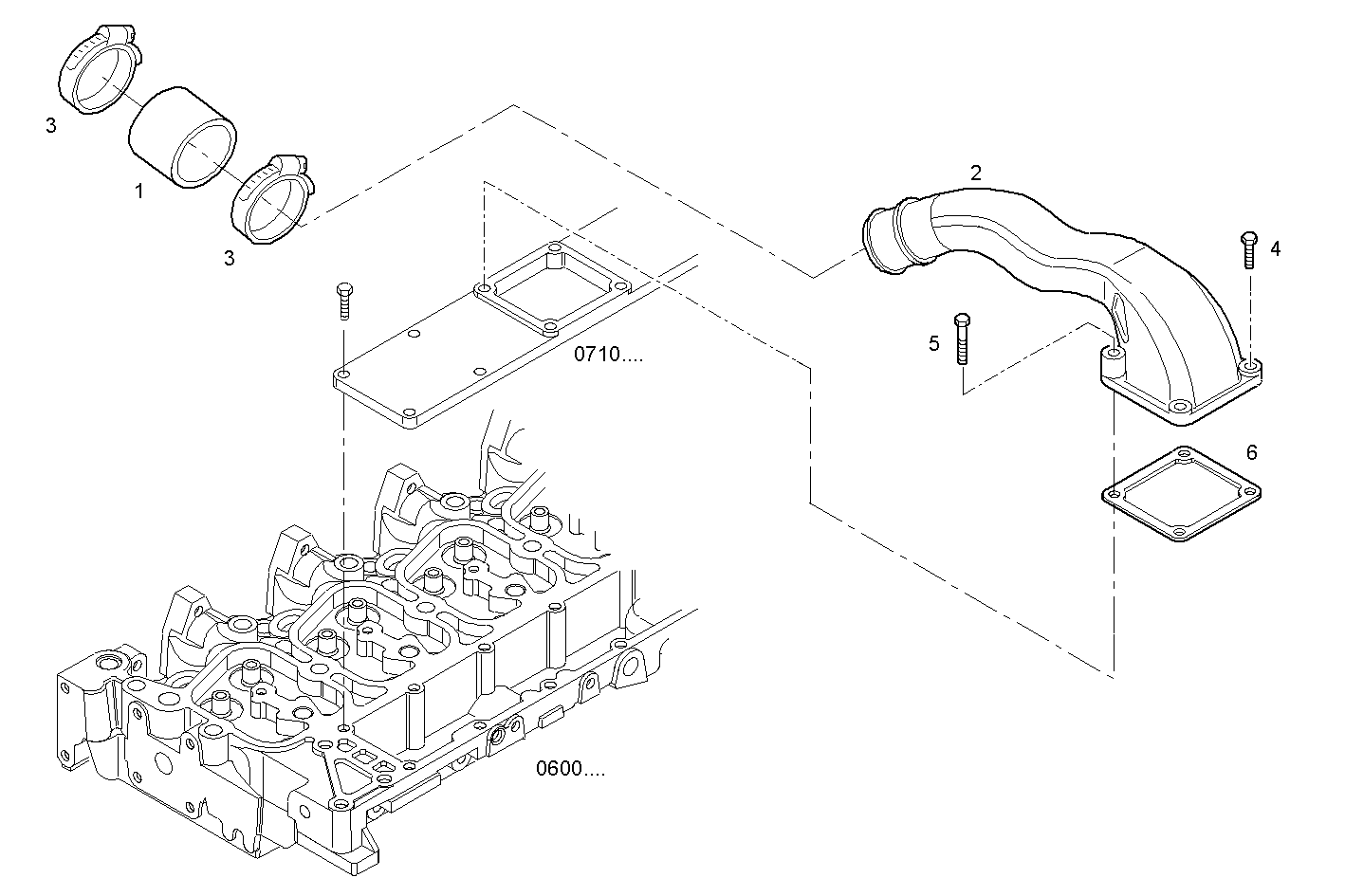

0715.016 ENGINE AIR INTAKE
Item | Part number | Description |
---|---|---|
1 | 504072912 | RUBBER SLEEVE |
2 | 504072911 | AIR MANIFOLD |
3 | 17765091 | CLIP Ø60/80 MM |
4 | 16598625 | HEXAGON BOLT M8X1,25X140 MM |
5 | 16598224 | HEXAGON BOLT M8X90 MM |
6 | 4899921 | FLAT ENGINE GASKET |
