NEF67SM2.A001

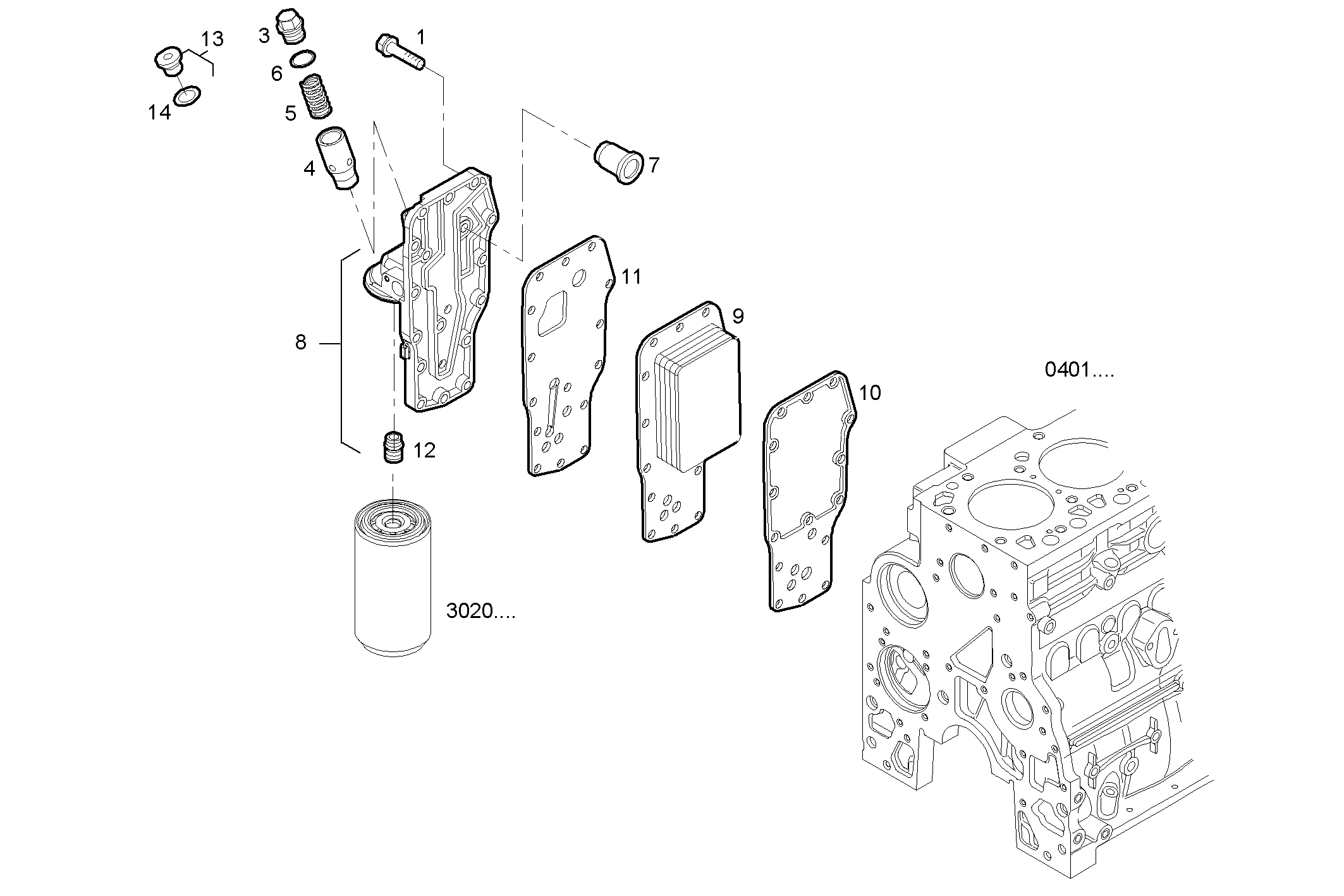

3150.015 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4899019 HEXAGON BOLT M8X35 MM
3 4895043 THREADED PLUG
4 4896404 VALVE HOUSING
5 4895045 VALVE SPRING
6 4899035 O-RING
7 4896410 VALVE
8 4899643 HEAT EXANGER BODY ASSY
9 504047629 OIL COOLER
10 2830559 FLAT ENGINE GASKET
11 4896409 FLAT ENGINE GASKET
12 4893391 THREADED UNION
13 504096409 THREADED PLUG ASSY [FROM # 155900]
14 17916280 O-RING [FROM # 155900]
