NEF67SM2.A001

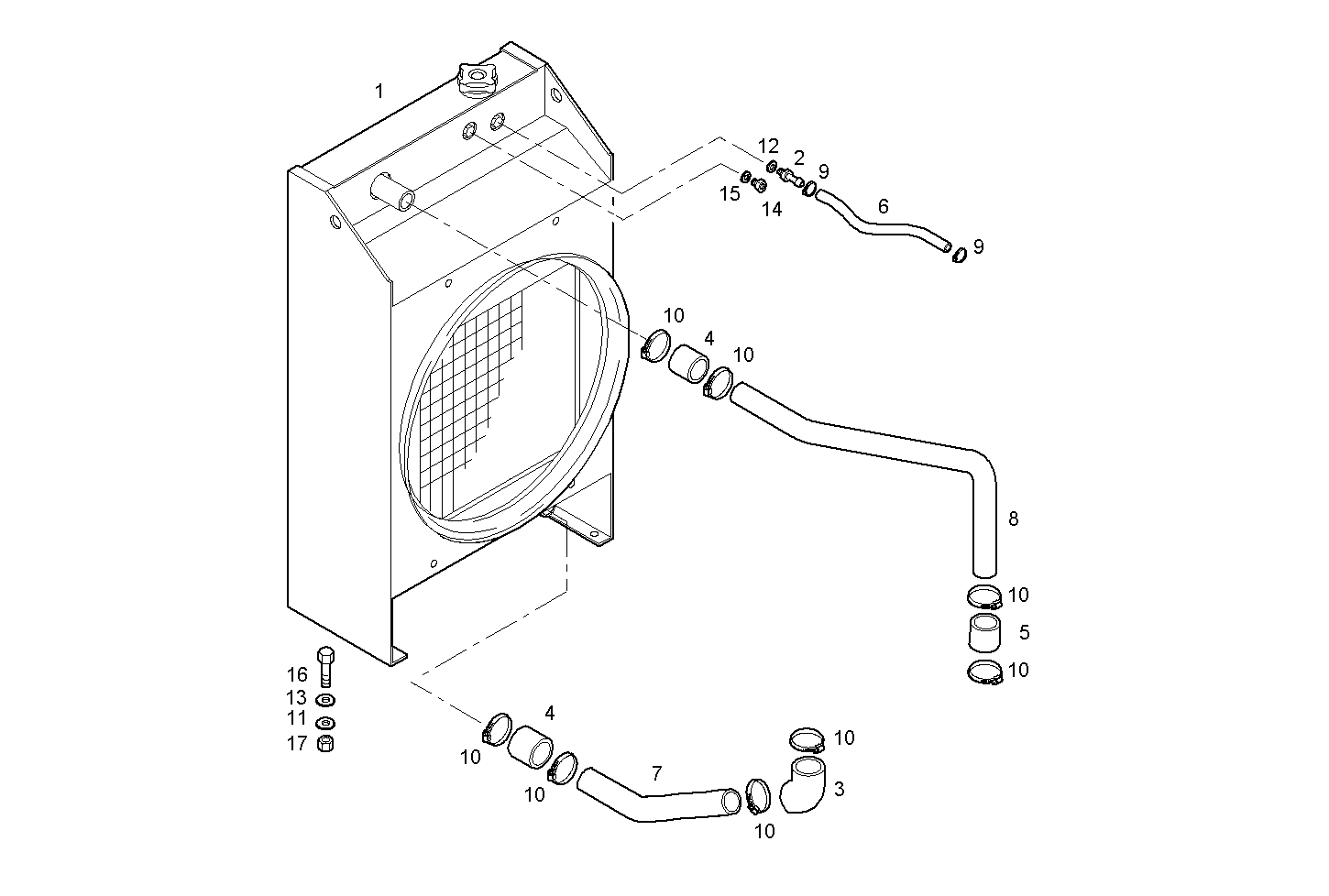

A22010512 RADIATOR - IBS

Iveco/FPT RADIATOR

Item Part number Description
1 8041262 WATER RADIATOR ASSY
2 4935134 OIL LINE
3 8034192 WATER HOSE
4 4863960 WATER HOSE
5 4863962 WATER HOSE
6 8034635 BREATHER PIPE
7 8035527 WATER PIPE
8 8039832 WATER PIPE
9 18087993 CLIP Ø8/16 MM
10 17764892 PIPE CLIP Ø40-60 MM
11 17095524 WASHER
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
13 17091674 WASHER Ø14X27X3,0 MM
14 4935727 PIPE SOCKET
15 10284460 SEAL GASKET Ø10X16 MM
16 16612224 HEXAGON BOLT M14X30 MM
17 17038725 NUT M14
