NEF67TE1X.A001

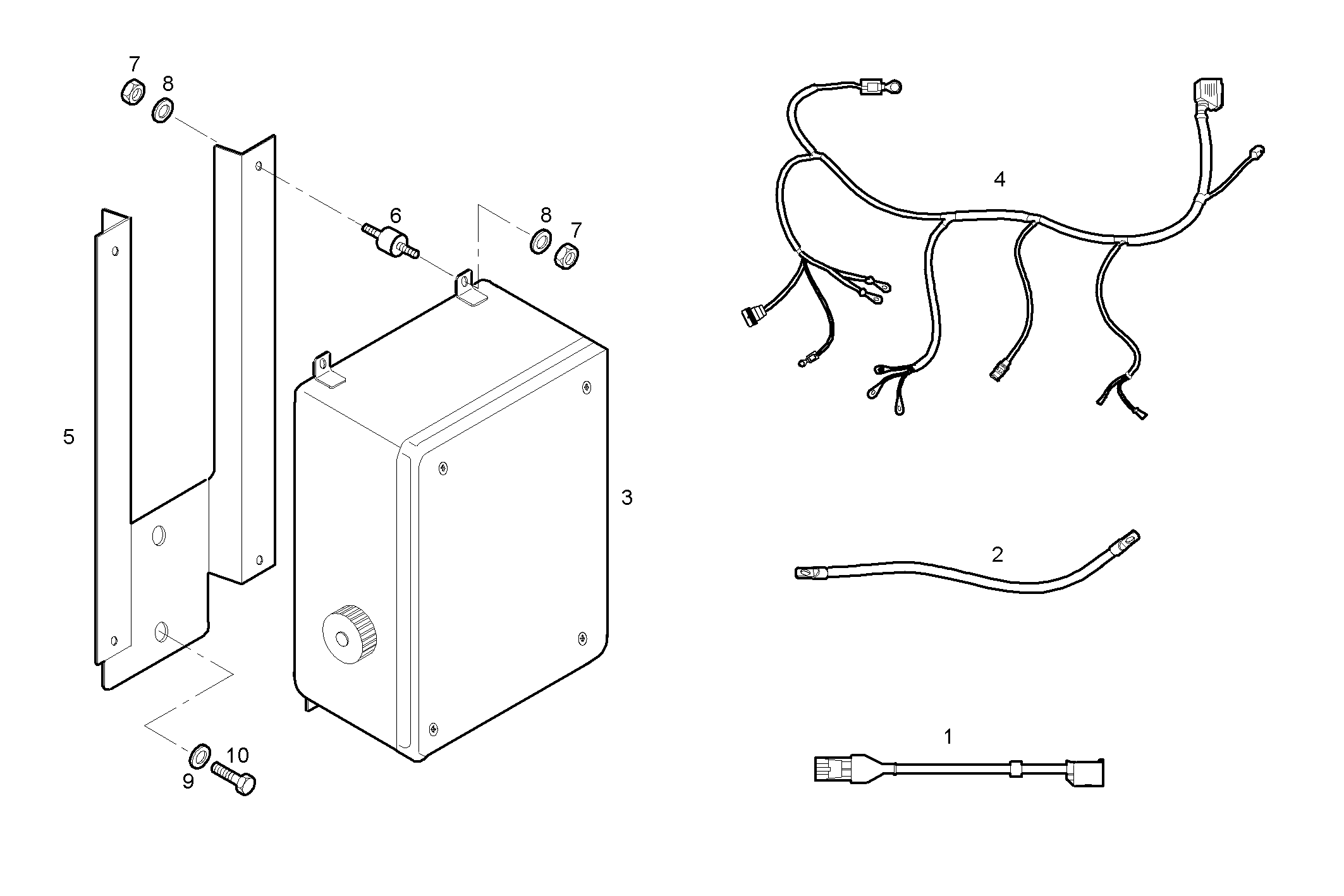

A62905007 CABLES AND FITTING
Item | Part number | Description |
---|---|---|
1 | 8035836 | WIRE/CABLE |
2 | 8031723 | EARTH WIRE L=250 MM - FOR SEA WATER ADAPT. |
3 | 503112099 | SWITCHGEAR 12V |
4 | 503113462 | ENGINE HARNESS [FROM 01/02/06] |
5 | 503112071 | RETAINER |
6 | 4910949 | RUBBER LUG |
7 | 17152725 | NUT M6 |
8 | 17094724 | WASHER Ø6X12 MM |
9 | 17091074 | WASHER Ø12X24X2,8 MM |
10 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
