NEF67TE1X.R981

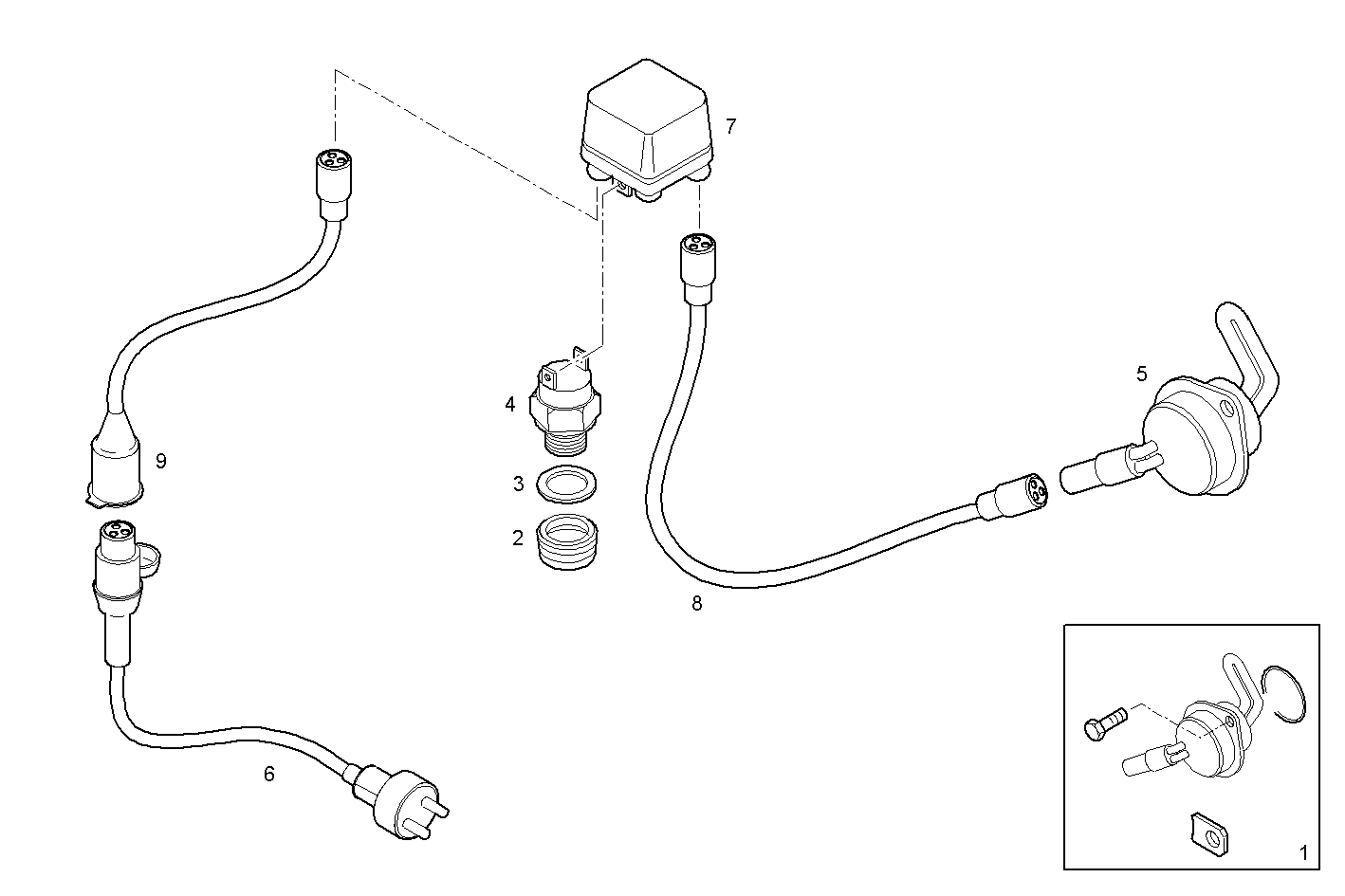

A20040507 WATER PREHEATER DEVICE - 230V - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8094793 | KIT miscellaneus |
| 2 | 8033022 | PIPE SOCKET |
| 3 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 4 | 8038597 | THERMOSWITCH |
| 5 | 8038705 | HEATER |
| 6 | 504084179 | WIRE/CABLE |
| 7 | 8038599 | RELAY 12V |
| 8 | 8038507 | WIRE/CABLE |
| 9 | 503111089 | WIRE/CABLE |
