NEF67TE2A.A006

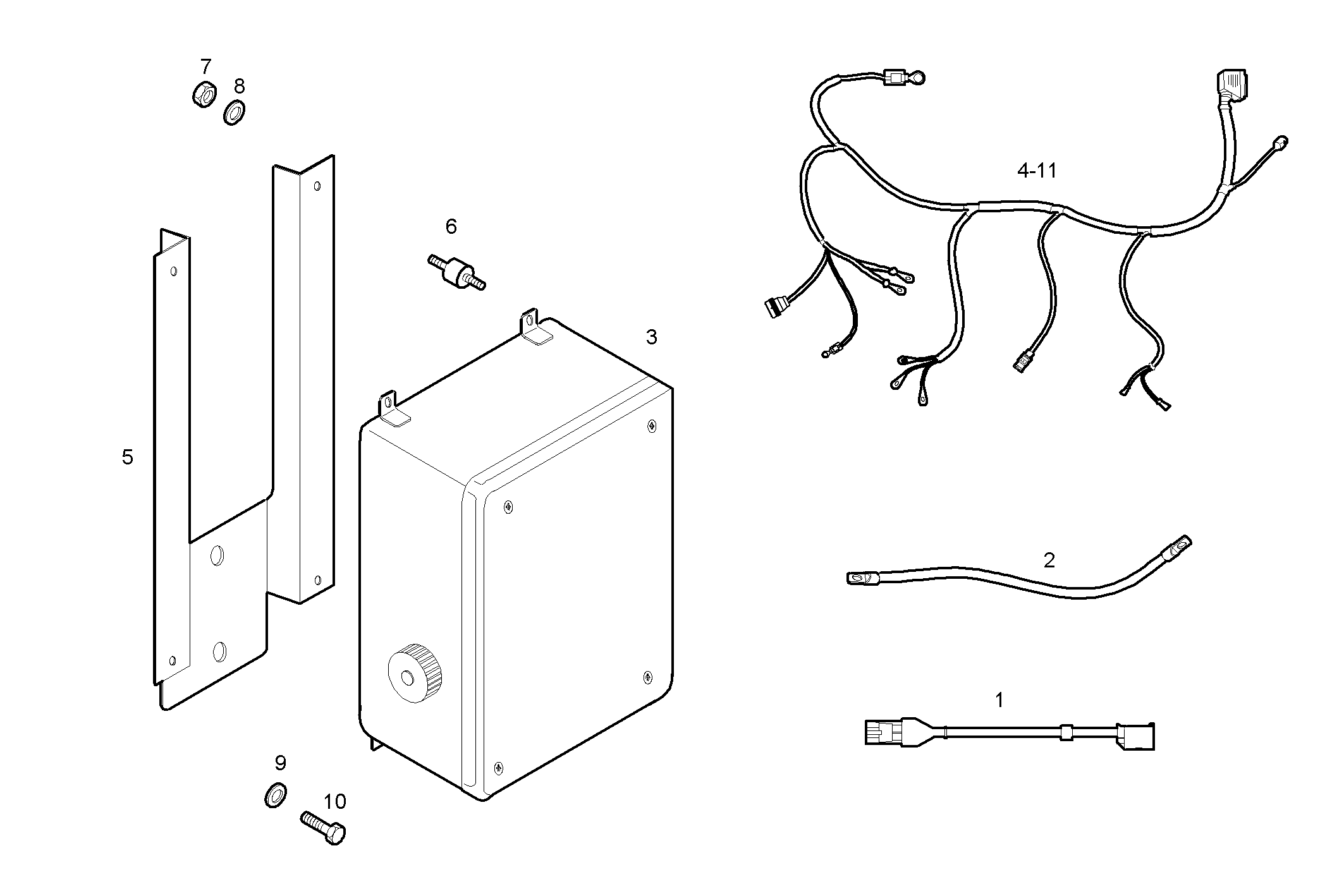

A62905002 CABLES AND FITTING
| Item | Part number | Description |
|---|---|---|
| 1 | 8035835 | ENGINE HARNESS |
| 2 | 8031723 | EARTH WIRE L=250 MM - FOR SEA WATER ADAPT. |
| 3 | 503112111 | SWITCHGEAR 24V |
| 4 | 503112094 | ENGINE HARNESS [UP TO 31/01/06] |
| 5 | 503112071 | RETAINER |
| 6 | 4910949 | RUBBER LUG |
| 7 | 17152721 | NUT M6 |
| 8 | 17094704 | WASHER Ø6X12X1,6 MM |
| 9 | 17091074 | WASHER Ø12X24X2,8 MM |
| 10 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 11 | 503113462 | ENGINE HARNESS [FROM 01/02/06] |
