NEF67TM3A.A550

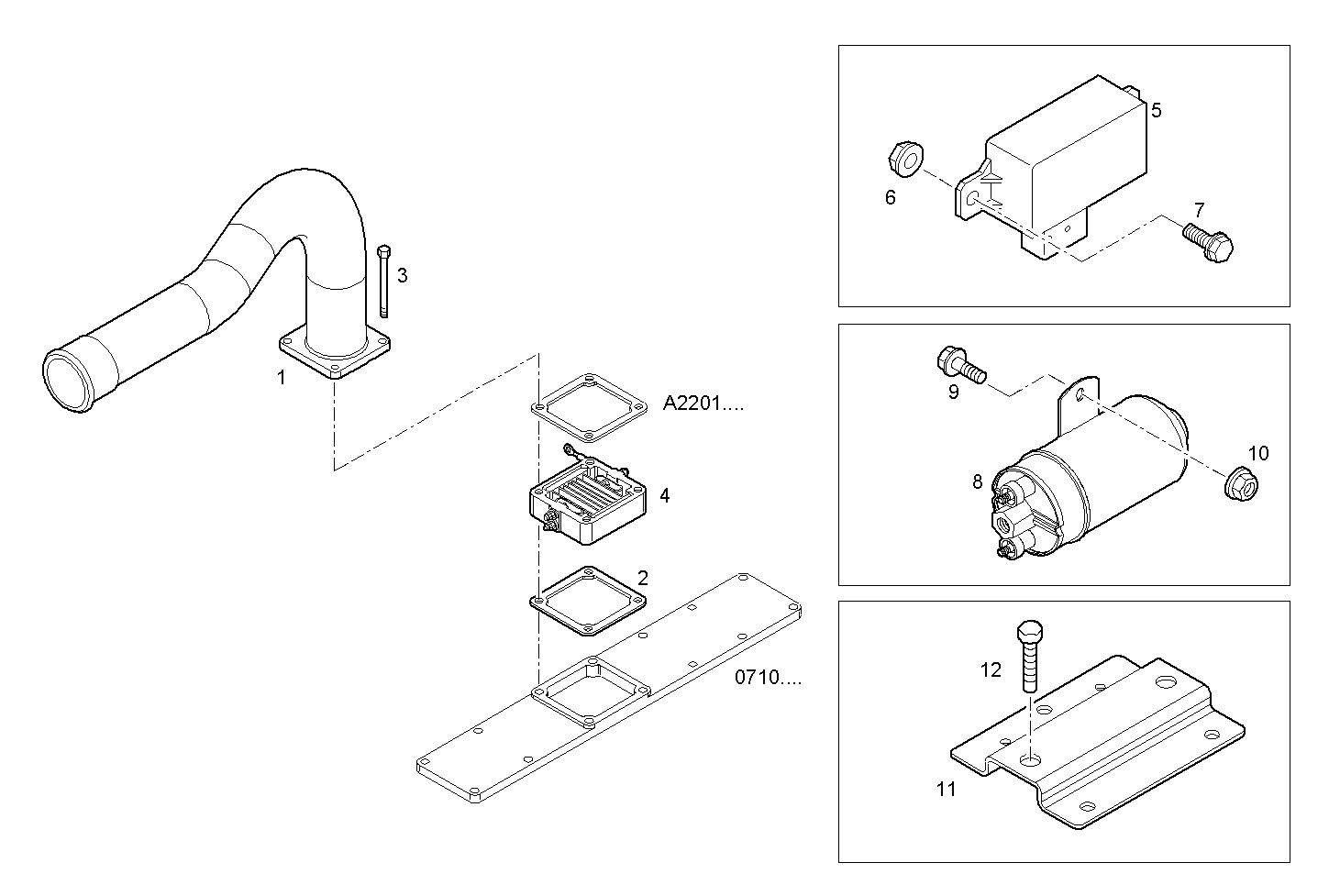

3650.063 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 503115068 | AIR PIPE/DUCT |
| 2 | 4899921 | FLAT ENGINE GASKET |
| 3 | 16592525 | HEXAGON BOLT M8X70 MM |
| 4 | 2831019 | HEATER |
| 5 | 504038587 | ELECTR.CONTR.UNIT 24V |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 18137825 | HEXAGON BOLT M6X16 |
| 8 | 504287310 | RELAY 24v-150a |
| 9 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 10 | 17044725 | HEXAGON NUT M8 |
| 11 | 8040605 | SUPPORT |
| 12 | 16677735 | HEXAGON BOLT M12X25 MM |
