PPVZ2883X*Q400

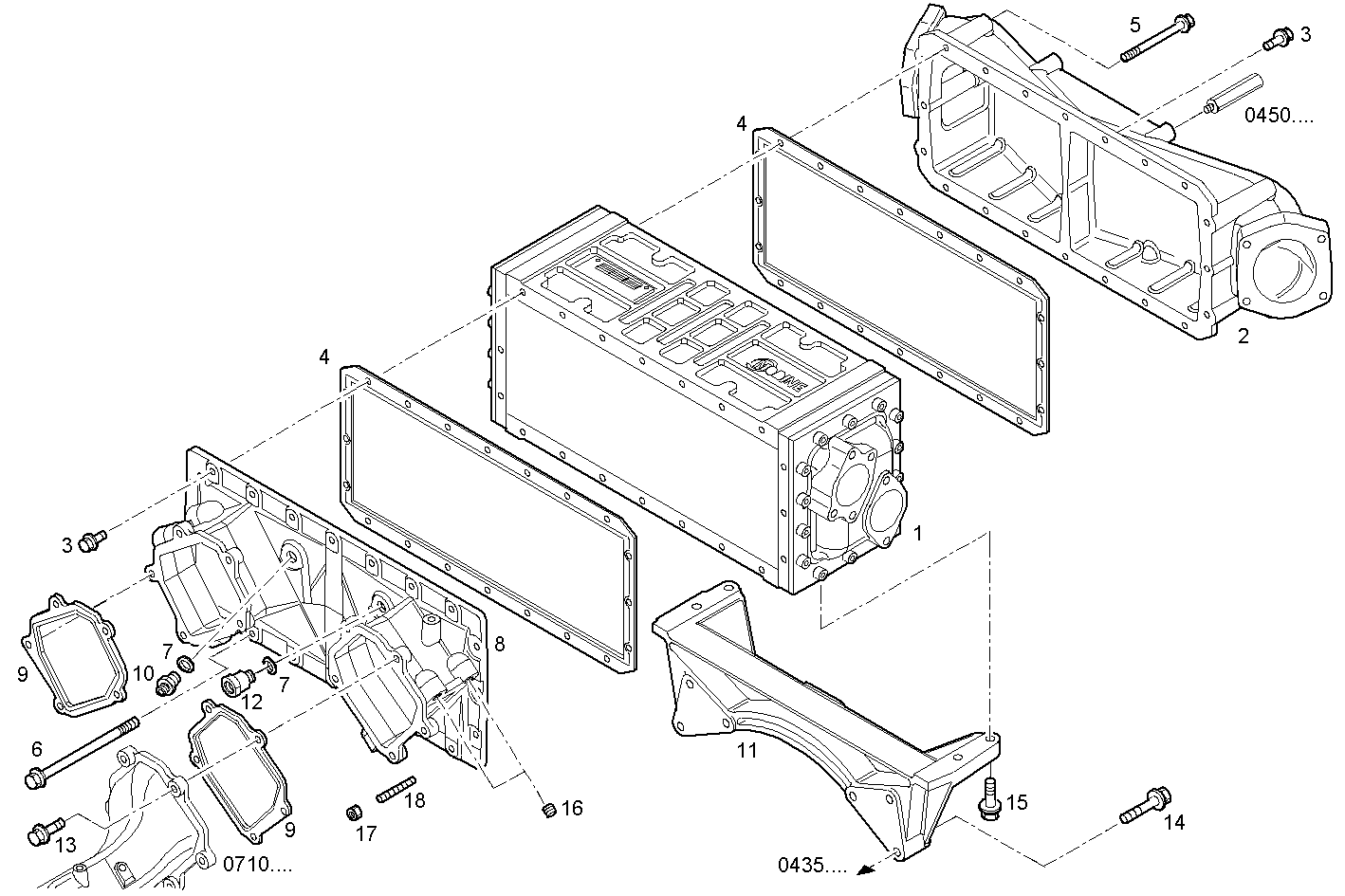

2460.041 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 504068676 HEAT EXCHANGER ASSY
2 504043404 AIR HOOD
3 504049512 HEXAGON BOLT M8X1,25X25 MM
4 504044894 GASKET
5 504049516 HEXAGON BOLT M8X1,25X120 MM
6 504057396 HEXAGON BOLT M8X1,25X215
7 99489019 WASHER Ø16X24 MM SP=1,5 MM
8 504074096 AIR HOOD
9 504048947 GASKET
10 504044568 THREADED UNION M16X1,5-7/16"
11 504086170 SUPPORT
12 504044567 THREADED UNION
13 18139424 HEXAGON BOLT M10X20 MM
14 16587825 HEXAGON BOLT M10X1,5X60 MM
15 16587325 HEXAGON BOLT M10X35 MM
16 17847870 THREADED INSERT M8
17 17044725 HEXAGON NUT M8
18 16729424 STUD M8X1,25X25
