PPVZ2883X*Q400

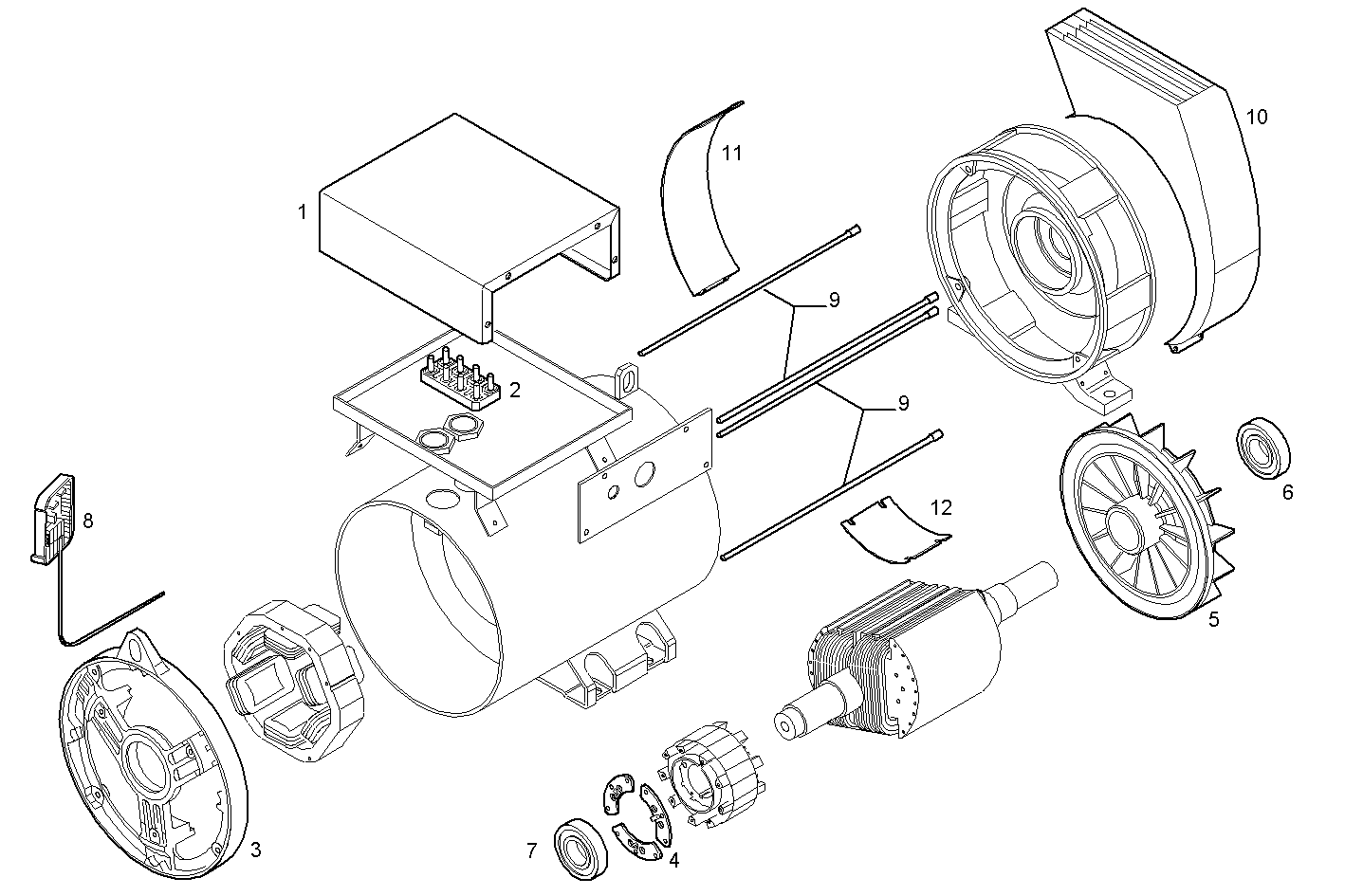

760330.000 ELECTRIC MACHINE (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 8097506 | EL.MACHINE COVER |
| 2 | 8097507 | EL.MACH.CONNECTION BLOCK |
| 3 | 8097508 | EL.MACHINE COVER |
| 4 | 8093763 | EL.MACH.DIODE BRIDGE |
| 5 | 8097509 | GENERATOR FAN |
| 6 | 8097510 | EL.MACHINE BEARING |
| 7 | 8093776 | EL.MACHINE BEARING |
| 8 | 8094731 | EL.MACHINE VOLTAGE REGUL. |
| 9 | 8097511 | TIE ROD |
| 10 | 504128476 | PROTECTION |
| 11 | 8097512 | PROTECTION |
| 12 | 8097513 | PROTECTION |
