PPVZ2883X*Q440

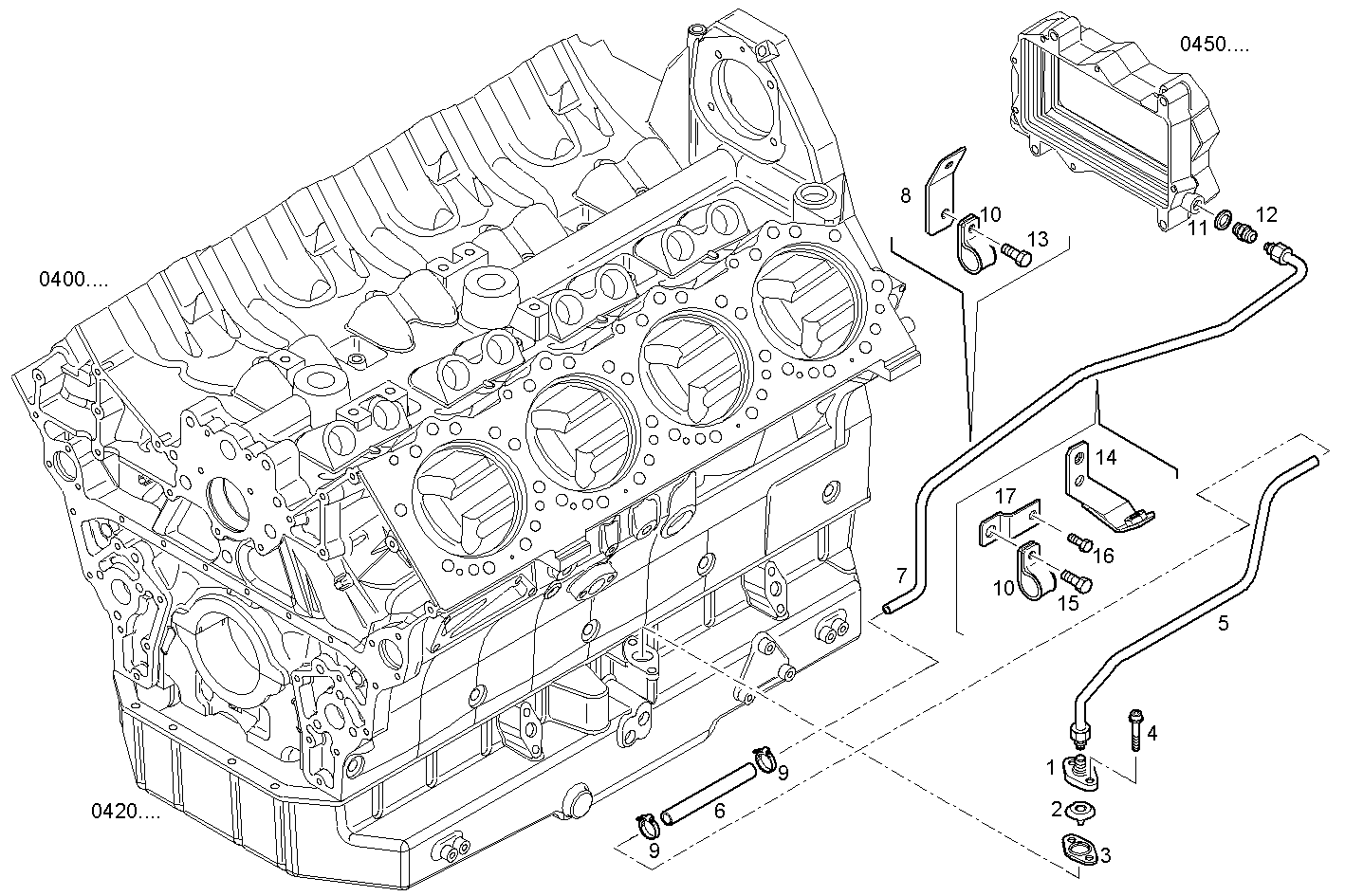

0450.179/03 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 504075263 PIPE SOCKET
2 504036532 VALVE
3 504075235 FLAT ENGINE GASKET
4 16673735 HEXAGON BOLT M8X25 MM
5 504090876 PIPE
6 504085915 RUBBER SLEEVE
7 504090877 PIPE
8 504090878 RETAINER
9 18088392 CLIP Ø16/25 MM
10 17316592 PIPE CLIP
11 98474309 WASHER Ø16X24 MM SP=1,9 MM
12 504081274 THREADED UNION M16X1,5 - M18X1,5
13 18138325 HEXAGON BOLT M8X16 MM
14 504093757 SUPPORT
15 16586225 HEXAGON BOLT M8X1,25X16 MM
16 16597925 HEXAGON BOLT M8X14 MM
17 99481827 FASTENING BRACKET
