PPVZ2883X*Q440

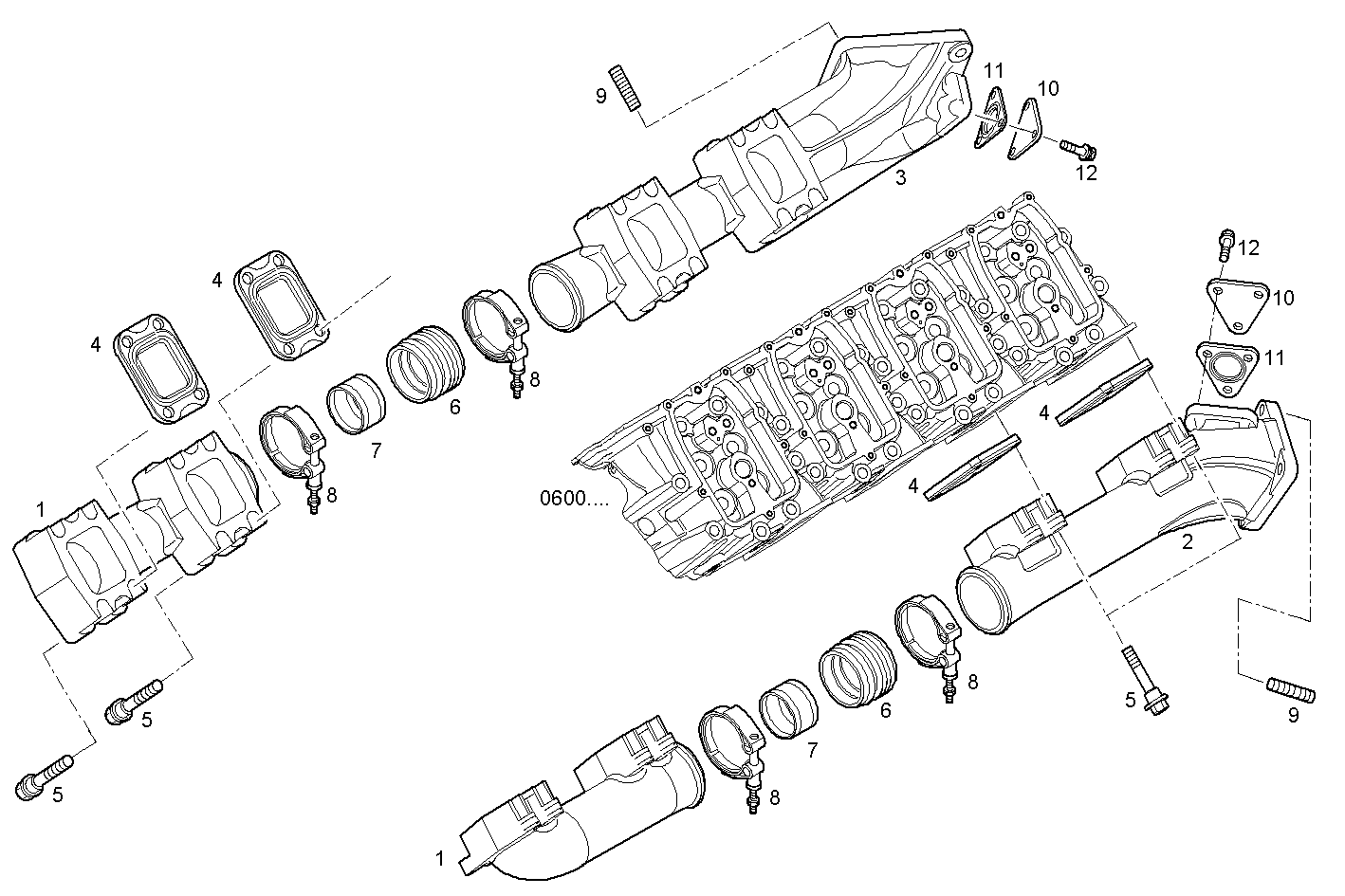

0760.148 EXHAUST MANIFOLD
Item | Part number | Description |
---|---|---|
1 | 504055335 | EXHAUST MANIFOLD front side |
2 | 504219552 | EXHAUST MANIFOLD LEFT |
3 | 504219554 | EXHAUST MANIFOLD RIGHT |
4 | 504082422 | EXH. MANIFOLD GKT |
5 | 504224027 | HEXAGON BOLT M10X1,5 |
6 | 504035132 | CONNECTOR SLEEVE |
7 | 504034976 | RING |
8 | 504073805 | CLIP |
9 | 99463138 | STUD M12X1,75X48 MM |
10 | 504093971 | COVER |
11 | 504054952 | GASKET |
12 | 16600277 | HEXAGON BOLT M8X18 MM |
