PPVZ2883X*Q440

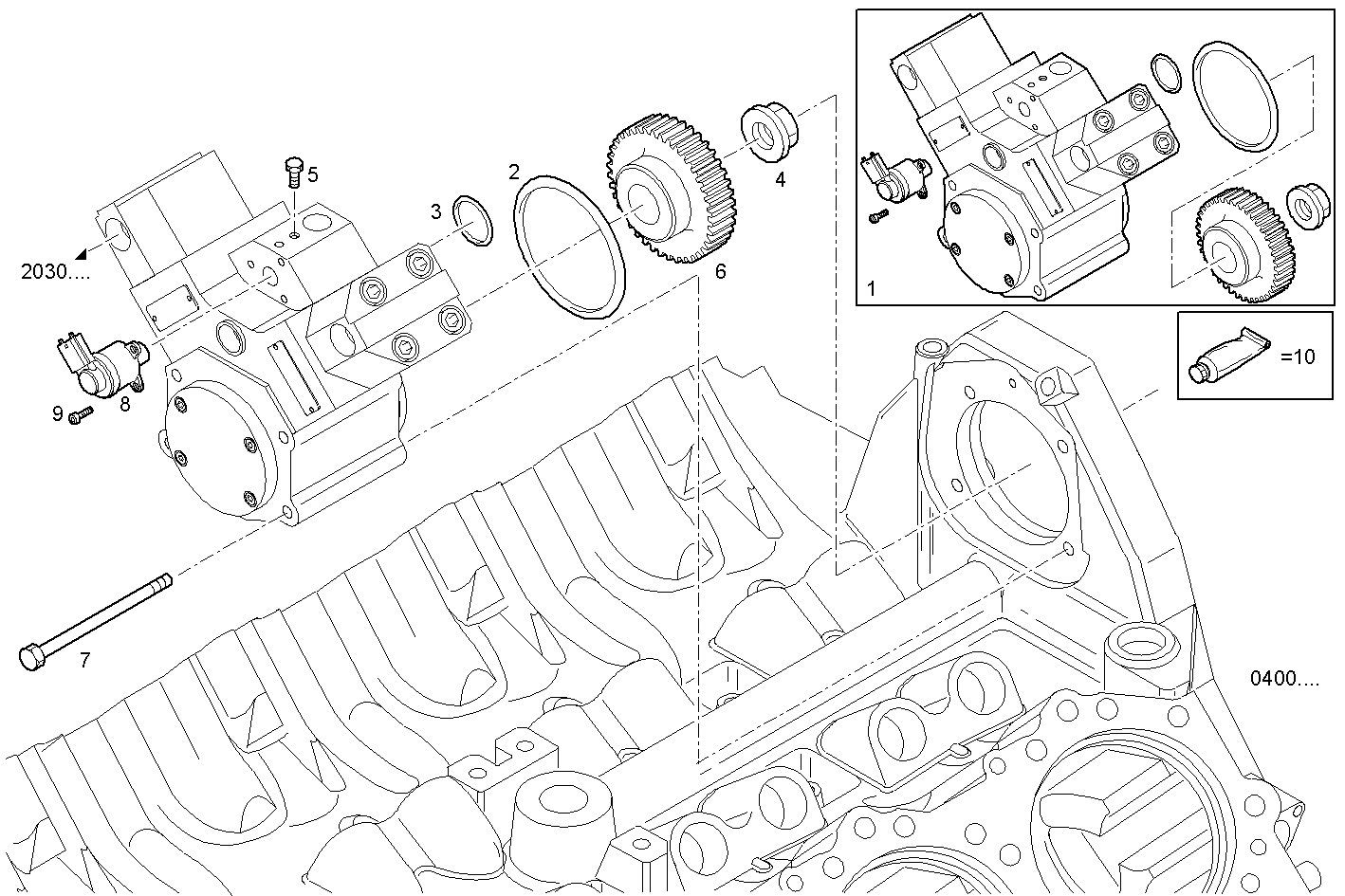

2010.036 FUEL PUMP - high pressure
| Item | Part number | Description |
|---|---|---|
| 1 | 504195329 | HIGH PRESSURE PUMP ASSY |
| 2 | 504060294 | SEAL GASKET |
| 3 | 504060293 | SEAL GASKET |
| 4 | 500392673 | HEXAGON NUT M24X1,5 |
| 5 | 16592225 | HEXAGON BOLT M8X55 MM |
| 6 | 504036032 | GEAR |
| 7 | 16677435 | HEXAGON BOLT M10X1,5X130 MM |
| 8 | 8094794 | GOVERNOR/REGULATOR |
| 9 | 8094795 | SOCKET-HEAD SCREW |
| 10 | 2992504 | ADHESIVE/STICKER LOCTITE |
