PPVZ2883X*Q440

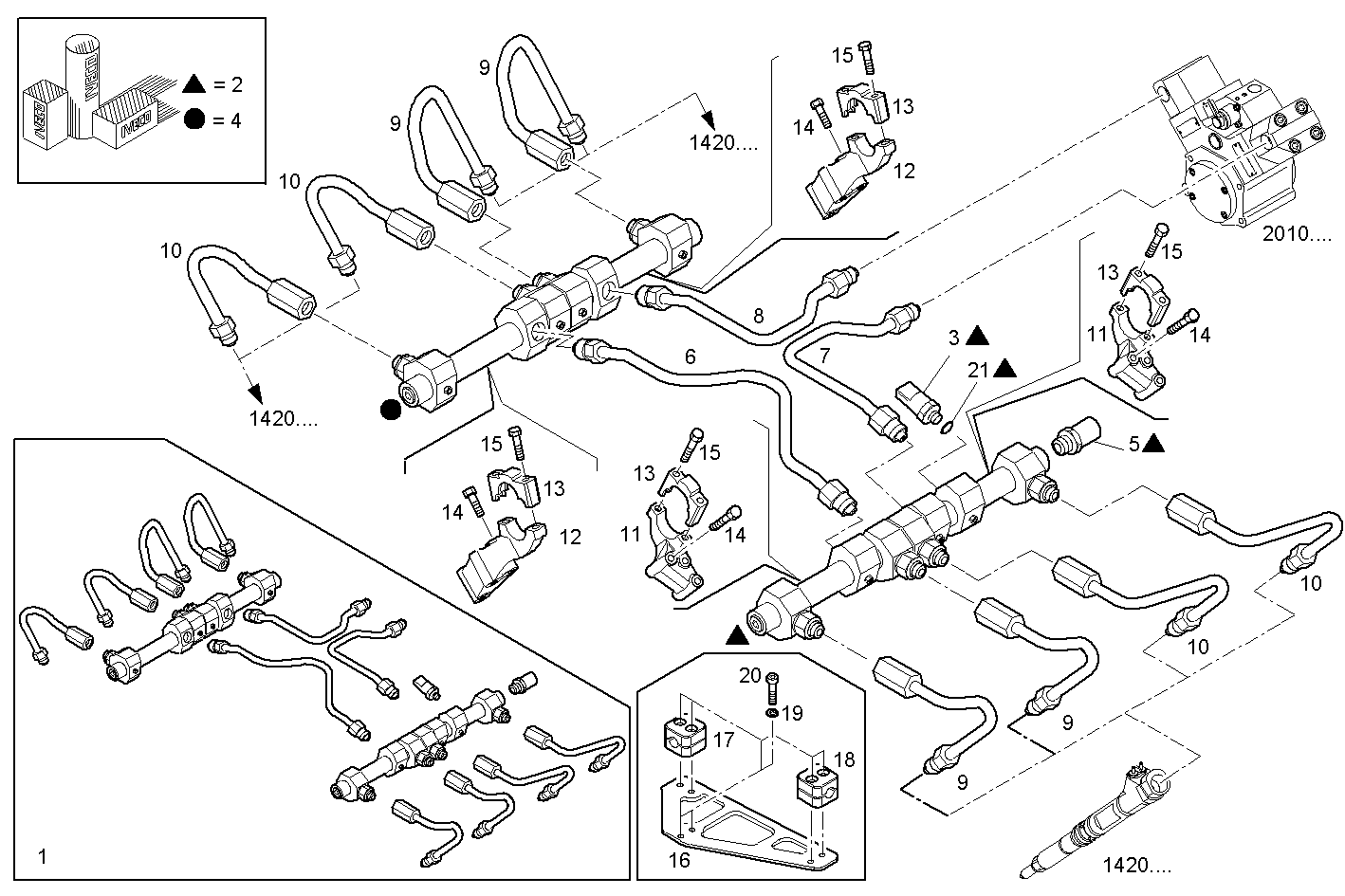

2030.204 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 504215520 INJECTION LINE SET ASSY
2 504215523 HYDRAULIC CYLINDER LEFT ASSY
3 504043154 SENSOR
4 504215527 HYDRAULIC CYLINDER RIGHT ASSY
5 504043158 VALVE
6 504215536 FUEL LINE
7 504215534 FUEL LINE
8 504215535 FUEL LINE
9 504215530 FUEL LINE
10 504215533 FUEL LINE
11 504080479 SUPPORT RIGHT ASSY
12 504080488 SUPPORT LEFT ASSY
13 504039185 COVER
14 16586925 HEXAGON BOLT M8X50 MM
15 16586725 HEXAGON BOLT M8X1.25X40 MM
16 504097534 SUPPORT
17 504097548 CHOCK
18 504097549 CHOCK
19 17094611 WASHER
20 16689425 SOCKET-HEAD SCREW
21 504120835 SEAL GASKET
