PPVZ2883X*Q440

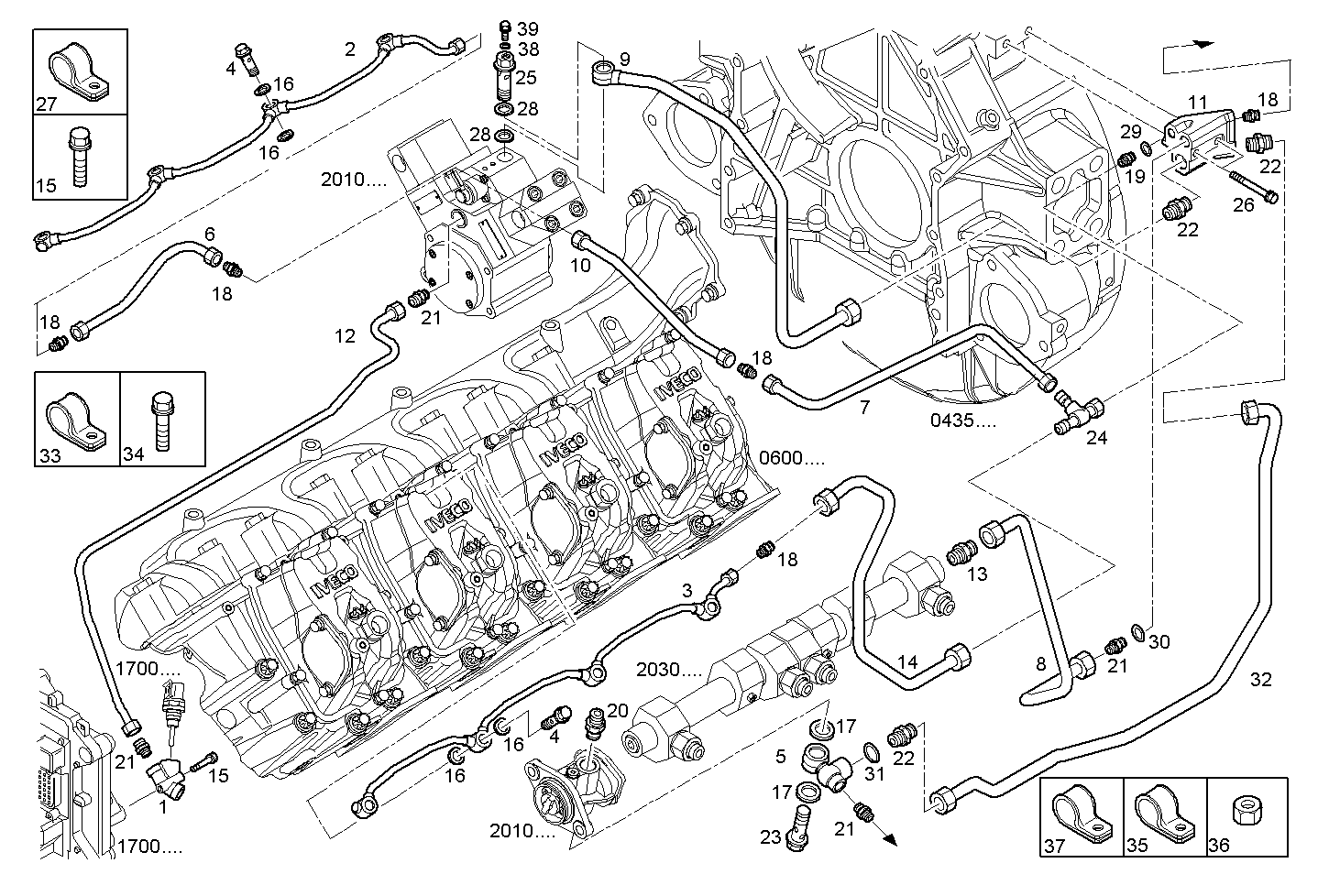

2030.206 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 504065705 PIPE SOCKET
2 504071550 FUEL LINE RIGHT
3 504071551 FUEL LINE LEFT
4 504034362 SCREW CONNECTOR M10X1,5
5 504060320 PIPE SOCKET
6 504079220 FUEL LINE fuel return line
7 504074221 FUEL LINE fuel return line
8 504074227 FUEL LINE fuel return line
9 504074230 FUEL LINE fuel return line
10 504079223 FUEL LINE fuel return line
11 504074653 CHOCK
12 504072853 FUEL LINE
13 504074830 PIPE SOCKET M18
14 504074224 FUEL LINE fuel return line
15 16592225 HEXAGON BOLT M8X55 MM
16 98474305 WASHER Ø10X17 MM SP=2,3
17 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
18 16501611 PIPE SOCKET M14X1,5
19 16500114 THREADED UNION M12X1,5 - M14X1,5
20 16500215 THREADED UNION M14X1,5/M16X1,5
21 504081274 THREADED UNION M16X1,5 - M18X1,5
22 16500514 THREADED UNION M22X1,5 - M26X1,5
23 4864085 SCREW CONNECTOR M18X1,5
24 16504614 T-COUPLING M14X1,5
25 504121629 SCREW CONNECTOR
26 16597925 HEXAGON BOLT M8X14 MM
27 10450090 PIPE CLIP Ø8 MM
28 99469378 WASHER Ø22X30 MM
29 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
30 99489019 WASHER Ø16X24 MM SP=1,5 MM
31 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
32 504076898 FUEL LINE
33 17316592 PIPE CLIP
35 10450590 PIPE CLIP Ø18 MM
36 17044735 NUT M8
37 17316690 FASTENING BRACKET Ø20,5 MM
38 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
39 504144621 THREADED PLUG M12X1
