PPVZ2883X*Q440

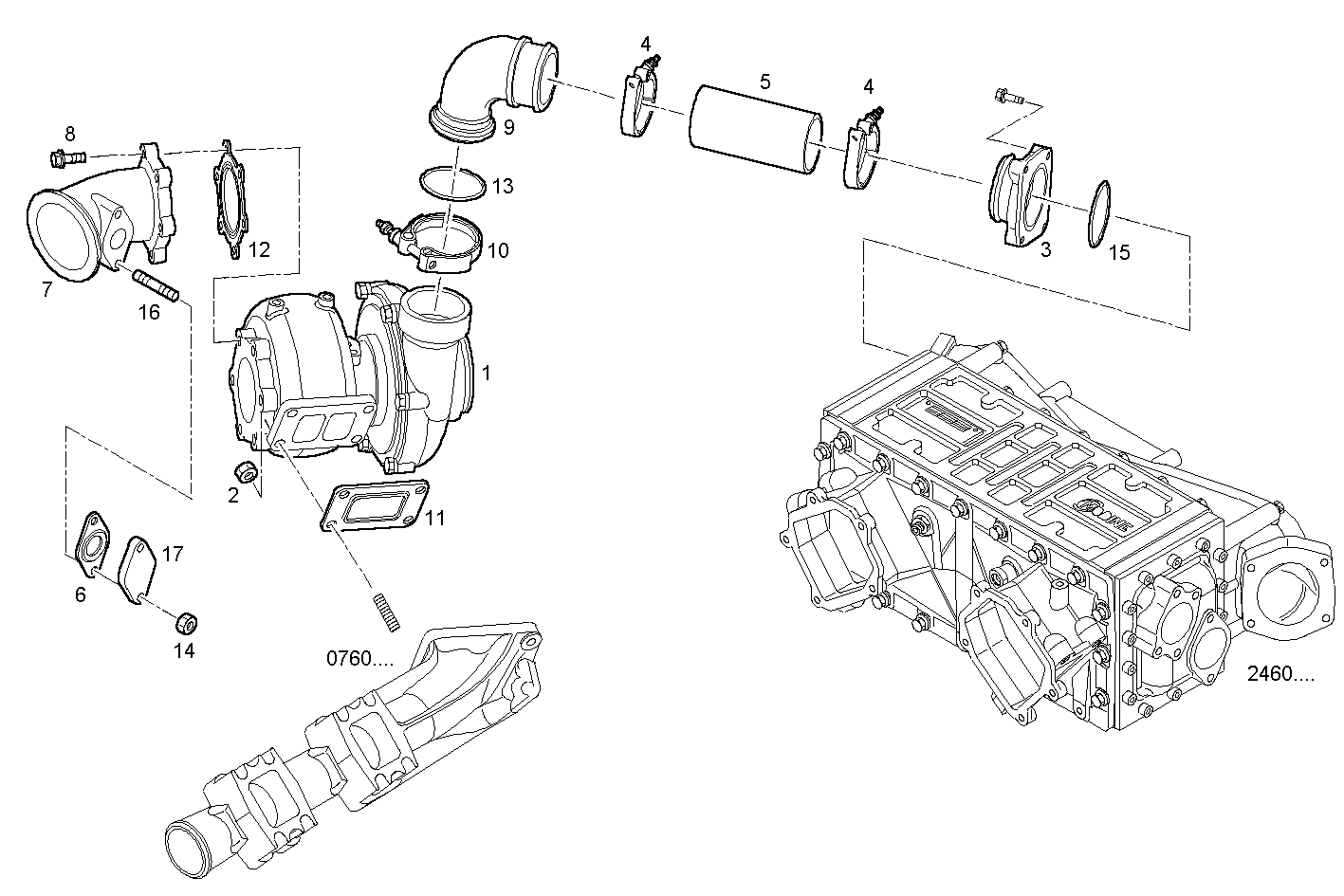

2400.175/02 TURBOCHARGER
Item | Part number | Description |
---|---|---|
1 | 504064263 | TURBOCHARGER RIGHT |
2 | 99463139 | HEXAGON NUT M10X1,5 |
3 | 504048805 | FLANGE |
4 | 17769091 | CLIP |
5 | 504104715 | RUBBER SLEEVE |
6 | 504054953 | GASKET |
7 | 504058566 | EXHAUST PIPE |
8 | 99453959 | SCREW |
9 | 504088467 | PIPE RIGHT |
10 | 4800661 | CLIP Ø 75 mm. |
11 | 504103435 | GASKET |
12 | 504056723 | GASKET |
13 | 17284481 | O-RING Ø58,4 MM SP=2,6 MM [from ...] |
14 | 17044725 | HEXAGON NUT M8 |
15 | 17291381 | O-RING Ø98,02 MM SP=3,53 MM |
16 | 16729434 | STUD M8X25 MM |
17 | 504094021 | COVER |
