PPVZ2883X*Q440

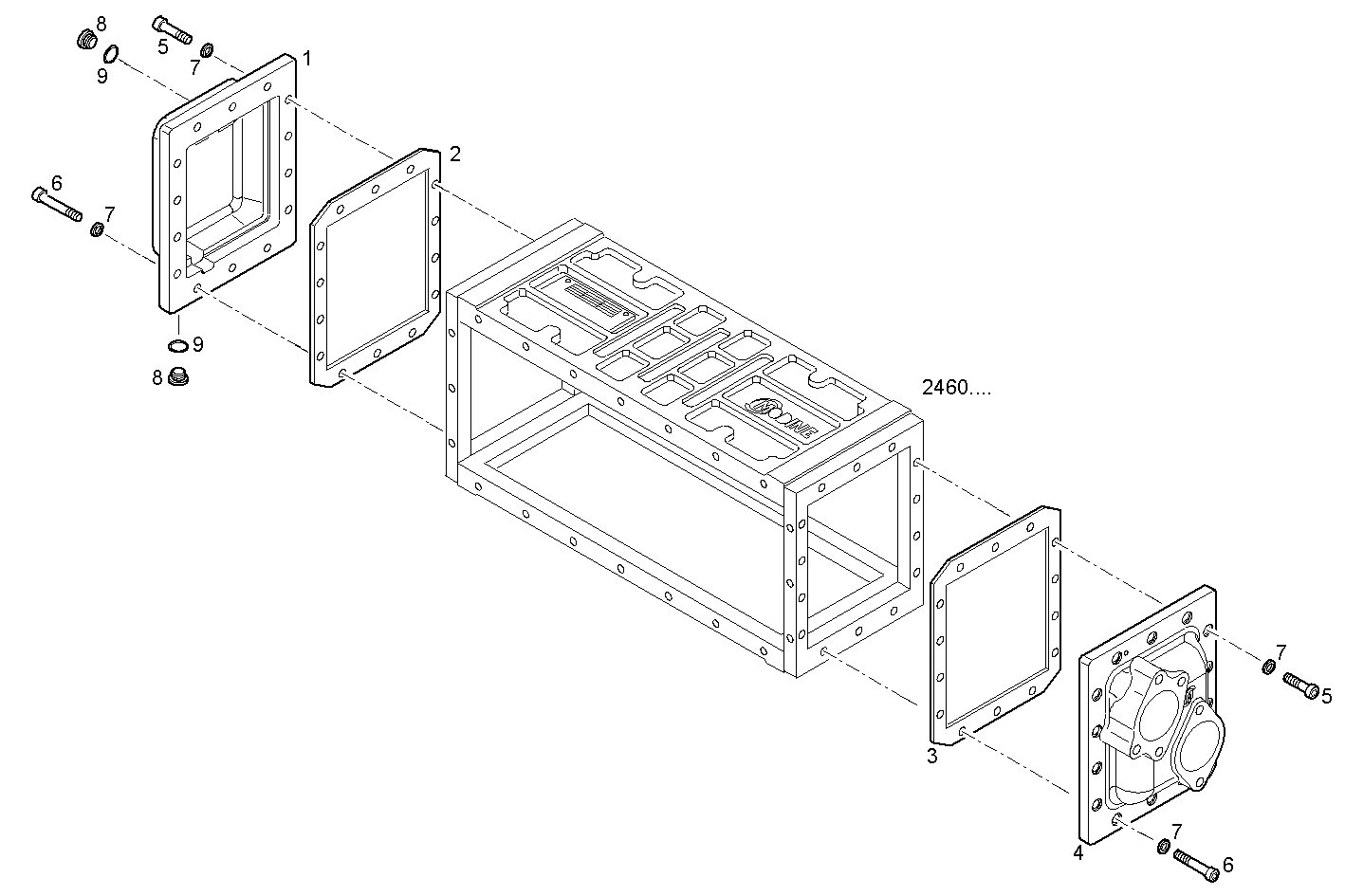

2461.006 AIR - WATER HEAT EXCHANGER (COMPONENTS)
Item | Part number | Description |
---|---|---|
1 | 8094922 | COVER |
2 | 8094924 | FLAT ENGINE GASKET |
3 | 8094925 | FLAT ENGINE GASKET |
4 | 8094923 | COVER |
5 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
6 | 16691024 | CYLIND-HEAD SCREW M8X45 MM |
7 | 17096824 | WASHER Ø8,40X15 MM |
8 | 10300640 | LOCK PLUG M14X1,5 |
9 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
