PPVZ2883X*Q440

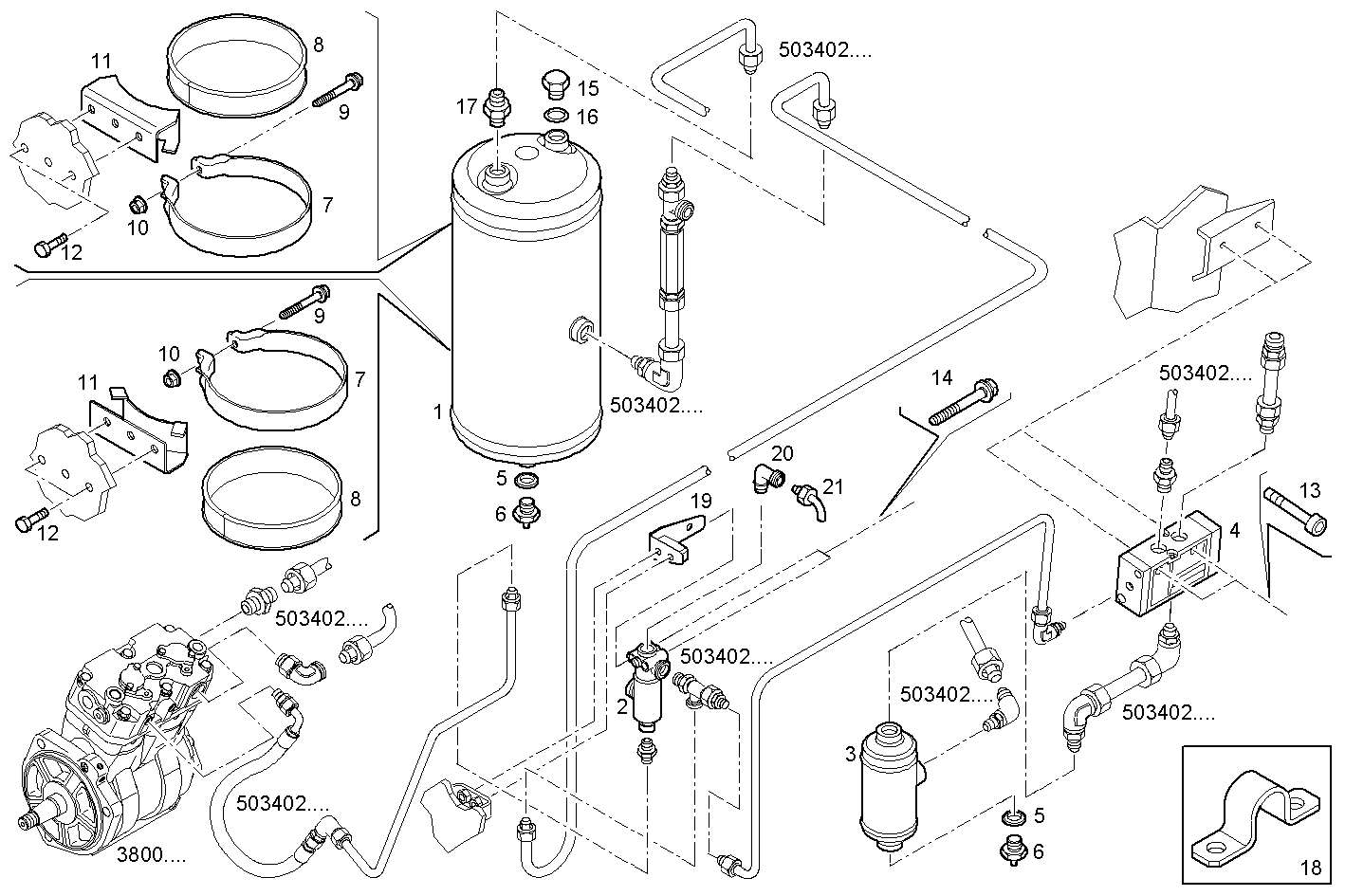

503402.000/01 PNEUMATIC SYSTEM
| Item | Part number | Description |
|---|---|---|
| 1 | 98489292 | TANK 15 LITERS |
| 2 | 504088165 | VALVE |
| 3 | 5006200567 | TANK 0,5 LITERS |
| 4 | 504062514 | VALVE |
| 5 | 4712012 | SEAL GASKET Ø22 MM |
| 6 | 504090399 | VALVE |
| 7 | 2519815 | CLIP |
| 8 | 41006908 | RUBBER RING |
| 9 | 98435104 | SCREW M10X15 MM |
| 10 | 16750325 | HEXAGON NUT M10 |
| 11 | 41028666 | BRACKET |
| 12 | 16677735 | HEXAGON BOLT M12X25 MM |
| 13 | 16689834 | CYLIND-HEAD SCREW M6X50 MM |
| 14 | 16592525 | HEXAGON BOLT M8X70 MM |
| 15 | 16992611 | THREADED PLUG M22X1,5 |
| 16 | 16508460 | WASHER 22x27x1,5 |
| 17 | 41031570 | THREADED UNION M22X1,5/M18X1,5 |
| 18 | 504067375 | FASTENING BRACKET |
| 19 | 504088167 | FASTENING BRACKET |
| 20 | 504088503 | ELBOW COUPLING |
| 21 | 504088166 | AIR PIPE/DUCT |
