PPVZ2883X*Q440

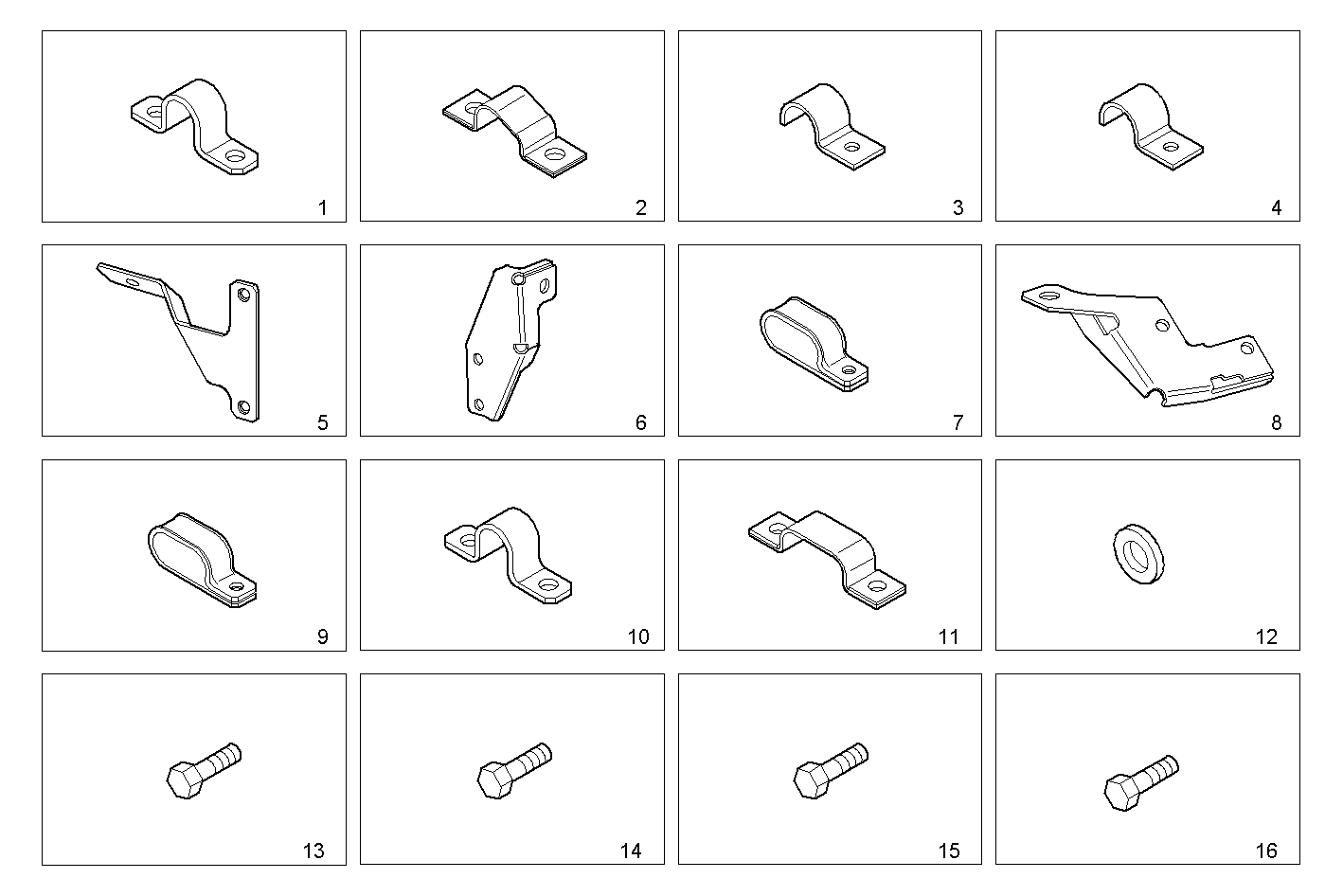

503402.000/03 PNEUMATIC SYSTEM
Item |
Part number |
Description |
1 |
504067375 |
FASTENING BRACKET |
2 |
504067382 |
FASTENING BRACKET |
3 |
18053701 |
FASTENING BRACKET |
4 |
18053901 |
FASTENING BRACKET |
5 |
504068535 |
FASTENING BRACKET |
6 |
504068536 |
FASTENING BRACKET |
7 |
17315492 |
FASTENING BRACKET |
8 |
504207804 |
FASTENING BRACKET |
9 |
17315792 |
FASTENING BRACKET |
10 |
504065992 |
RETAINER |
11 |
504067370 |
FASTENING BRACKET |
12 |
1708857C |
WASHER Ø6X12 MM |
13 |
16609725 |
HEXAGON BOLT M6X14 MM |
14 |
16589825 |
HEXAGON BOLT M16X35 MM |
15 |
16597925 |
HEXAGON BOLT M8X14 MM |
16 |
16596924 |
HEXAGON BOLT M6X10 MM |
