PPVZ2883X*Q440

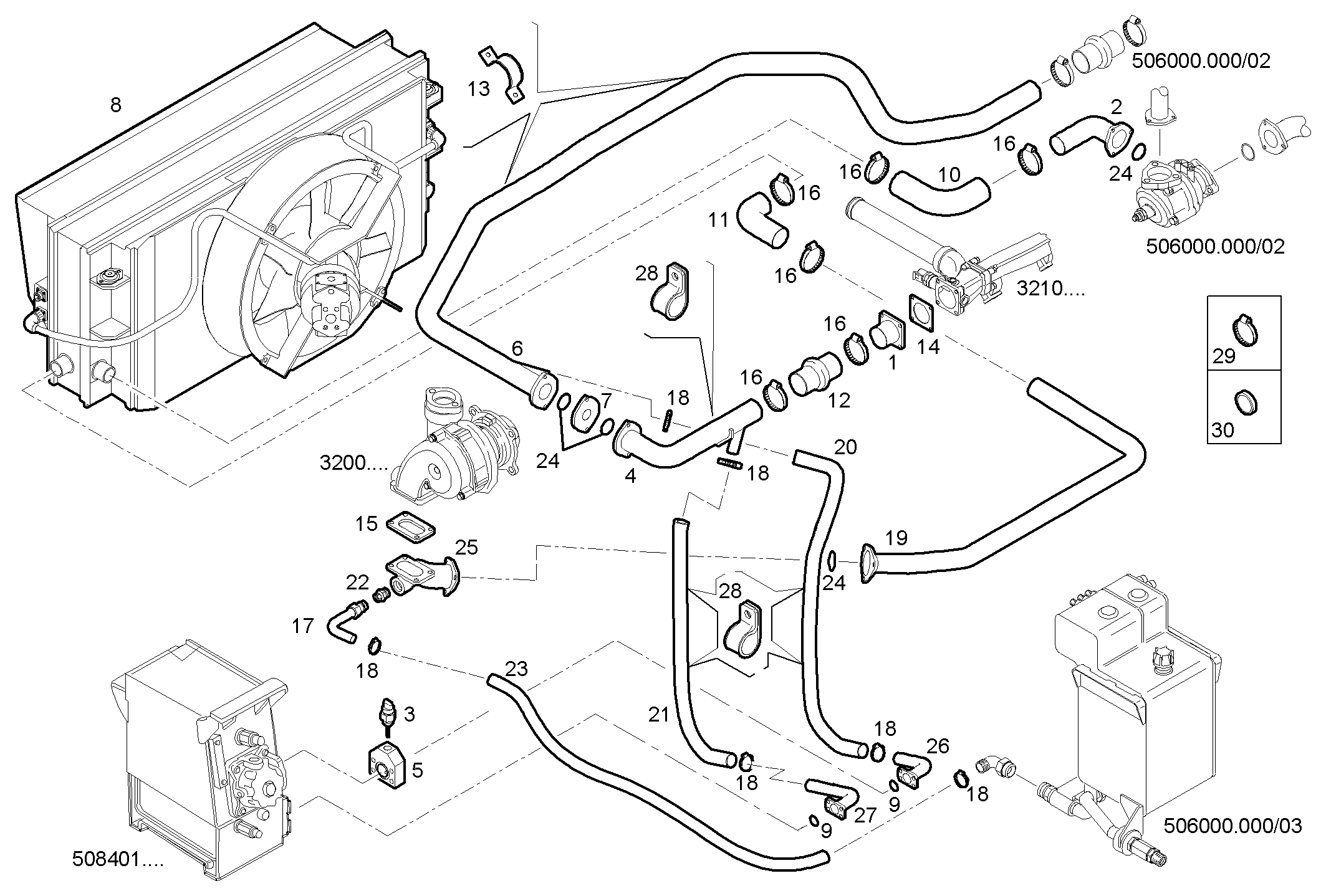

506000.000/01 COOLING SYSTEM

Iveco/FPT COOLING SYSTEM

Item Part number Description
1 504059987 WATER PIPE
2 504059994 WATER PIPE
3 504046224 TEMP. TRANSMITTER 3/4"
4 504088217 WATER PIPE
5 504068595 FLANGE
6 504060011 WATER PIPE
7 504066721 SHUTTER
8 504193114 WATER RADIATOR ASSY (SEE PL 506000.000/05)
9 17283181 O-RING Ø37,77 MM SP=2,62 MM
10 504065580 WATER HOSE
11 504065582 WATER HOSE
12 93165331 WATER HOSE Ø60 MM
13 504065990 FASTENING BRACKET
14 504065726 FLAT ENGINE GASKET
15 504065725 FLAT ENGINE GASKET
16 41042201 CLIP
17 504074071 WATER PIPE
18 18088192 CLIP m10-16
19 504085970 WATER PIPE
20 504076201 WATER HOSE Ø35 MM
21 504076200 WATER HOSE Ø35 MM
22 504074267 THREADED UNION
23 97108496 WATER HOSE Ø35 MM
24 17285181 O-RING Ø69,52 MM SP=2,62 MM
25 504086021 WATER PIPE
26 504076199 WATER PIPE
27 504088035 WATER PIPE
28 504088039 FASTENING BRACKET
29 504167095 CLIP
30 504154201 WASHER
