PPVZ2883X*Q440

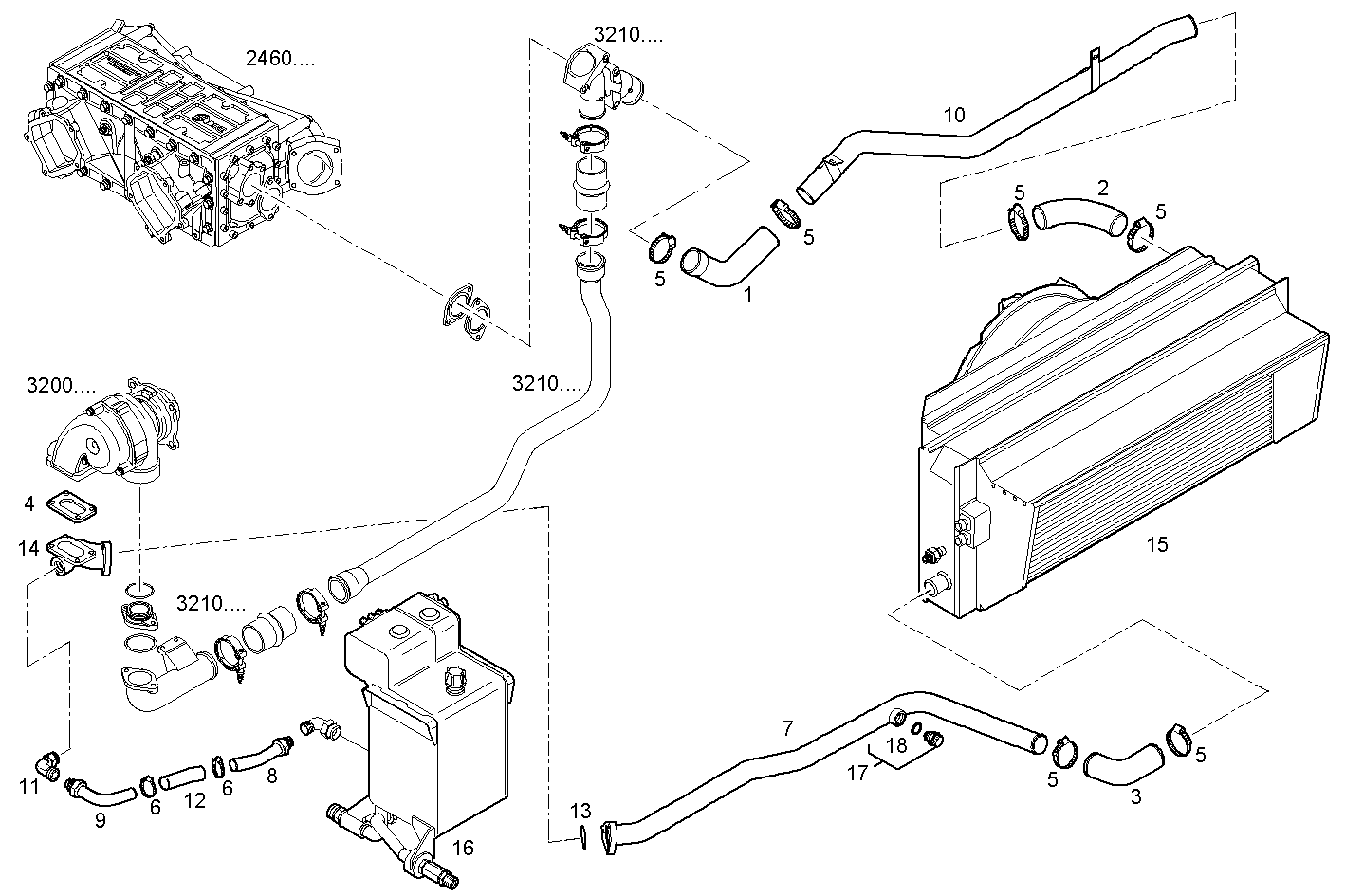

506000.000/03 COOLING SYSTEM

Iveco/FPT COOLING SYSTEM

Item Part number Description
1 504106386 WATER HOSE [FROM # ……]
2 504090634 WATER HOSE
3 504065582 WATER HOSE
4 504065725 FLAT ENGINE GASKET
5 41042201 CLIP
6 18088192 CLIP m10-16
7 504085952 WATER PIPE
8 504074066 WATER PIPE
9 504074071 WATER PIPE
10 504074072 WATER PIPE
11 504074265 ELBOW COUPLING
12 97108496 WATER HOSE Ø35 MM
13 17285181 O-RING Ø69,52 MM SP=2,62 MM
14 504086021 WATER PIPE
15 504048487 WATER RADIATOR ASSY (SEE PL 506000.000/05)
16 504047125 EXPANSION TANK ASSY (SEE PL 506000.000/05)
17 504053131 PLUG
18 18064760 GASKET Ø30X36 MM
