PPVZ2883X*Q440

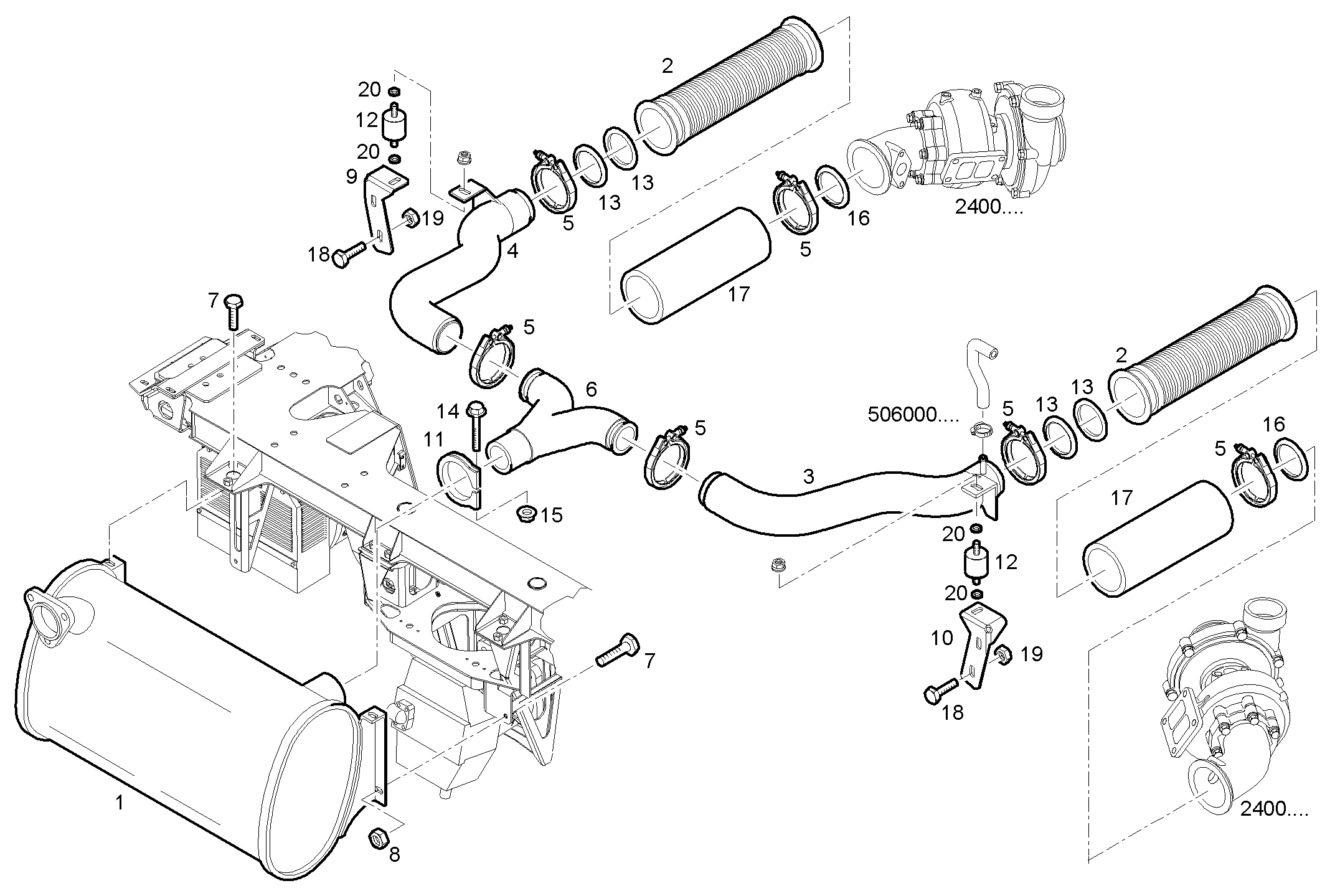

507149.000 EXUAUST SYSTEM
| Item |
Part number |
Description |
|
1 |
504047006 |
SILENCER |
|
2 |
504047109 |
HOSE |
|
3 |
504047114 |
EXHAUST PIPE LEFT |
|
4 |
504047138 |
EXHAUST PIPE RIGHT |
|
5 |
504047467 |
CLIP |
|
6 |
504047468 |
EXHAUST PIPE |
|
7 |
16677935 |
HEXAGON BOLT |
|
8 |
16750335 |
HEXAGON NUT |
|
9 |
504061791 |
RETAINER RIGHT |
|
10 |
504063834 |
RETAINER LEFT |
|
11 |
42075779 |
CLIP |
|
12 |
500362822 |
RUBBER PAD |
|
13 |
504066506 |
RING |
|
14 |
16599125 |
HEXAGON BOLT M10X130 MM |
|
15 |
16750325 |
HEXAGON NUT M10 |
|
16 |
504071304 |
RING |
|
17 |
504075012 |
PROTECTION |
|
18 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
19 |
16750225 |
HEXAGON NUT M8 |
|
20 |
9603945980 |
WASHER |
