PPVZ2883X*Q440

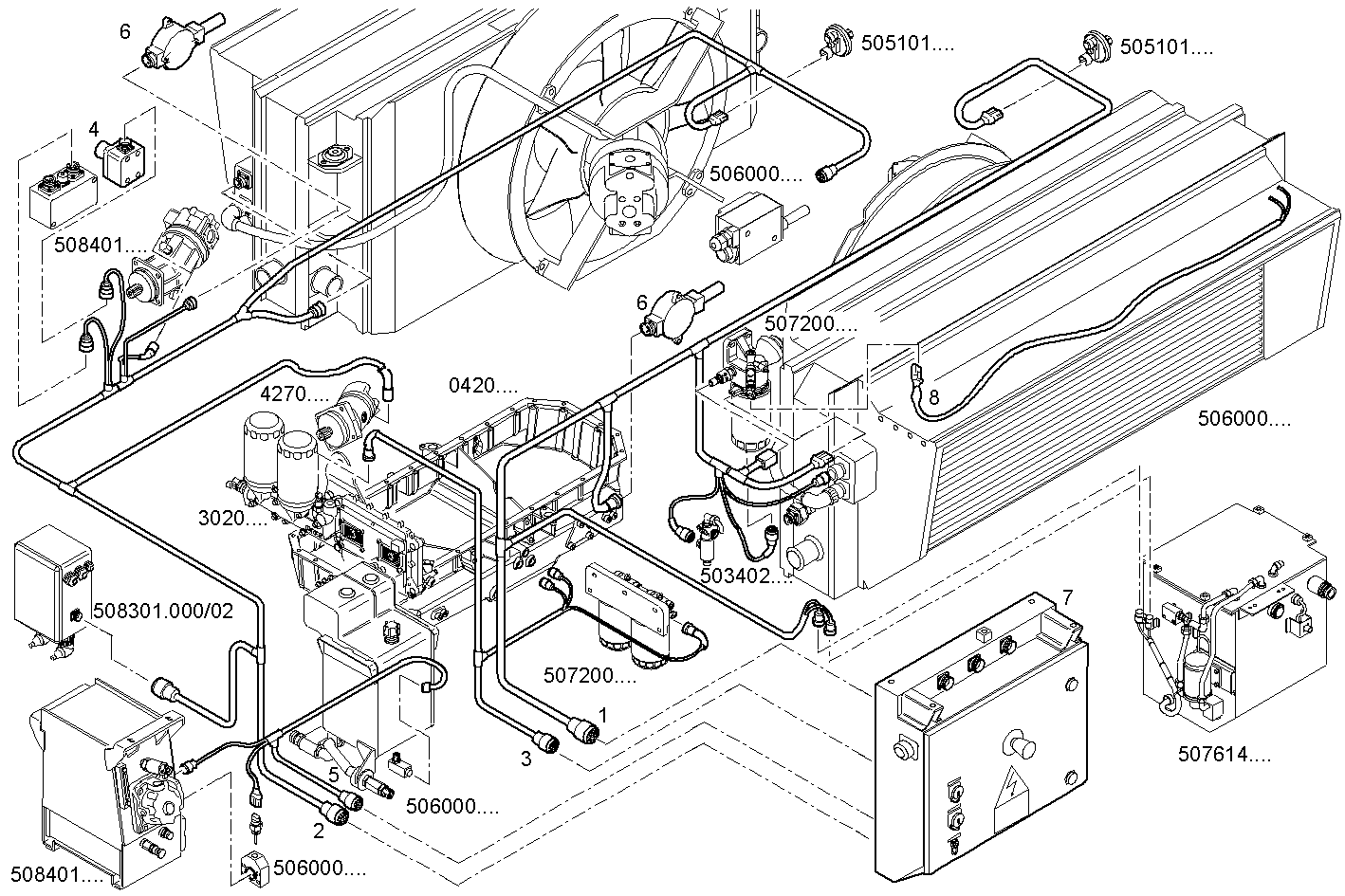

508301.000/01 ELECTRIC WIRING
| Item | Part number | Description |
|---|---|---|
| 1 | 504056727 | SET OF WIRING 1 |
| 2 | 504056729 | SET OF WIRING 2 |
| 3 | 504047466 | SET OF WIRING 3 |
| 4 | 504062803 | PUSH BUTTON EMERGENCY |
| 5 | 504048060 | SET OF WIRING 5 |
| 6 | 504077541 | SENSOR |
| 7 | 504208361 | SWITCH PANEL ASSY (SEE PL 508301.000/02) |
| 8 | 504079408 | WIRE/CABLE |
