PU7450i10.05A100

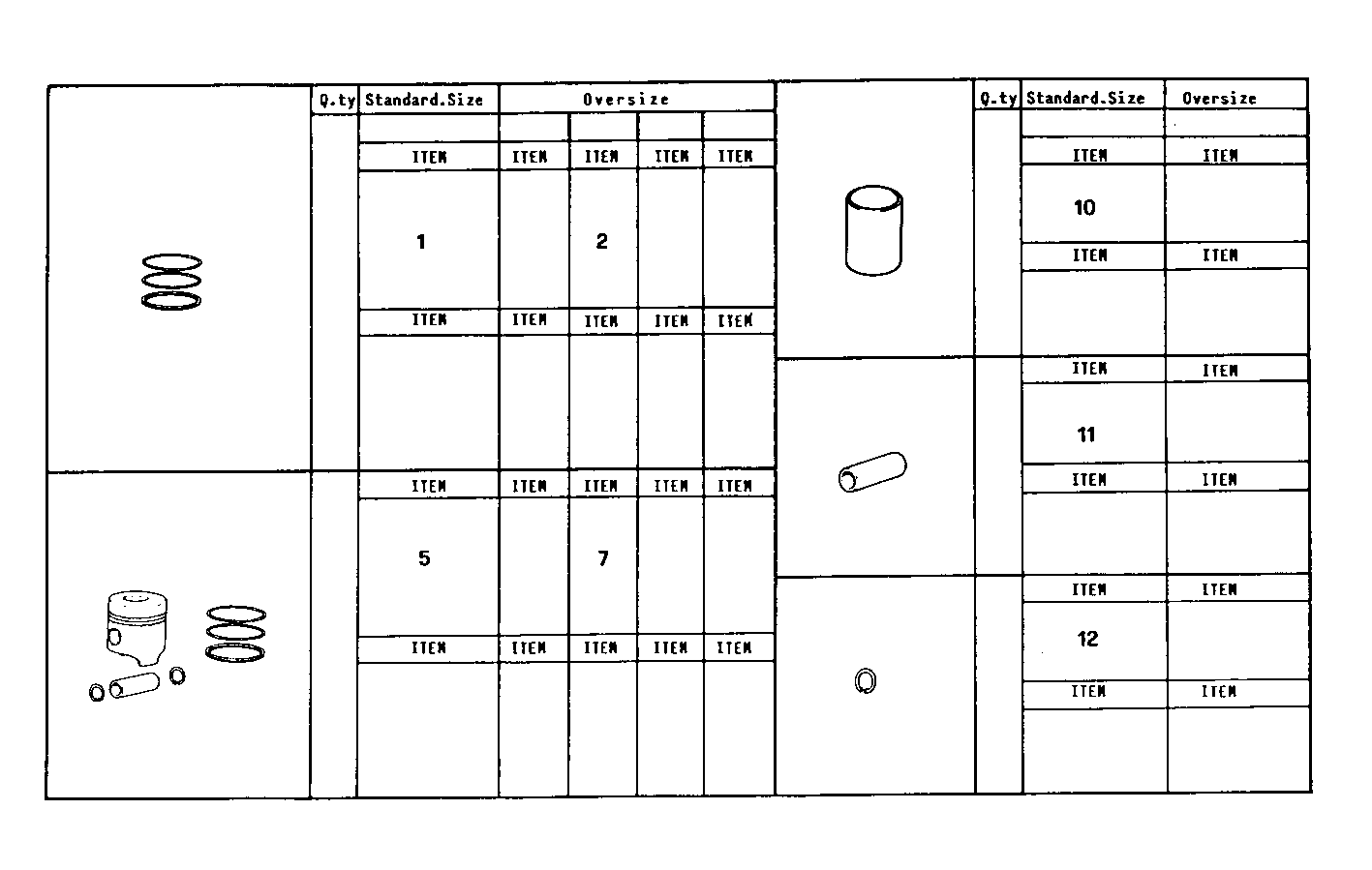

0820.066 PISTON ASSY - PISTON RINGS - PISTON PIN

Iveco/FPT PISTON ASSY - PISTON RINGS - PISTON PIN

Item Part number Description
1 82850251 PISTONRING SET STD
2 81866013 PISTONRING SET+0.5
5 87800536 PISTON ASSY
7 81873452 PISTON ASSY+0.5
10 83998292 CYLINDER LINER STANDARD
11 83958629 PISTON PIN
12 81823836 CIRCLIP
