PU7450i10.05A100

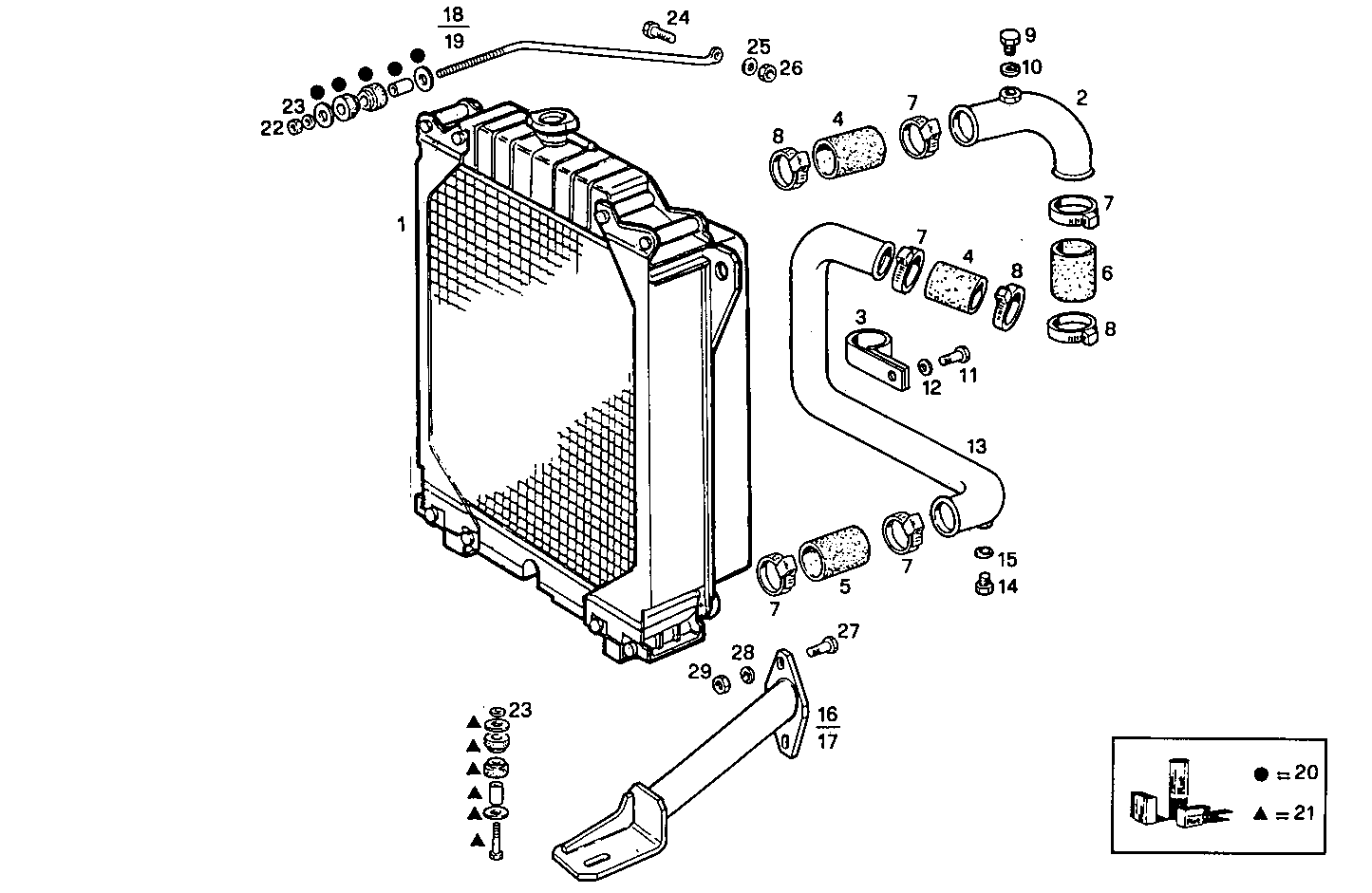

A22010036 RADIATOR FOR SETTING TILL MAX POWER

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8009112 WATER RADIATOR ASSY
2 8014586 WATER PIPE
3 4936741 CLIP
4 8813238 WATER HOSE
5 8102099 RUBBER SLEEVE
6 17742687 RUBBER SLEEVE
7 17764791 CLIP Ø32/50 MM
8 17764891 CLIP Ø40/60 MM
9 10300911 PLUG M8
10 4858606 GASKET Ø10X14X1 MM
11 16605524 HEXAGON BOLT M8X20 MM
12 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
13 8014587 WATER PIPE
14 16992111 THREADED PLUG M10X1
16 8014565 SUPPORT LEFT
17 8014564 SUPPORT RIGHT
18 8014303 TIE ROD LEFT
19 8014304 TIE ROD RIGHT
20 8090413 KIT-RADIATOR A.S. COMPLETE
21 8090341 KIT-RADIATOR A.S. COMPLETE
22 17038421 HEXAGON NUT M12 (8)
23 17091074 WASHER Ø12X24X2,8 MM
24 16605624 HEXAGON BOLT M8X25 MM (8.8)
25 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
26 17037931 HEXAGON NUT M8X1,25
27 16614824 SCREW M16X50
28 17092174 SPRING WASHER Ø16X32X3,4
29 17038921 NUT M16X2
