PU7450Si10.05A100

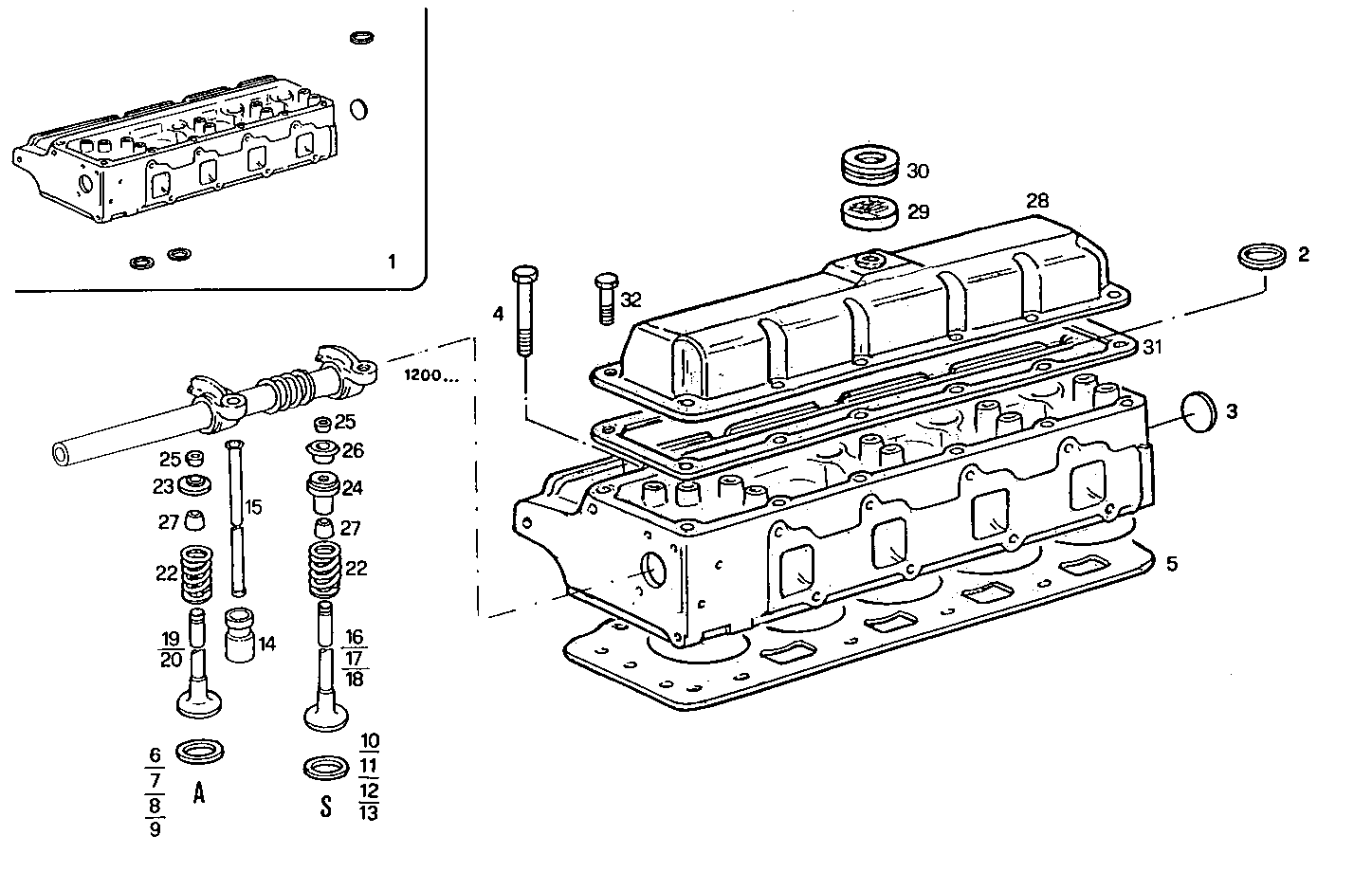

0600.055 CYLINDER HEAD
| Item |
Part number |
Description |
|
1 |
81876753 |
CYLINDER HEAD ASSY |
|
2 |
83957021 |
PLUG |
|
3 |
83957025 |
PLUG |
|
4 |
83948300 |
SCREW |
|
5 |
87800517 |
CYL.HEAD GASKET |
|
6 |
81876778 |
VALVE SEAT +0.76 |
|
7 |
81876756 |
VALVE SEAT STD. |
|
8 |
81876763 |
VALVE SEAT +0.25 |
|
9 |
81876768 |
VALVE SEAT +0.51 |
|
10 |
81865194 |
VALVE SEAT STD. EXHAUST |
|
11 |
81865195 |
VALVE SEAT +0.25 EXHAUST |
|
12 |
81865196 |
VALVE SEAT +0.51 EXHAUST |
|
13 |
81865197 |
VALVE SEAT +0.76 EXHAUST |
|
14 |
83946434 |
VALVE TAPPET |
|
15 |
81877890 |
PUSHROD |
|
16 |
82850523 |
EXHAUST VALVE |
|
17 |
82850521 |
EXHAUST VALVE 0,015 MM |
|
18 |
81865090 |
EXHAUST VALVE 0,76 MM |
|
19 |
82850530 |
INLET VALVE |
|
20 |
81865094 |
INLET VALVE 0,76 MM |
|
22 |
83999742 |
ENGINE VALV.SPRING |
|
23 |
83958102 |
TAPPET INTAKE |
|
24 |
83952336 |
TAPPET EXHAUST |
|
25 |
81876796 |
VALVE CONE |
|
26 |
83952337 |
CAP |
|
27 |
87840154 |
RING |
|
28 |
87800919 |
CYL. HEAD COVER |
|
29 |
81878954 |
STRAINER |
|
30 |
83958239 |
WASHER |
|
31 |
83976375 |
HEAD COVER GASKET |
|
32 |
83949109 |
SCREW |
