PU7675Si10.05A100

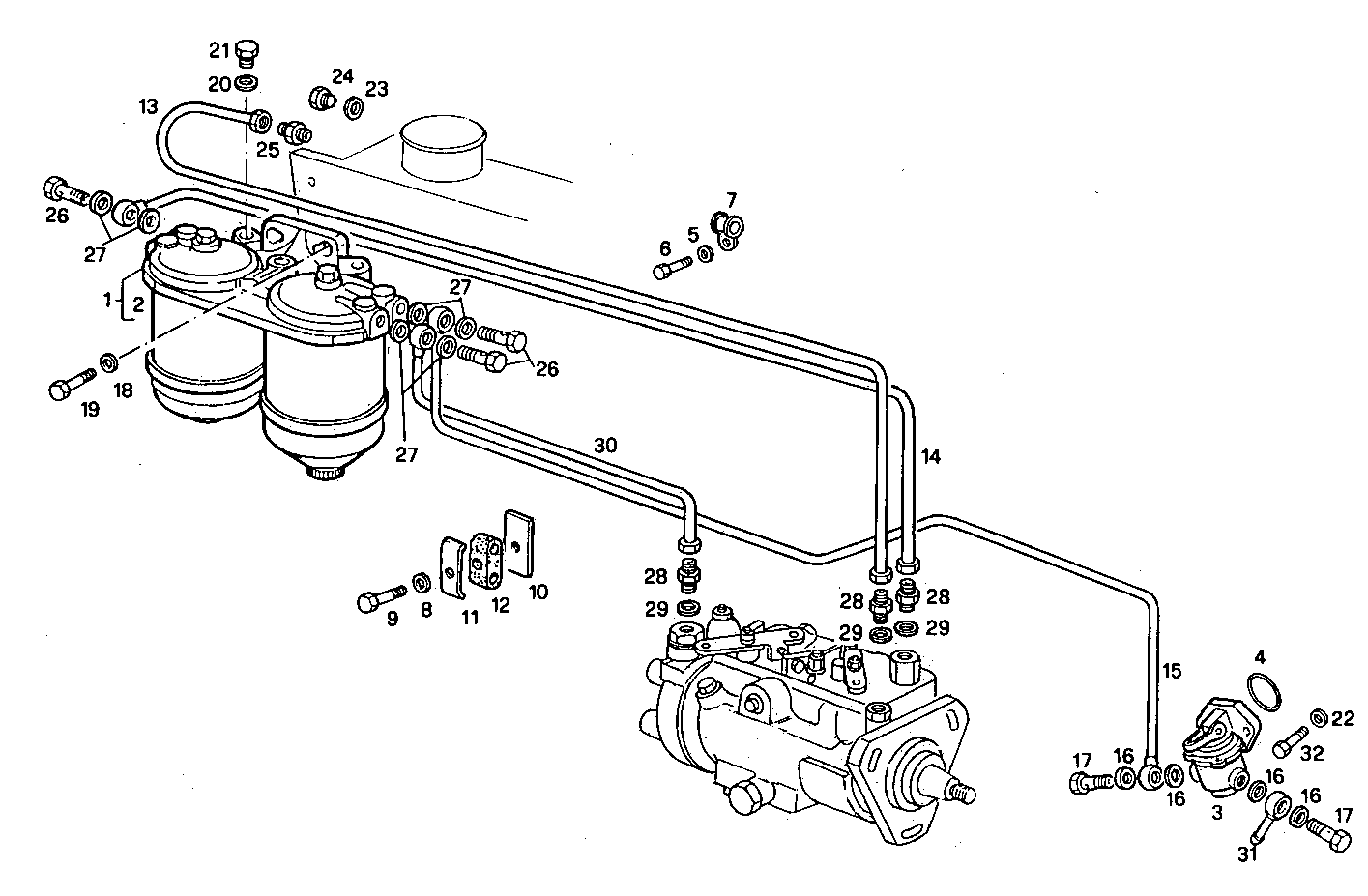

2030.060 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 98416659 FUEL FILTER ASSY
2 1901929 FUEL FILTER ELEM.
3 4757884 FUEL PUMP ASSY
4 4847092 O-RING
5 17090174 SPRING WASHER Ø10X20 MM
6 8014453 SCREW
7 8006650 CLIP
8 17094504 WASHER Ø5,3X10 MM
9 16602324 HEXAGON BOLT M5X25 MM
10 4659219 PLATE
11 4659218 CLIP
12 4659217 DOWEL
13 8016059 FUEL LINE
14 8014296 FUEL LINE
15 8014294 FUEL LINE
16 98474306 WASHER Ø12X20 MM SP=1,9 MM
17 4864082 BANJO BOLT M12X1,5X25 MM
18 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
19 16605924 SCREW M8X40 MM
20 4858606 GASKET Ø10X14X1 MM
21 4617973 SCREW CONNECTOR
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
24 8016060 PLUG
25 8016056 THERMO-STARTER
26 4864083 SCREW CONNECTOR M14X1,5X30 MM
27 98474308 SEAL GASKET Ø14X22 MM
28 8014066 PIPE SOCKET
29 17278081 O-RING Ø10,82X1,78 MM
30 8014295 FUEL LINE
31 98434018 THREADED UNION
32 16605524 HEXAGON BOLT M8X20 MM
