PU7675Si10.05A100

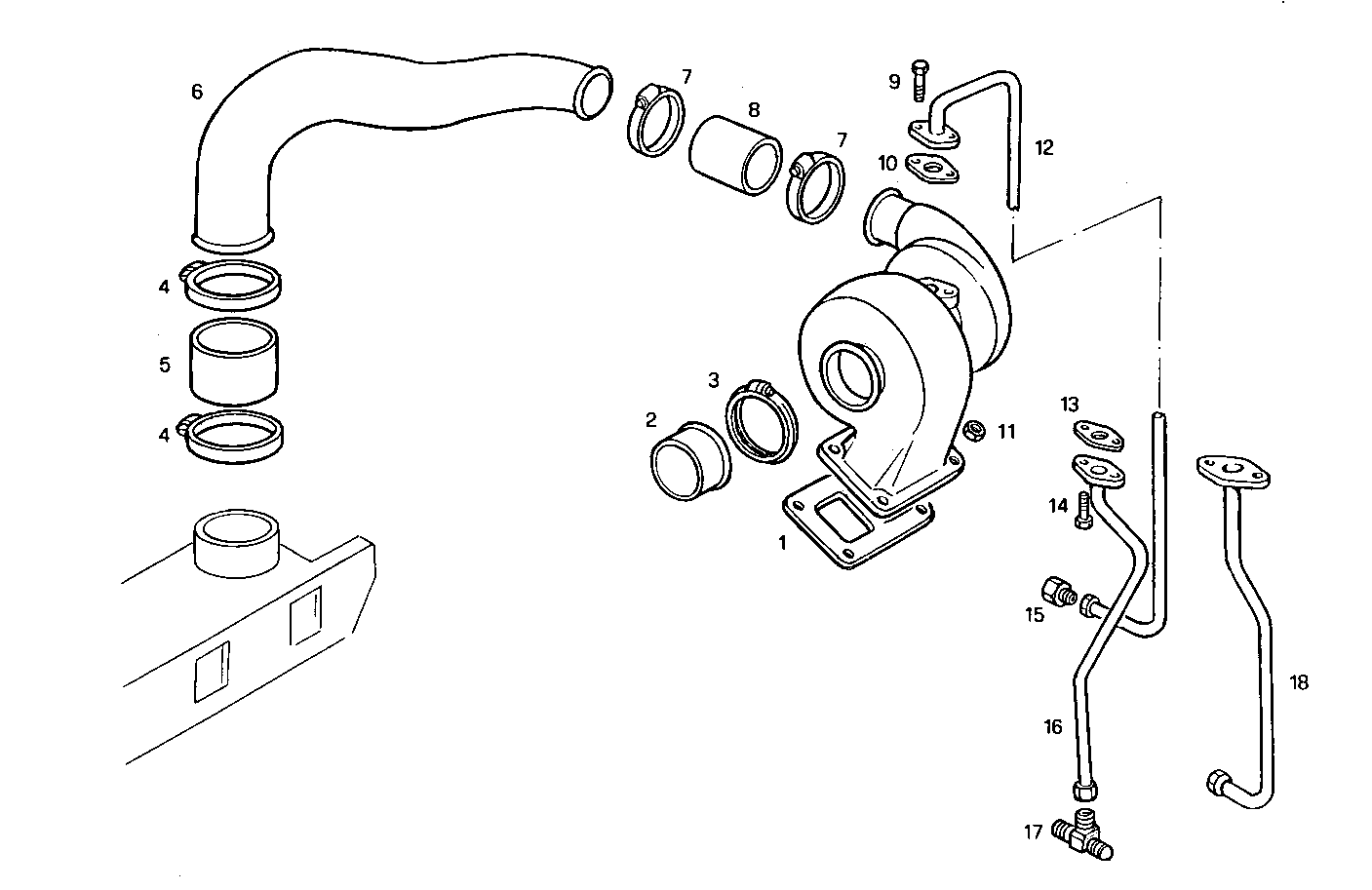

2420.058 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 83911642 GASKET
2 8014159 FLANGE
3 8015369 CLIP
4 81871498 CLIP
5 81862808 RUBBER SLEEVE
6 81879217 INTAKE ELBOW
7 81871496 CLIP
8 8022415 RUBBER SLEEVE
9 81879213 SCREW
10 83959841 GASKET
11 83993005 NUT
12 82852419 OIL LINE
13 83953341 GASKET
14 83908815 SCREW
15 81843887 PIPE SOCKET
16 82853712 OIL LINE [from 05-97]
17 81869032 PIPE SOCKET
18 81879214 OIL LINE [up to 05-97]
