Catalogue Menu
PU7675Si10.05A100

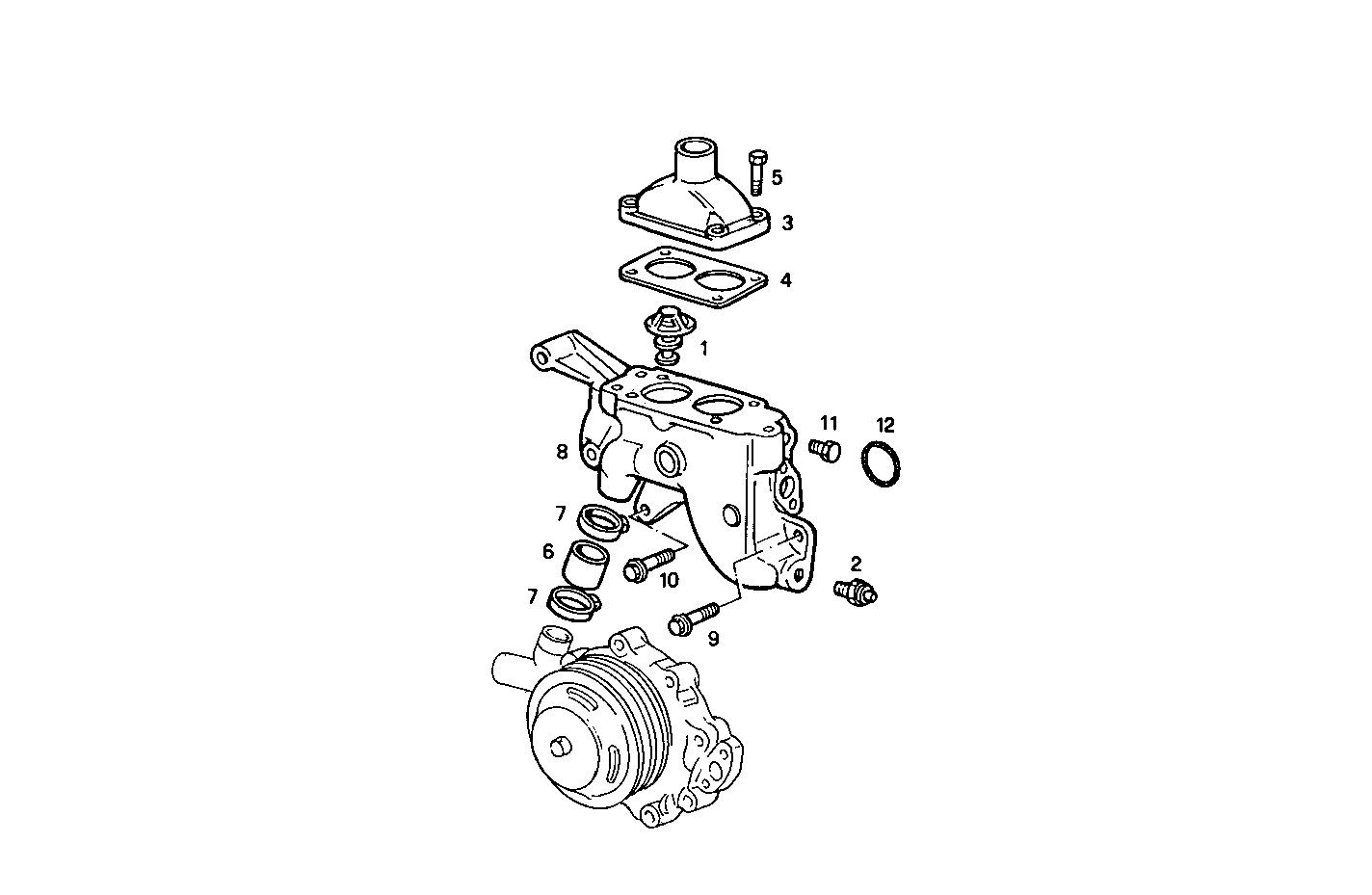

3220.034 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 83916340 | THERMOSTAT |
| 2 | 83917490 | TRANSMITTER |
| 3 | 83913951 | COVER |
| 4 | 83912930 | GASKET |
| 5 | 82855673 | SCREW |
| 6 | 83912933 | RUBBER SLEEVE |
| 7 | 81811886 | CLIP |
| 8 | 83986398 | THERMOSTAT BODY |
| 9 | 81868095 | SCREW |
| 10 | 81821380 | SCREW |
| 11 | 83984176 | PLUG |
| 12 | 83913202 | O-RING |
