PU7675Si10.05A100

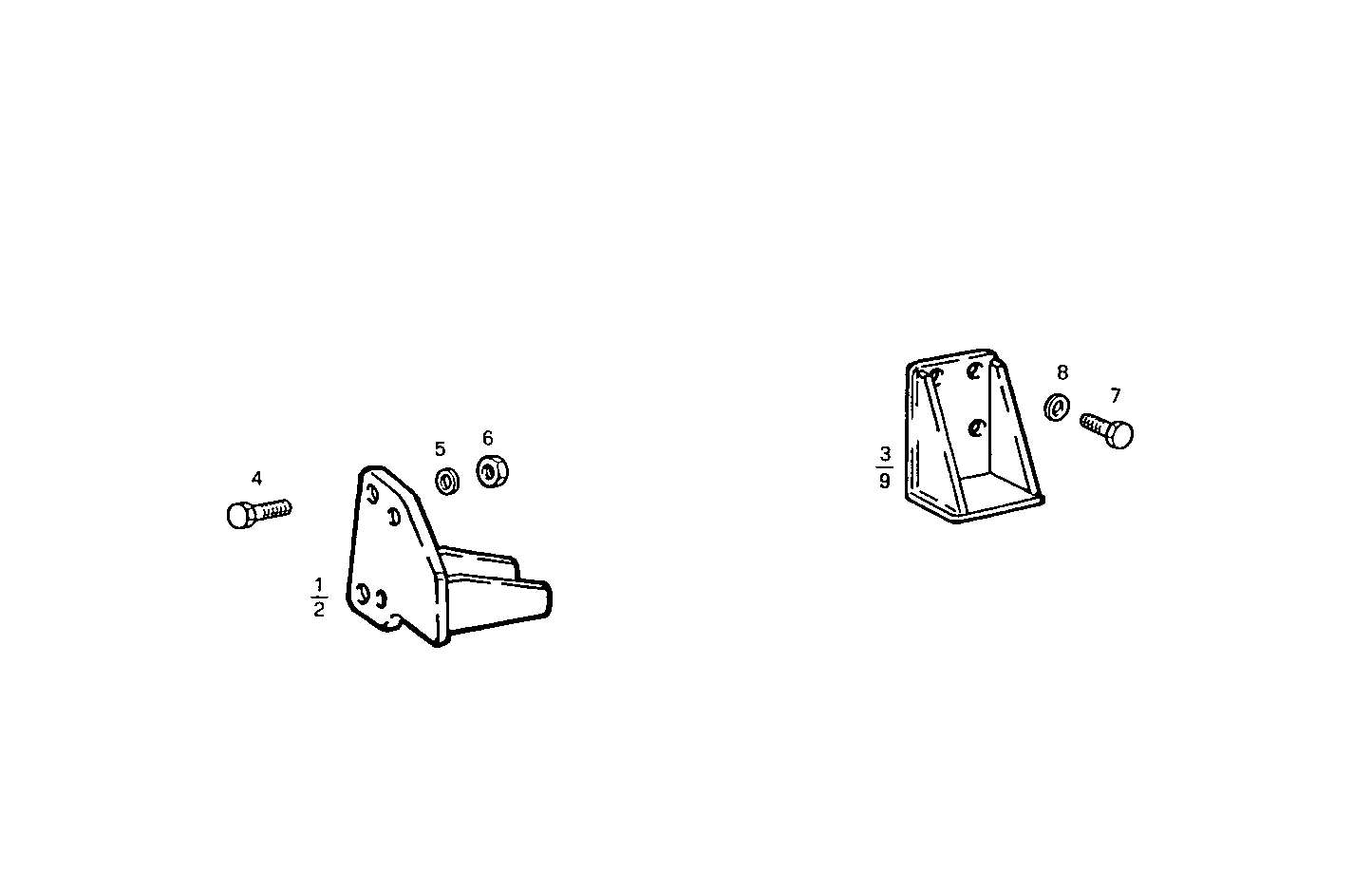

A04000903 RIGID MOUNTING

Iveco/FPT RIGID MOUNTING

Item Part number Description
1 8014084 ENGINE SUSPENSION RIGHT
2 8014085 ENGINE SUSPENSION LEFT
3 8017443 ENGINE SUSPENSION REAR - RIGHT
4 11244624 SCREW
5 17092574 SPRING WASHER Ø18X36X4,2 MM
6 17039221 NUT M18X1,5
7 16609824 HEXAGON BOLT M12X1,75X25 MM
8 17091074 WASHER Ø12X24X2,8 MM
9 8017444 ENGINE SUSPENSION REAR - LEFT
