PU8031i05.05A100

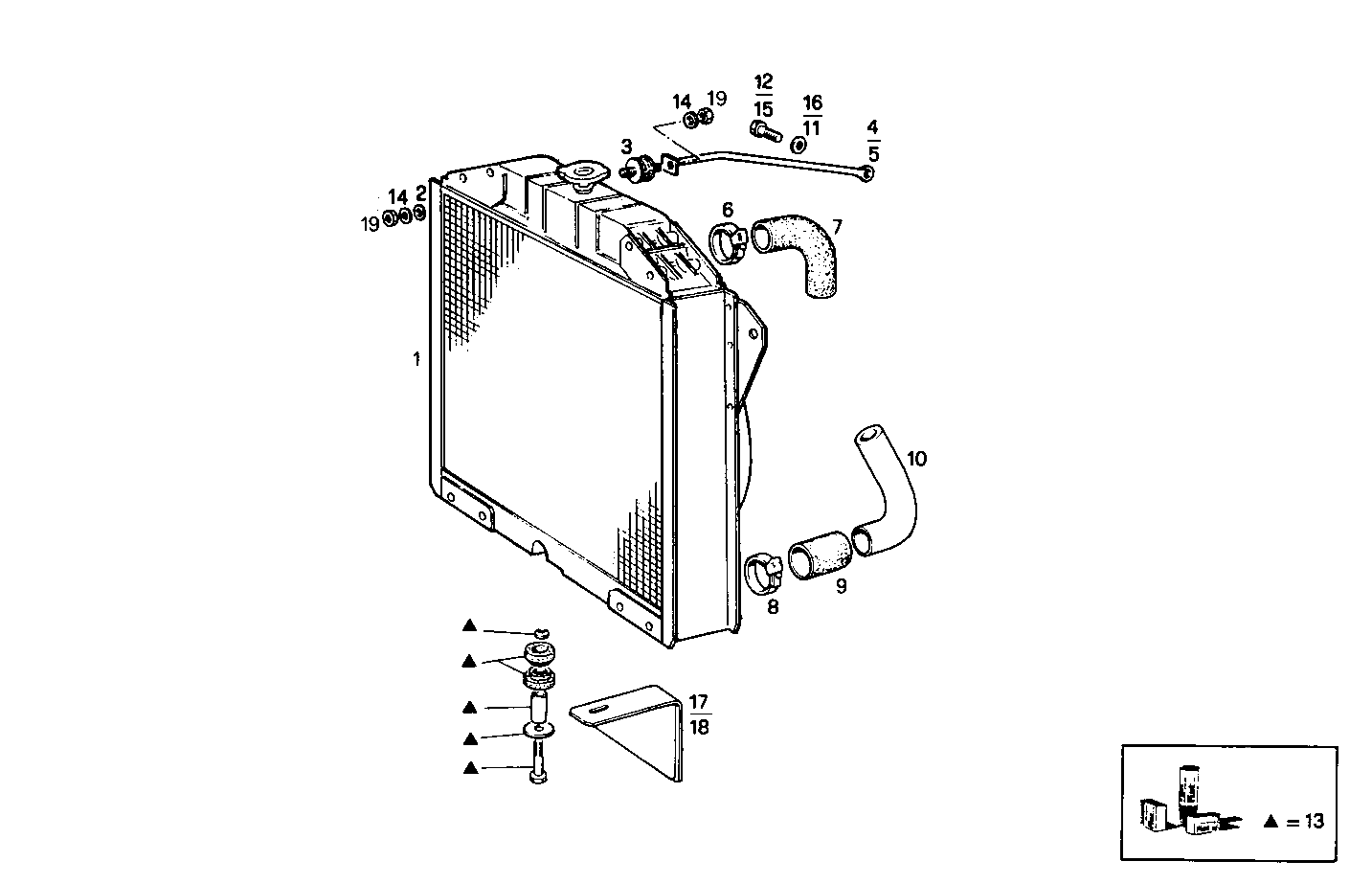

A22010028 RADIATOR FOR SETTING TILL MAX POWER

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8009108 WATER RADIATOR ASSY
2 12644301 WASHER
3 4927882 RUBBER PAD
4 8104699 TIE ROD RIGHT
5 8104712 TIE ROD LEFT
6 98490783 CLIP Ø55-65 MM
7 4950088 WATER PIPE
8 17764791 CLIP Ø32/50 MM
9 596152 RUBBER SLEEVE
10 8077105 WATER PIPE
11 98415215 WASHER Ø10X20X2,3 MM
12 16605624 HEXAGON BOLT M8X25 MM (8.8)
13 8090341 KIT-RADIATOR A.S. COMPLETE
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 4854882 SCREW M8X1,25X45 MM
16 11193874 WASHER Ø8X16 MM
17 8104250 SUPPORT RIGHT
18 8104274 SUPPORT LEFT
19 17037931 HEXAGON NUT M8X1,25
