PU8035E00.00A100

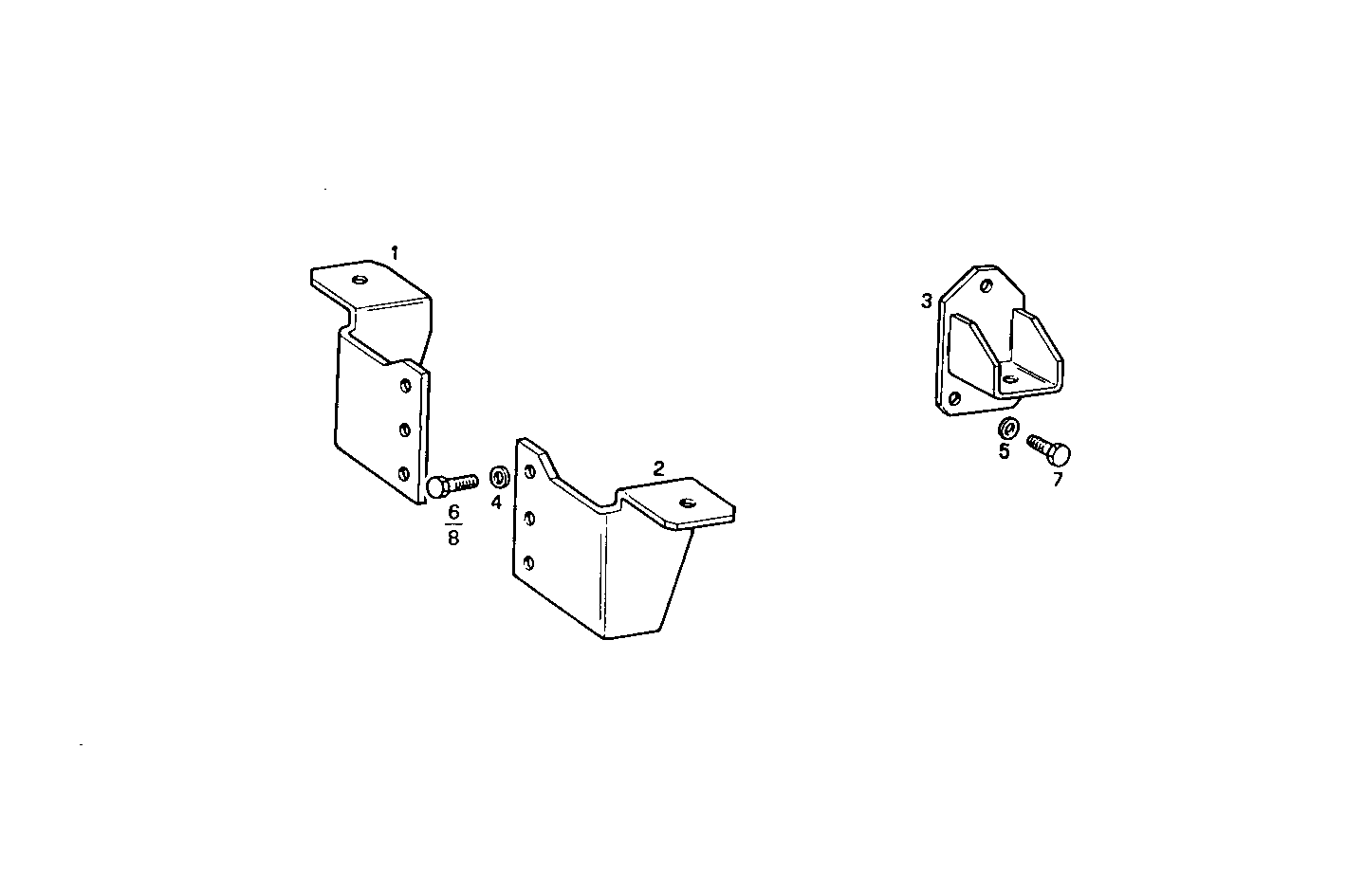

A04000907 RIGID MOUNTING
Item | Part number | Description |
---|---|---|
1 | 4927637 | ENGINE SUSPENSION |
2 | 4927636 | ENGINE SUSPENSION |
3 | 4928444 | ENGINE SUSPENSION REAR |
4 | 17092174 | SPRING WASHER Ø16X32X3,4 |
5 | 17090174 | SPRING WASHER Ø10X20 MM |
6 | 11376221 | HEXAGON BOLT M16X1,5X35 MM |
7 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
8 | 11390521 | HEXAGON BOLT M16X1,5X40 MM |
