PU8041i05.05A100

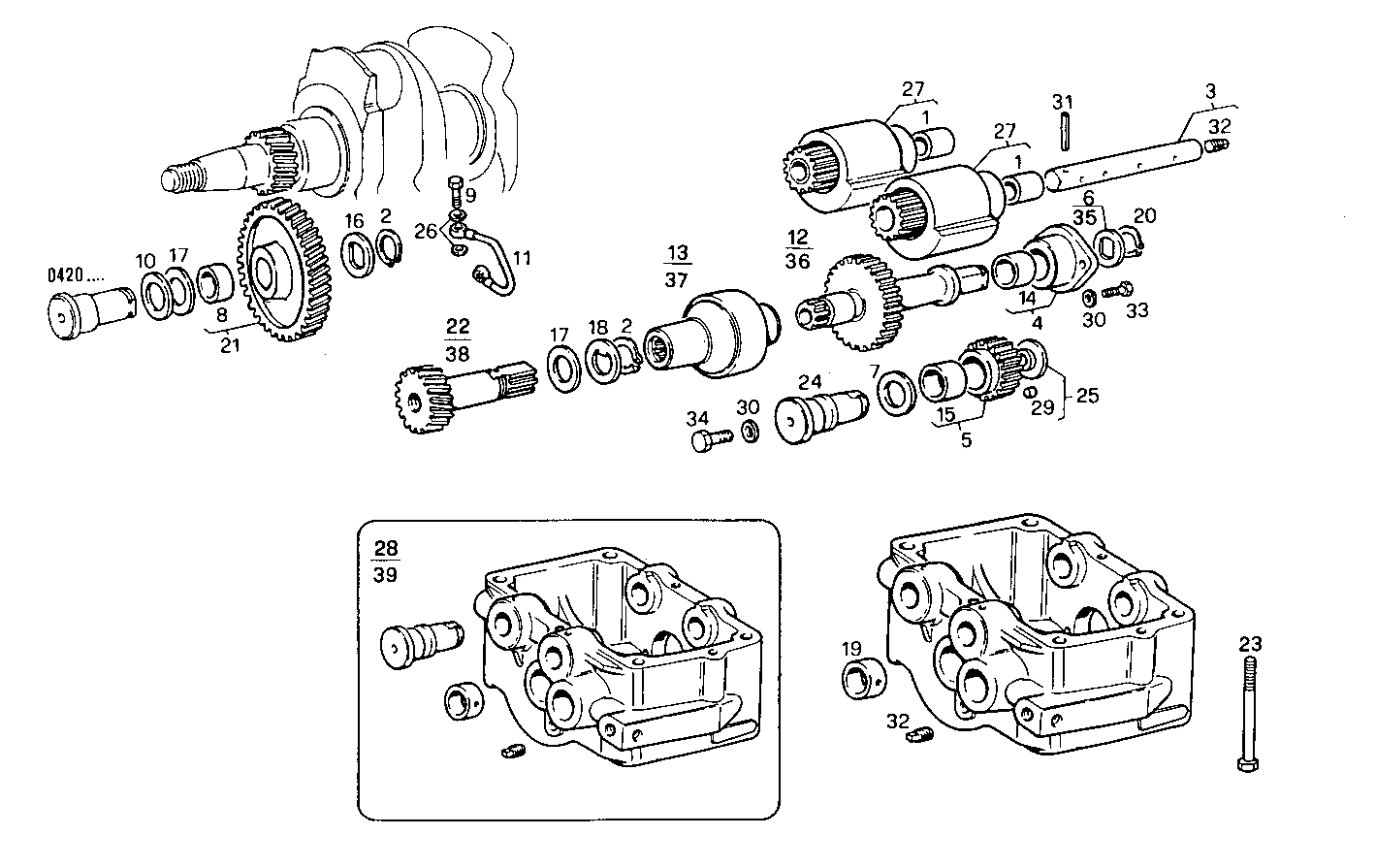

1050.001 ADDITIONAL MASSES
| Item | Part number | Description |
|---|---|---|
| 1 | 583514 | BUSH |
| 2 | 4600329 | CIRCLIP |
| 3 | 4600367 | PIN ASSY |
| 4 | 4600375 | SUPPORT ASSY |
| 5 | 4600376 | GEAR ASSY |
| 6 | 4600377 | WASHER |
| 7 | 4600381 | WASHER |
| 8 | 4812465 | CENTERING BUSH |
| 9 | 11903814 | SCREW CONNECTOR M10X1,25X19 MM |
| 10 | 4600386 | WASHER |
| 11 | 4812938 | OIL LINE |
| 12 | 4605610 | GEAR |
| 13 | 4605612 | COUPLER |
| 14 | 4607851 | BUSH |
| 15 | 4628982 | BUSH |
| 16 | 4667450 | WASHER |
| 17 | 4834331 | SPAC.RING CYL.LIN. |
| 18 | 4668200 | WASHER |
| 19 | 4599807 | BUSH |
| 20 | 4707674 | CIRCLIP |
| 21 | 4812932 | GEAR ASSY |
| 22 | 4770244 | GEAR |
| 23 | 4778867 | SCREW |
| 24 | 4788666 | PIN |
| 25 | 4789294 | WASHER ASSY |
| 26 | 4858606 | GASKET Ø10X14X1 MM |
| 27 | 4789410 | HUB ASSY |
| 28 | 4792111 | SUPPORT ASSY |
| 29 | 10329910 | PARALLEL PIN Ø3 MM |
| 30 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 31 | 14607670 | PIN |
| 32 | 14323911 | LOCK PLUG M10X1,25 |
| 33 | 16605524 | HEXAGON BOLT M8X20 MM |
| 34 | 16044521 | HEXAGON BOLT M8X65 MM |
| 35 | 98415099 | WASHER [from ...] |
| 36 | 98415090 | GEAR [from ...] |
| 37 | 98415087 | SHAFT [from ...] |
| 38 | 98418381 | GEAR [from ...] |
| 39 | 98415171 | SUPPORT ASSY [from ...] |
