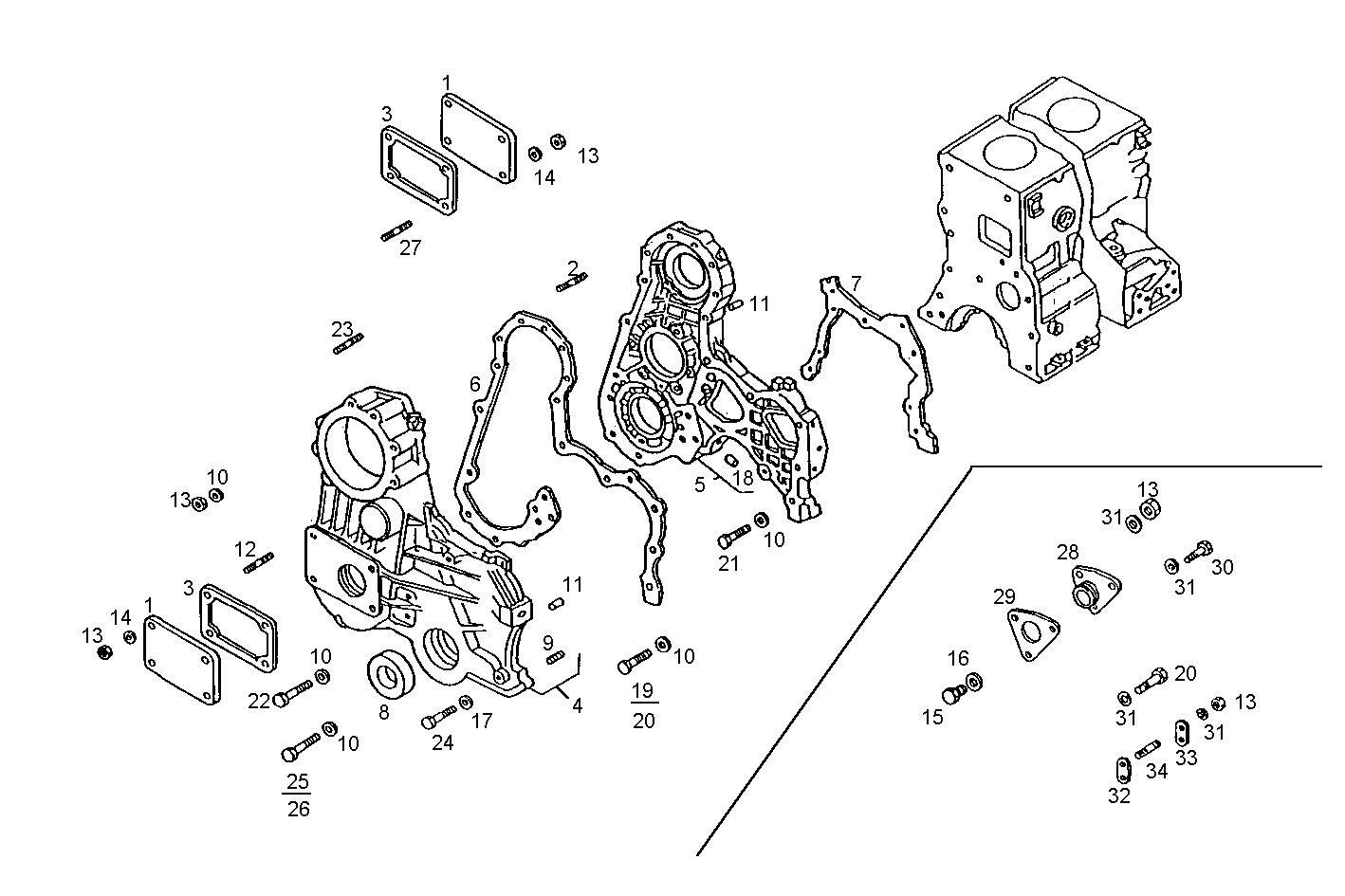

| Item |
Part number |
Description |
|
1 |
500315902 |
COVER |
|
2 |
13546921 |
STUD M8X12X22 MM |
|
3 |
500318720 |
FLAT ENGINE GASKET Ø50 MM |
|
4 |
99479056 |
FRONT C.CASE COVER ASSY |
|
5 |
4786512 |
TIMINGGEAR HOUSIN ASSY |
|
6 |
98418138 |
FLAT ENGINE GASKET |
|
7 |
98424046 |
FLAT ENGINE GASKET |
|
8 |
99469265 |
SHAFT SEAL CORCOS |
|
9 |
13526170 |
THREADED INSERT M10X1,25X20 MM |
|
10 |
17094914 |
WASHER 8x16 |
|
11 |
10839610 |
DOWEL PIN Ø8 MM |
|
12 |
16729924 |
STUD M8X50 MM |
|
13 |
17037931 |
HEXAGON NUT M8X1,25 |
|
14 |
17089471 |
SPRING WASHER Ø16X8 MM SP=1,4 MM |
|
15 |
4602520 |
PLUG |
|
16 |
10297760 |
SEAL GASKET Ø6,2 MM |
|
17 |
17095014 |
WASHER Ø10X18 MM |
|
18 |
4605220 |
OIL NOZZLE |
|
19 |
16043521 |
SCREW M8X22 |
|
20 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
21 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
22 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
23 |
13543621 |
STUD M8X16X30 MM |
|
24 |
15888824 |
HEXAGON BOLT M10X1,25X70 MM |
|
25 |
16044924 |
SCREW M8X1,25X85 MM |
|
26 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
27 |
16729324 |
STUD M8X12X20 MM |
|
28 |
4619671 |
SUPPORT |
|
29 |
4851004 |
FLAT ENGINE GASKET |
|
30 |
15213824 |
HEXAGON BOLT M8X65 MM |
|
31 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
32 |
98424383 |
GASKET |
|
33 |
98424384 |
PLATE |
|
34 |
16747424 |
STUD M8X16X60 |
