PU8045E00.00A101

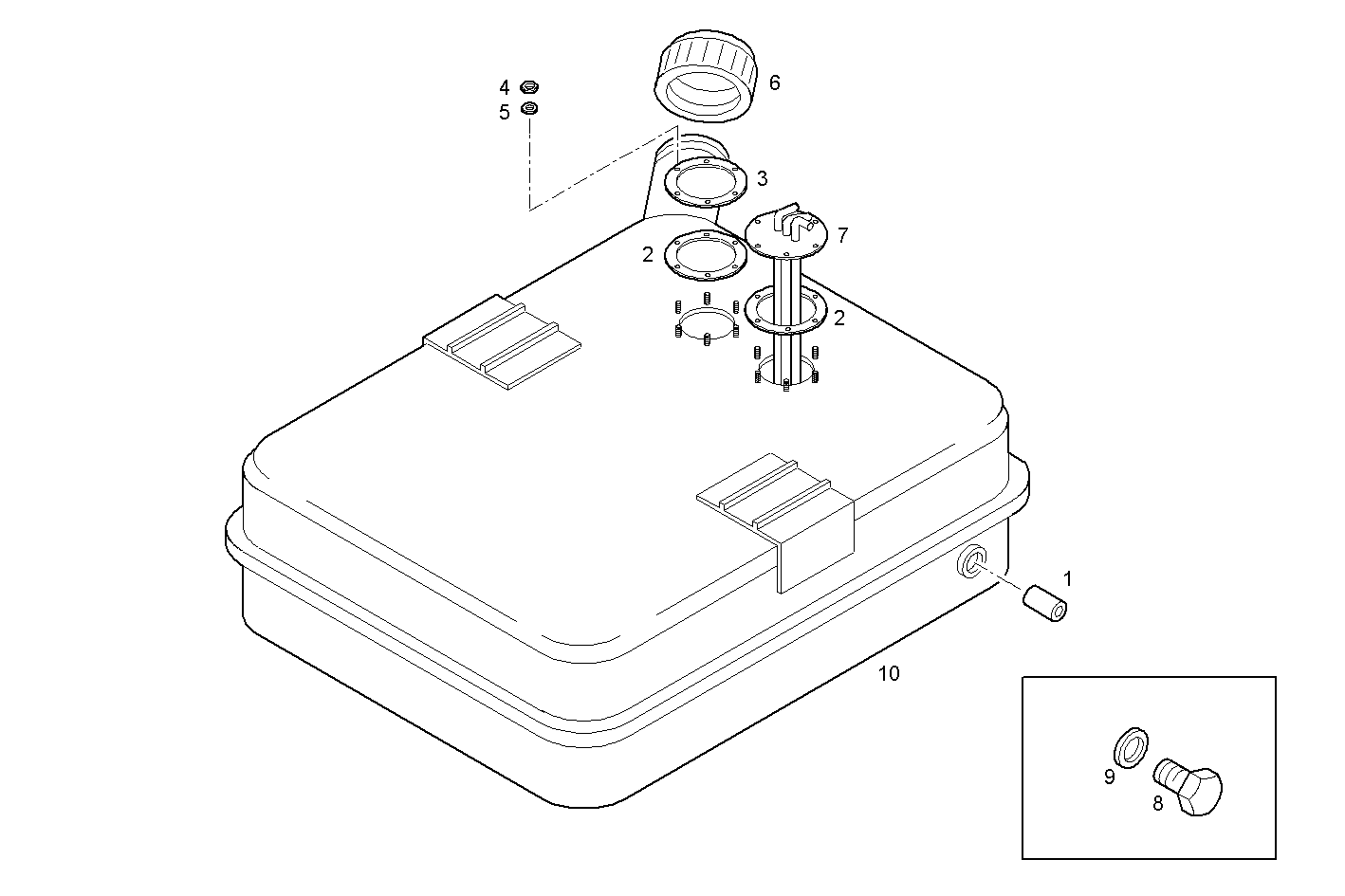

A29030004 FUEL TANK
Item | Part number | Description |
---|---|---|
1 | 14325301 | LOCK PLUG Ø22 MM |
2 | 992273 | GASKET |
3 | 8027054 | FUEL LEVEL GAUGE |
4 | 17037621 | HEXAGON NUT M4 |
5 | 17797974 | SPRING WASHER Ø4,1X7,6 MM |
6 | 541257 | FUEL TANK PLUG ASSY |
7 | 4932707 | FUEL FILTER |
8 | 10305111 | LOCK PLUG M22 |
9 | 10263460 | WASHER Ø22X28X1,5 MM |
10 | 8104758 | TANK |
