PU8045E00.00A110

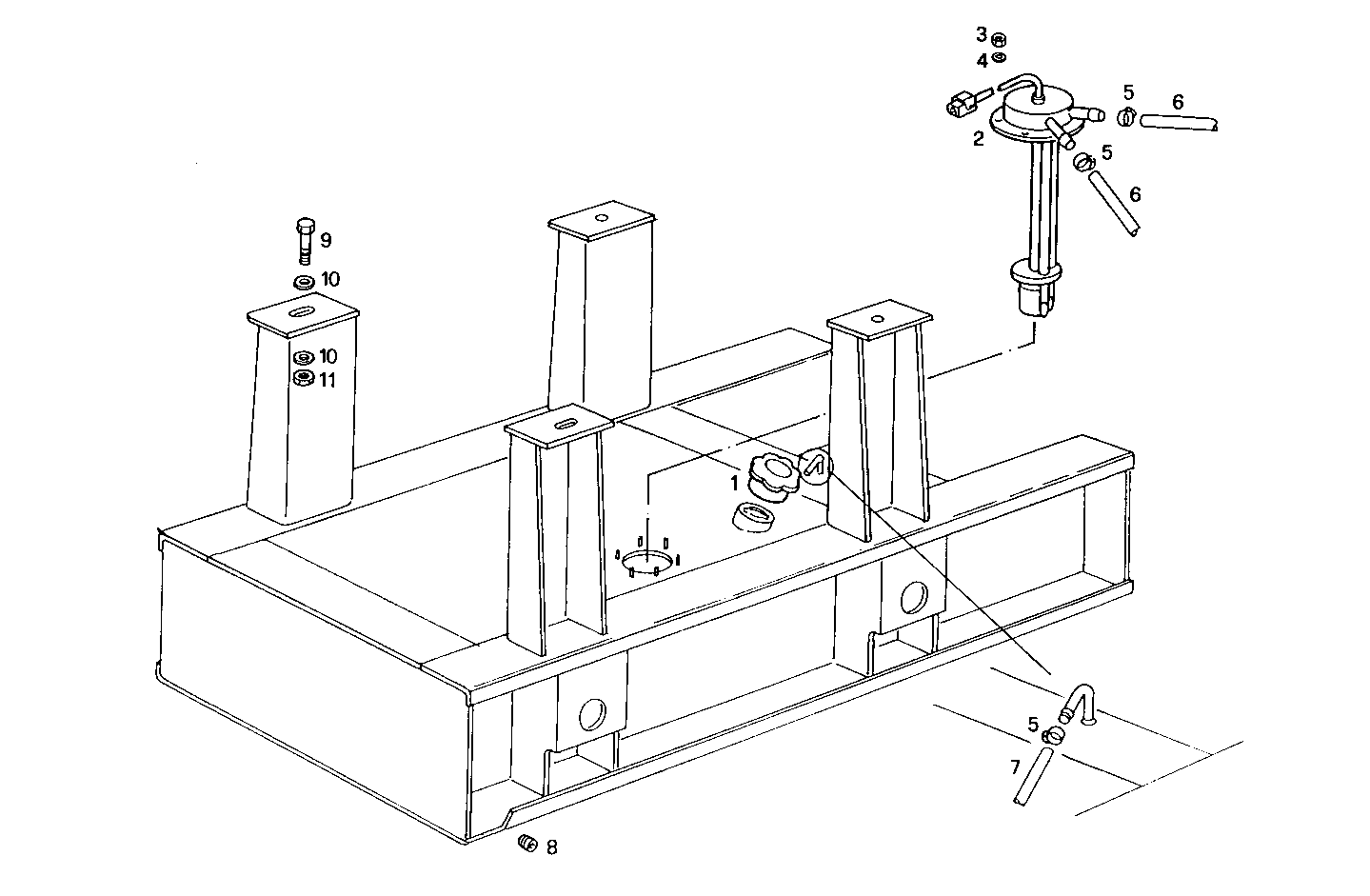

A36730002 SUBBASE FOR ENGINE CLUTCH - with fuel tank

Iveco/FPT SUBBASE FOR ENGINE CLUTCH

Item Part number Description
1 8018418 FUEL TANK PLUG
2 8015746 FUEL LEVEL GAUGE
3 17037621 HEXAGON NUT M4
4 17094204 WASHER Ø4X8X0,8 MM
5 18087991 CLIP Ø8/16 MM
6 17723082 BREATHER PIPE
7 19053382 HOSE
8 16997771 PLUG
9 16614624 HEXAGON BOLT M16X40 MM
10 17092174 SPRING WASHER Ø16X32X3,4
11 17039021 HEXAGON NUT M16
