PU8065E00.00A110

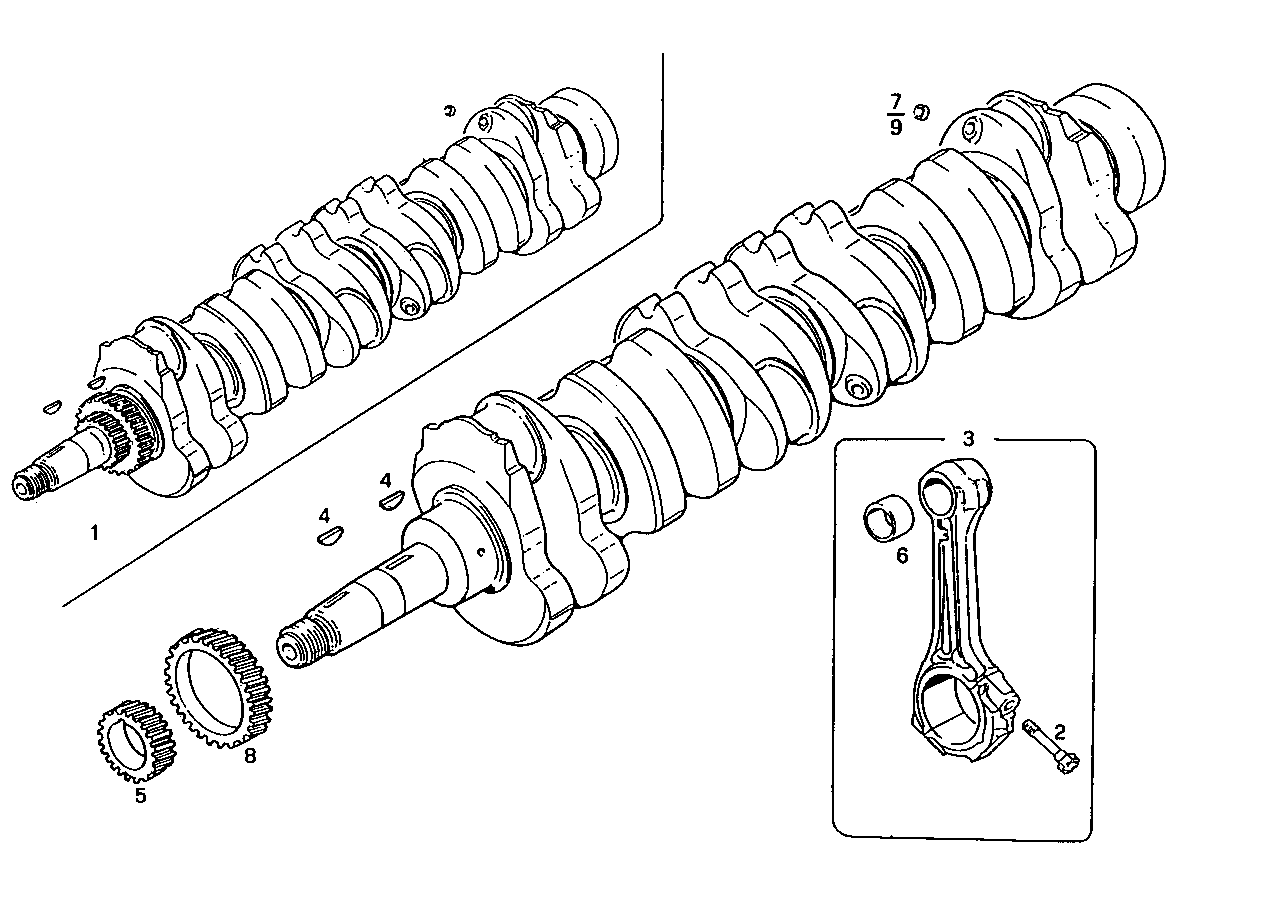

0800.006 CRANK SHAFT - CONNECTING RODS
Item | Part number | Description |
---|---|---|
1 | 4785107 | CRANK SHAFT ASSY |
2 | 4780627 | BIG-END BOLT |
3 | 98461751 | CONN.ROD ASSY. ASSY |
4 | 4655844 | KEY |
5 | 4809524 | TIMING DRIVE GEAR |
6 | 98460411 | BIG-END BUSH |
7 | 14328101 | LOCK PLUG Ø8 MM |
8 | 4770255 | OIL PUMP DRIV.GEA |
9 | 16987501 | LOCK PLUG Ø7 MM |
