PU8065E00.00A110

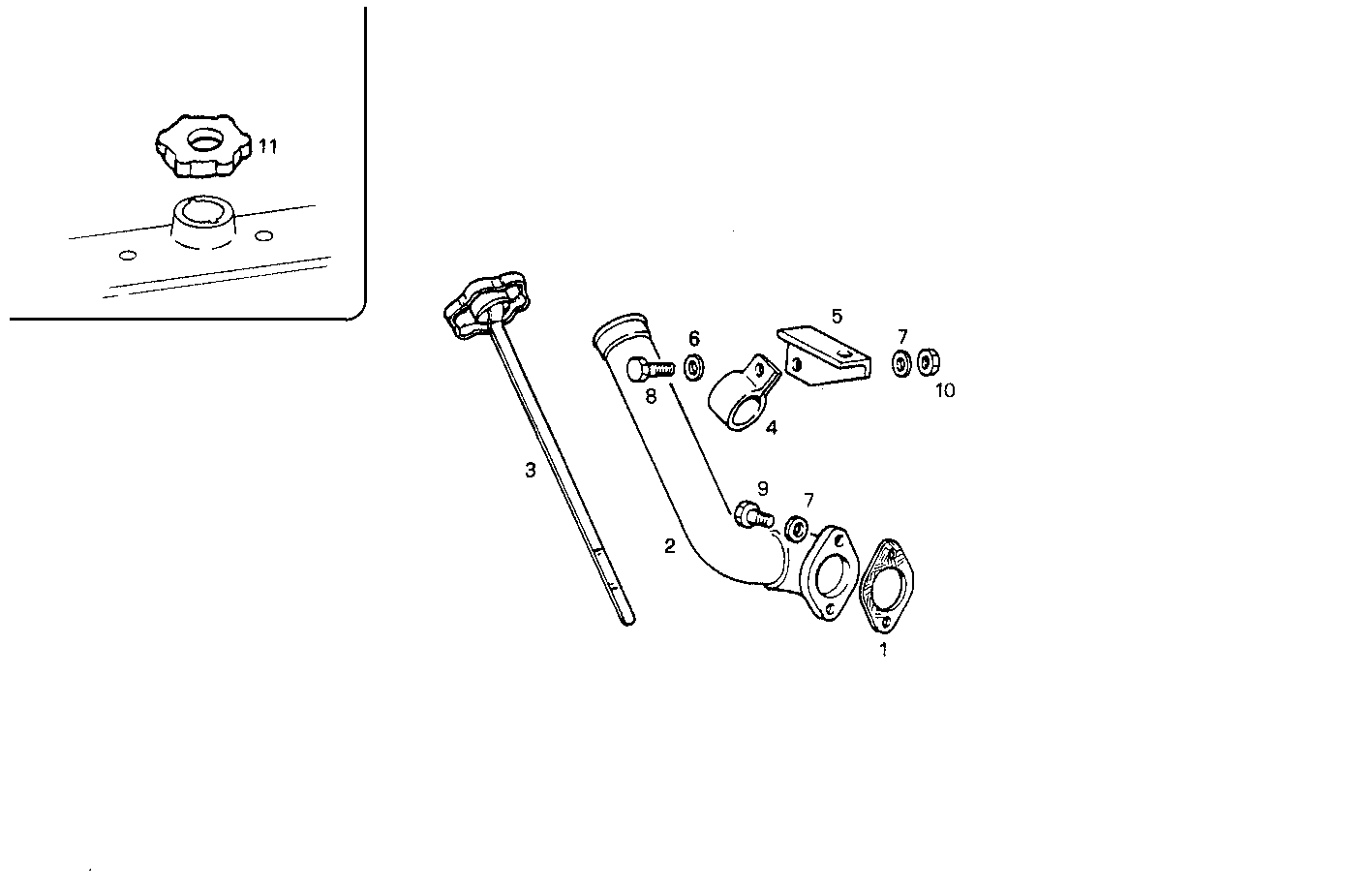

2710.003 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 98400785 GASKET
2 4753137 OIL LEVEL TUBE
3 4753139 OIL DIPSTICK
4 4731200 CLIP
5 4753141 RETAINER
6 10519601 WASHER Ø8X17 MM
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 16605624 HEXAGON BOLT M8X25 MM (8.8)
9 16606324 HEXAGON BOLT M8X60 MM
10 17037931 HEXAGON NUT M8X1,25
11 4232606 OIL FILLER PLUG ASSY
