PU8210I03.00A100

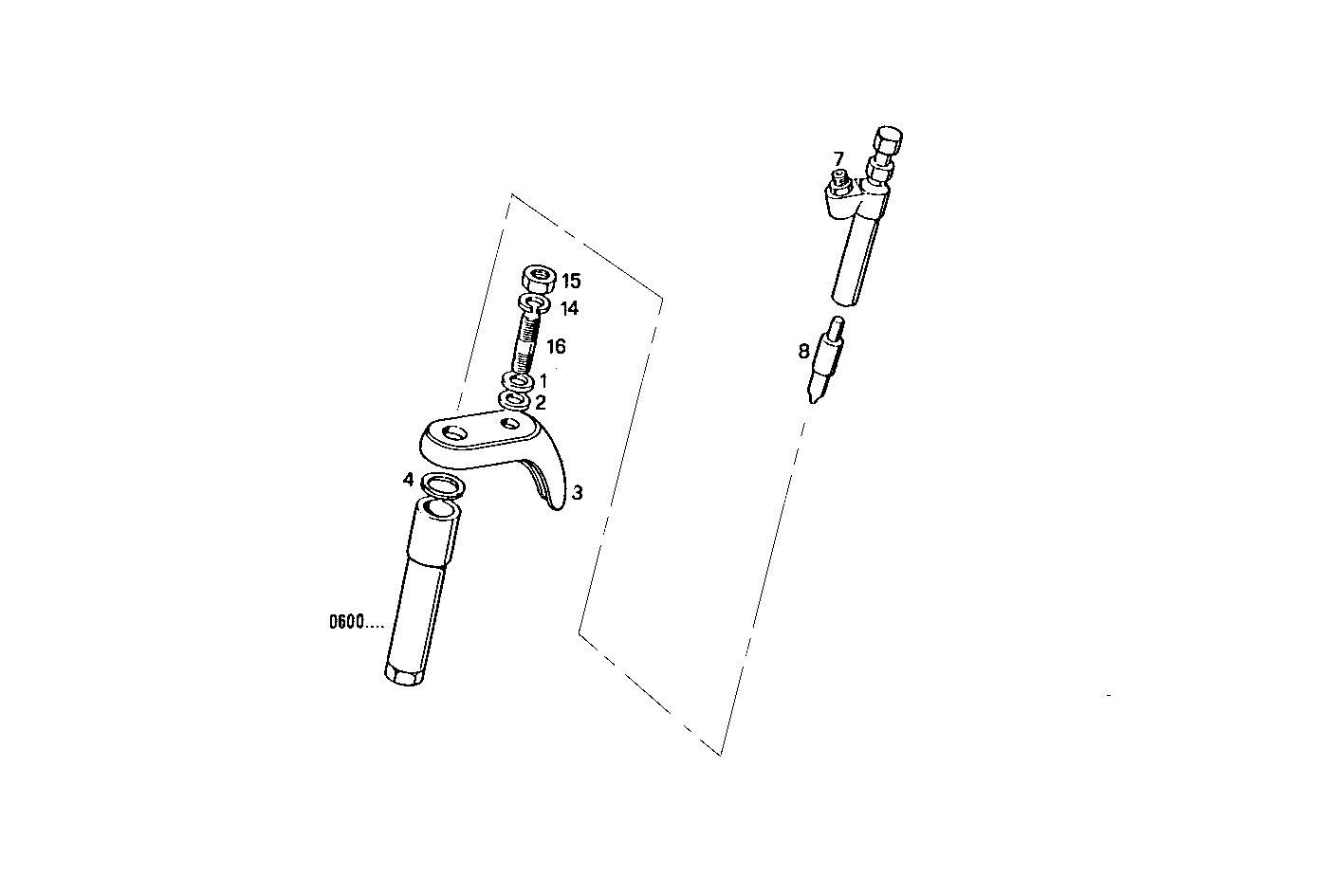

1420.013 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 756671 | WASHER |
| 2 | 757265 | WASHER |
| 3 | 764099 | RETAINER |
| 4 | 767111 | WASHER |
| 7 | 770879 | NOZZLE HOLDER ASSY BOSCH |
| 8 | 1907671 | FUEL NOZZLE |
| 14 | 17090274 | WASHER Ø10X20 MM |
| 15 | 17038221 | HEXAGON NUT M10 |
| 16 | 13450530 | STUD M10X15X70 MM |
