Catalogue Menu
PU8210I03.00A100

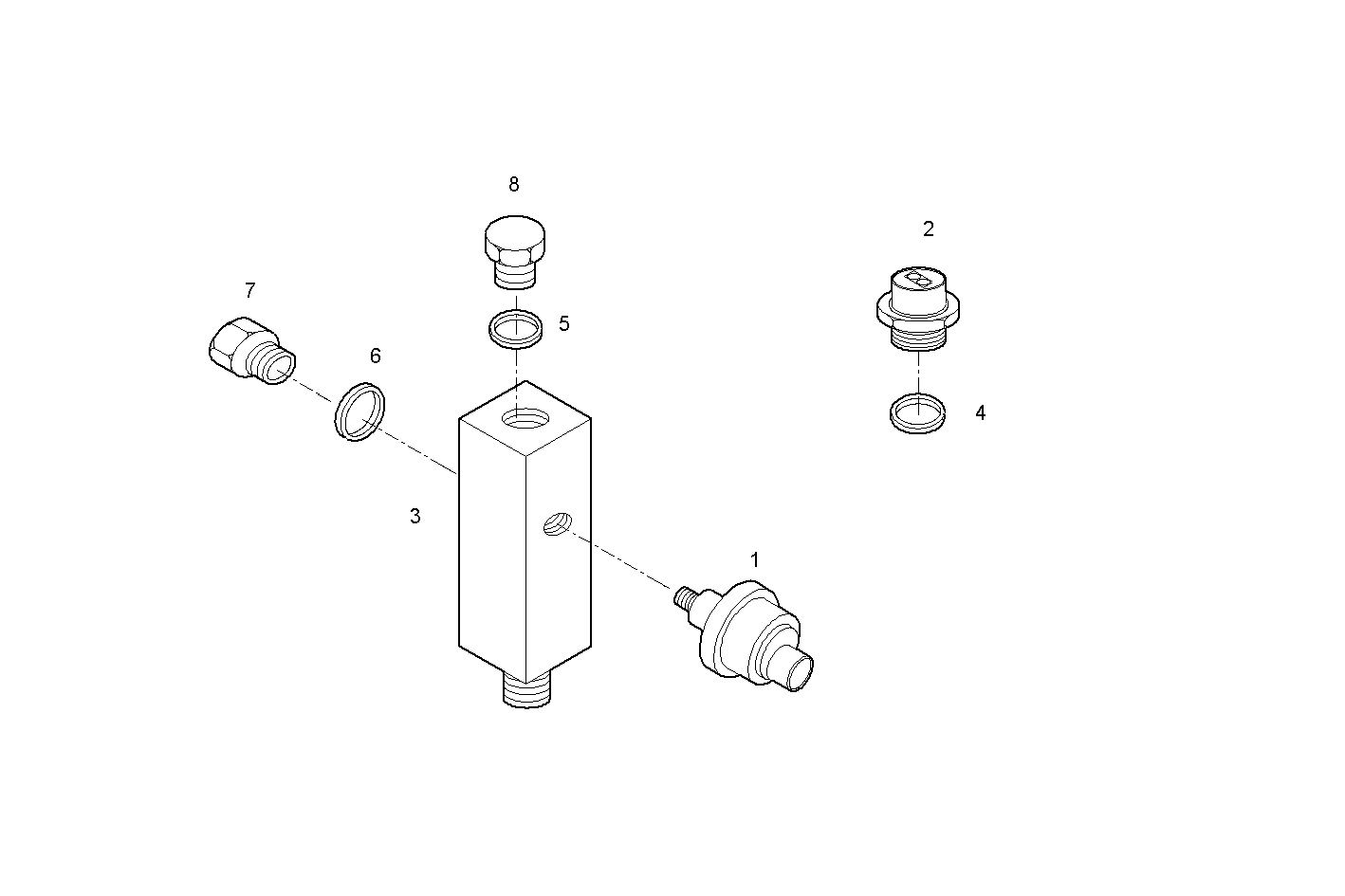

A38580006 SENDER UNITS HWT/LOP - 12/24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8036275 | TRANSMITTER TPO |
| 2 | 4933019 | TRANSMITTER TTA - TTO |
| 3 | 4929576 | PIPE SOCKET |
| 4 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 10284460 | SEAL GASKET Ø10X16 MM |
| 7 | 16992211 | THREADED PLUG M12X1,5 |
| 8 | 16992111 | THREADED PLUG M10X1 |
