PU8210I03.00A100

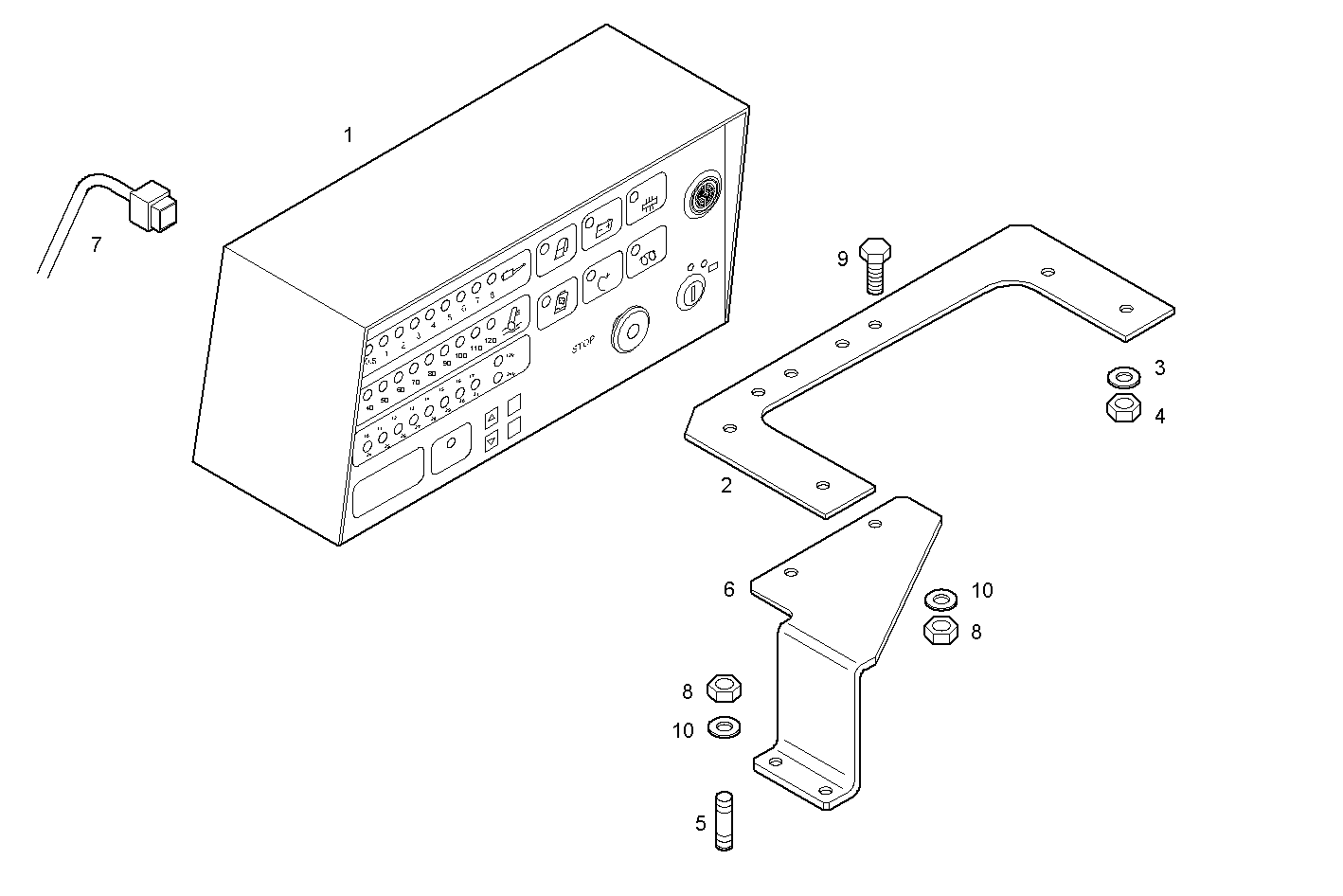

A38810007 DIGITAL INSTRUMENT PANEL 24V
Item | Part number | Description |
---|---|---|
1 | 8033504 | CONTROL BOARD ASSY 24V |
2 | 4928490 | RETAINER |
3 | 17088474 | WASHER Ø6X12 MM |
4 | 17037821 | HEXAGON NUT M6X1 |
5 | 17366124 | STUD M8X20X20 |
6 | 4928491 | SUPPORT |
7 | 8027920 | EXTENSION |
8 | 17037921 | HEXAGON NUT M8X1,25 |
9 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
