PU8210I03.00A102

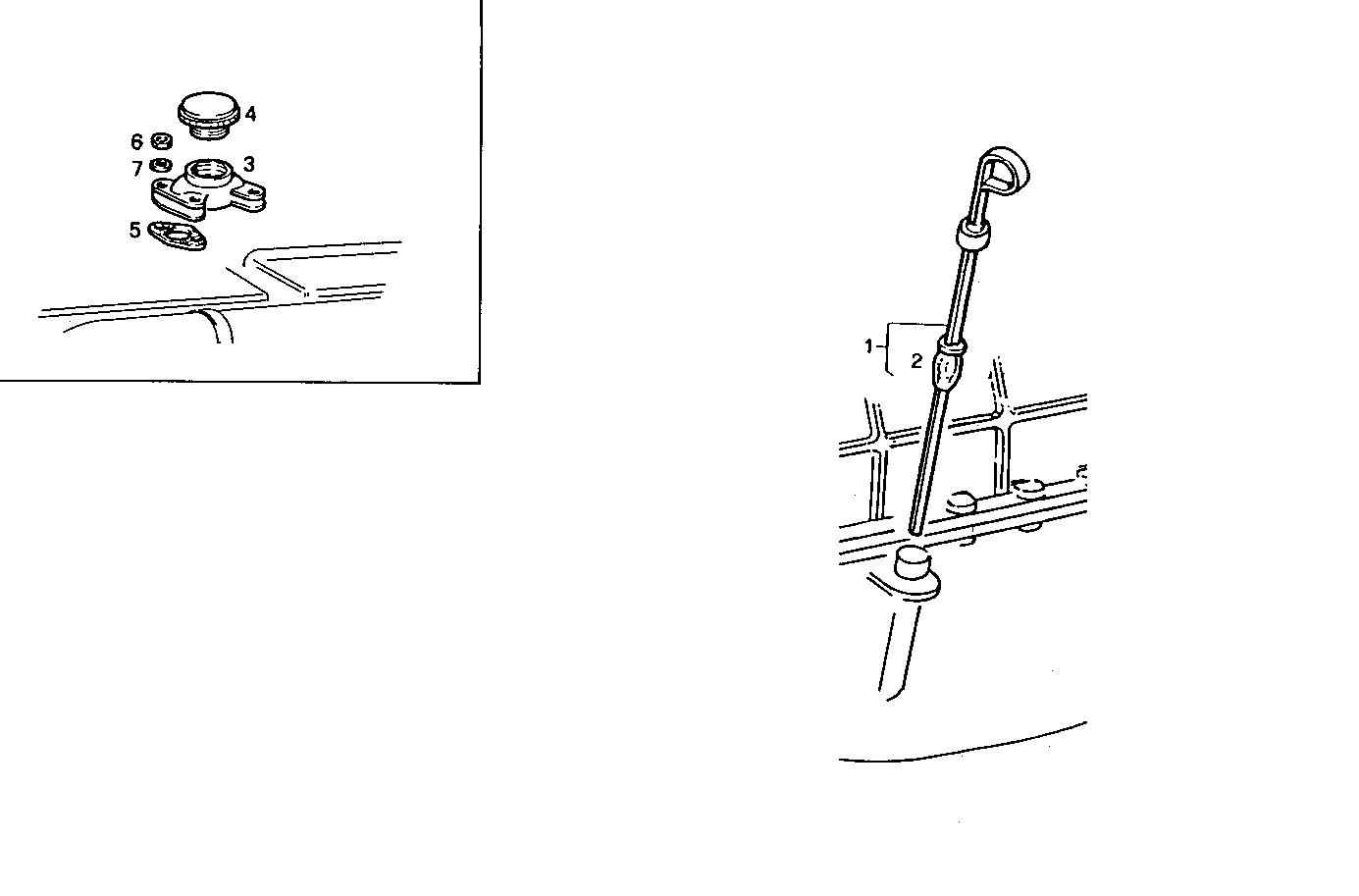

2710.059 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 4934486 | OIL DIPSTICK ASSY |
2 | 762035 | RUBBER PLUG |
3 | 4624360 | FILLER NECK |
4 | 4644097 | OIL FILLER PLUG |
5 | 4863952 | FLAT ENGINE GASKET |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 17089874 | WASHER Ø8X22 MM |
