PU8210i03.00A103

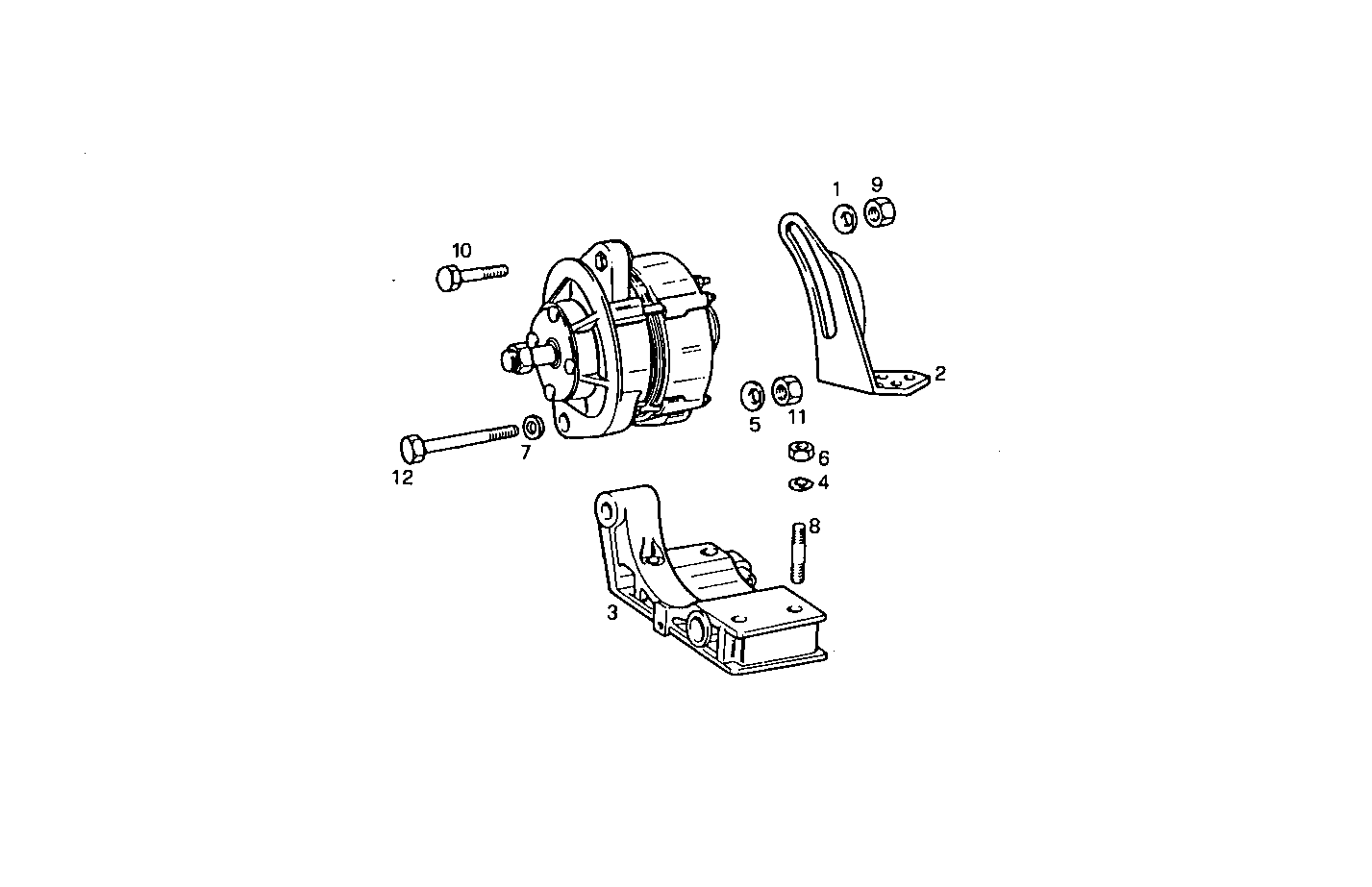

4010.008 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4513436 | SUPPORT RING Ø10X21X2 MM |
| 2 | 4610721 | BRACE/STRUT |
| 3 | 4611057 | SUPPORT |
| 4 | 11198371 | SPRING WASHER Ø10X20 MM |
| 5 | 11198671 | SPRING WASHER Ø13 MM |
| 6 | 12164711 | HEXAGON NUT M10X1,25 |
| 7 | 12646901 | WASHER Ø12X28 MM |
| 8 | 13454321 | STUD M10X25X60 |
| 9 | 13598011 | CASTLE NUT M10 |
| 10 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 11 | 16101511 | HEXAGON NUT M12X1,25 |
| 12 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
