PU8210i03.00A103

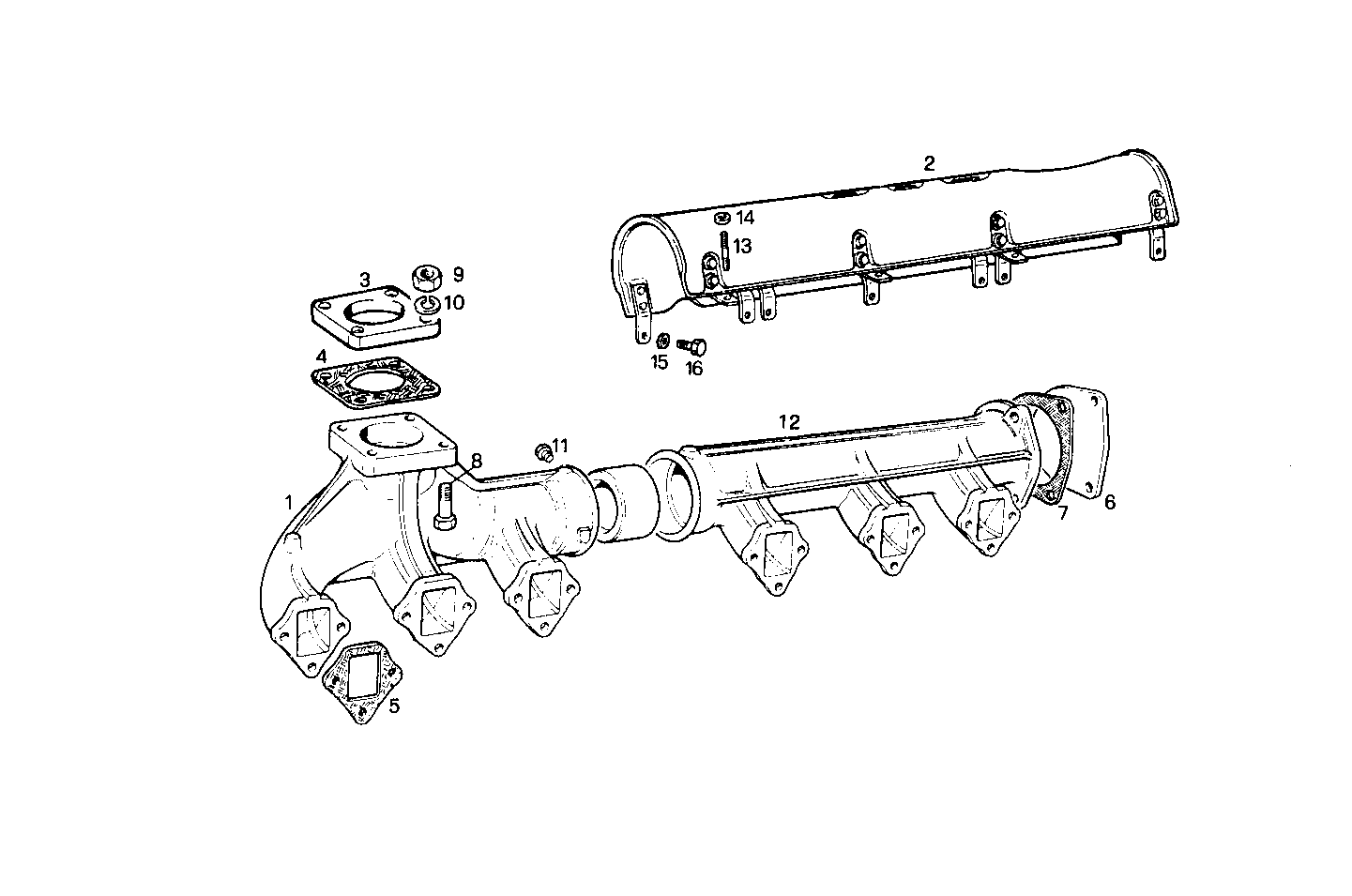

A06010005 EXHAUST MANIFOLD UPWARD OUTLET
Item | Part number | Description |
---|---|---|
1 | 79018636 | EXHAUST MANIFOLD |
2 | 4725197 | PROTECTION |
3 | 8100181 | FLANGE |
4 | 4972609 | GASKET |
5 | 4871982 | EXH. MANIFOLD GKT |
6 | 583406 | COVER |
7 | 4530835 | EXH. MANIFOLD GKT |
8 | 11343821 | HEXAGON BOLT M10X1,25X50 MM |
9 | 17038221 | HEXAGON NUT M10 |
10 | 17090174 | SPRING WASHER Ø10X20 MM |
11 | 4817522 | PLUG |
12 | 4874023 | EXHAUST MANIFOLD FRONT |
13 | 4762070 | STUD |
14 | 8032466 | WASHER |
15 | 98471734 | SPACING BAR |
16 | 98490937 | HEXAGON BOLT |
