PU8210I03.00A106

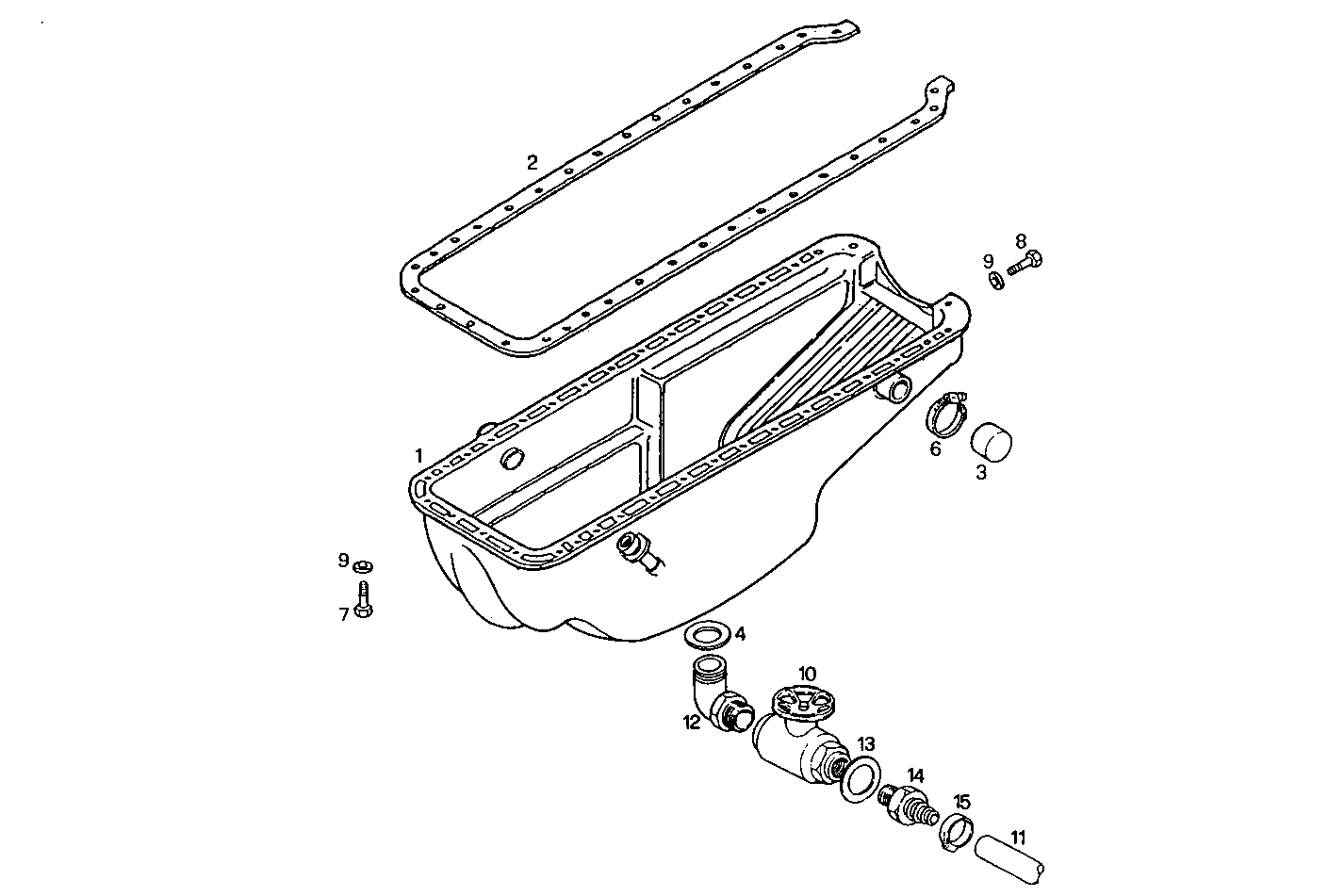

0420.142 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 4638299 | OIL SUMP ASSY |
2 | 98493262 | OIL SUMP GASKET |
3 | 4836520 | PLUG |
4 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
6 | 11764791 | CLIP |
7 | 10929824 | HEXAGON BOLT M10X1,25X25 MM |
8 | 10923624 | SCREW |
9 | 17090174 | SPRING WASHER Ø10X20 MM |
10 | 4930837 | RETAINER COCK |
11 | 4931236 | OIL HOSE Ø24X18 - L=680 MM |
12 | 4930838 | PIPE SOCKET |
13 | 10279560 | SEAL GASKET Ø22,2 MM |
14 | 4930839 | PIPE SOCKET |
15 | 17764592 | CLIP Ø20/32 MM |
