PU8210SRI10.00A101

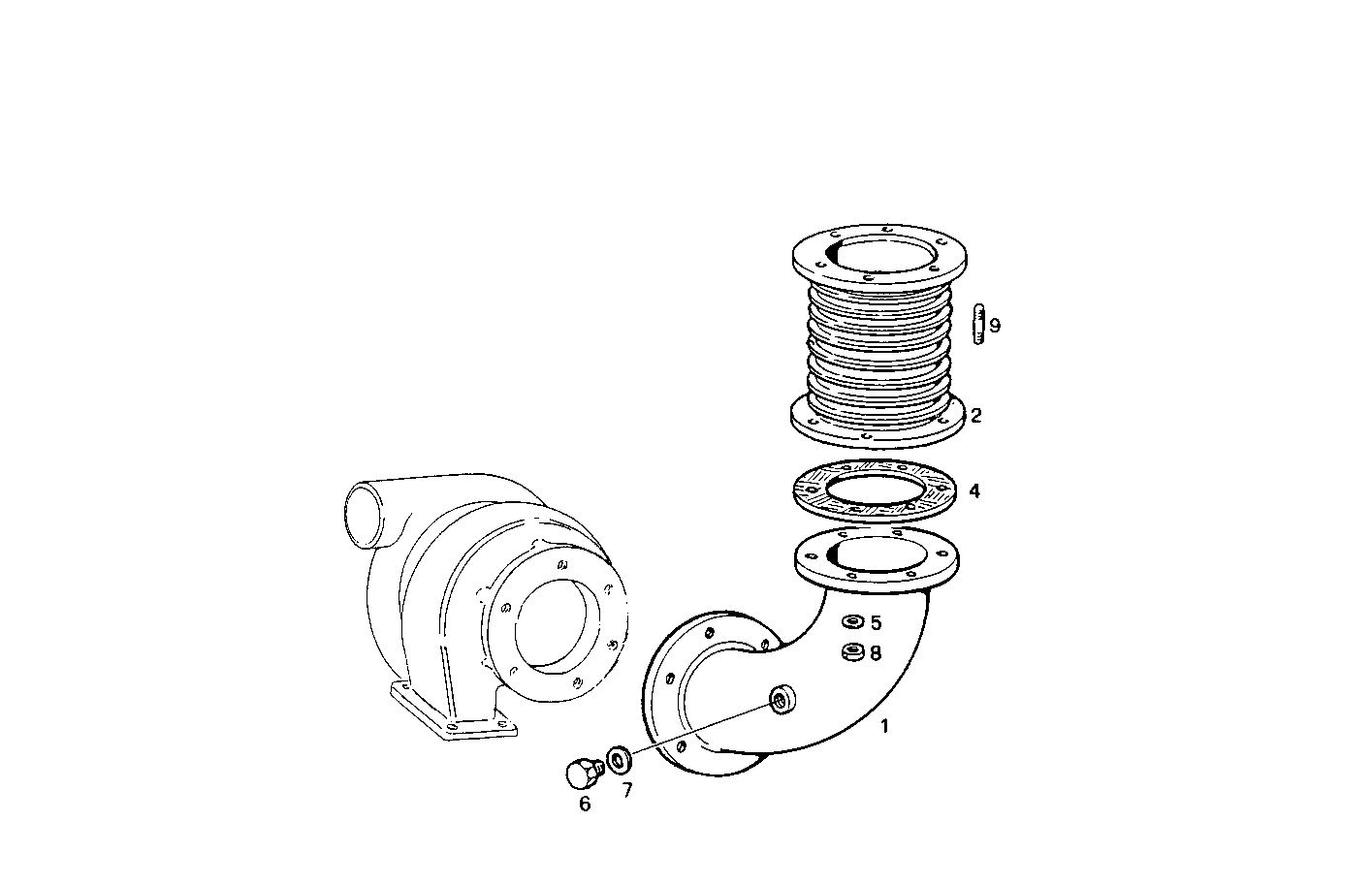

A40010007 TURNING EXHAUST ELBOW WITH BELLOWS
| Item | Part number | Description |
|---|---|---|
| 1 | 8108491 | EXHAUST ELBOW |
| 2 | 4935378 | EXHAUST BELLOWS |
| 4 | 8009606 | GASKET |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 10300511 | LOCK PLUG M12X1,5 |
| 7 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 13516921 | STUD M8X12X22 MM |
