PU8210SRI10.00A101

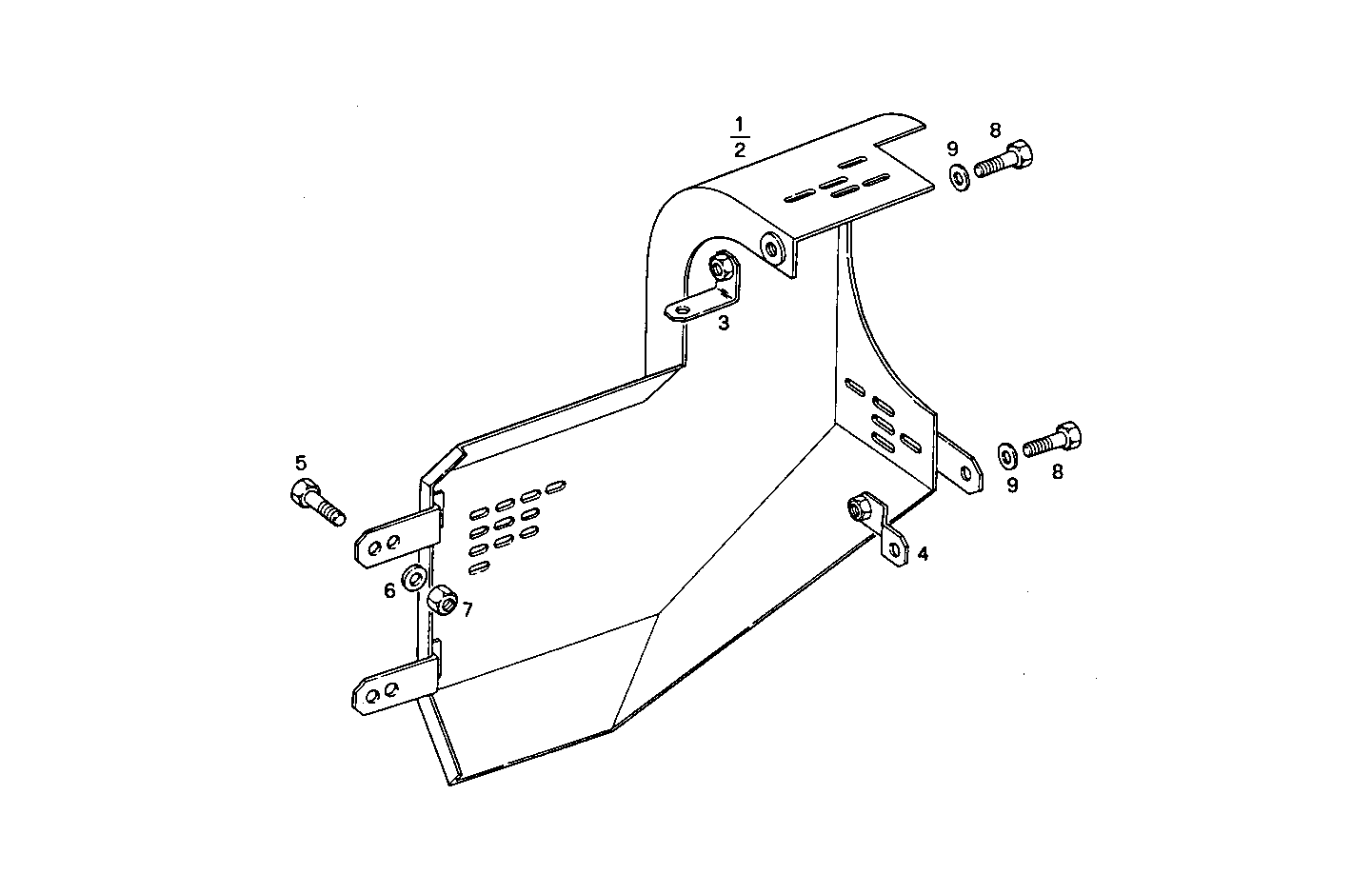

A48030002 GUARD - for turbocharger

Iveco/FPT GUARD

Item Part number Description
1 8110041 PROTECTION LEFT
2 8110042 PROTECTION RIGHT
3 8110294 RETAINER
4 8107203 RETAINER
5 15970421 HEXAGON BOLT M10X18 MM
6 11190579 SPRING WASHER Ø10X20 MM SP=2,3
7 12164711 HEXAGON NUT M10X1,25
8 16043221 HEXAGON BOLT M8X16 MM
9 11193879 SPRING WASHER Ø8X16 MM
