PU8281Si10.00A101

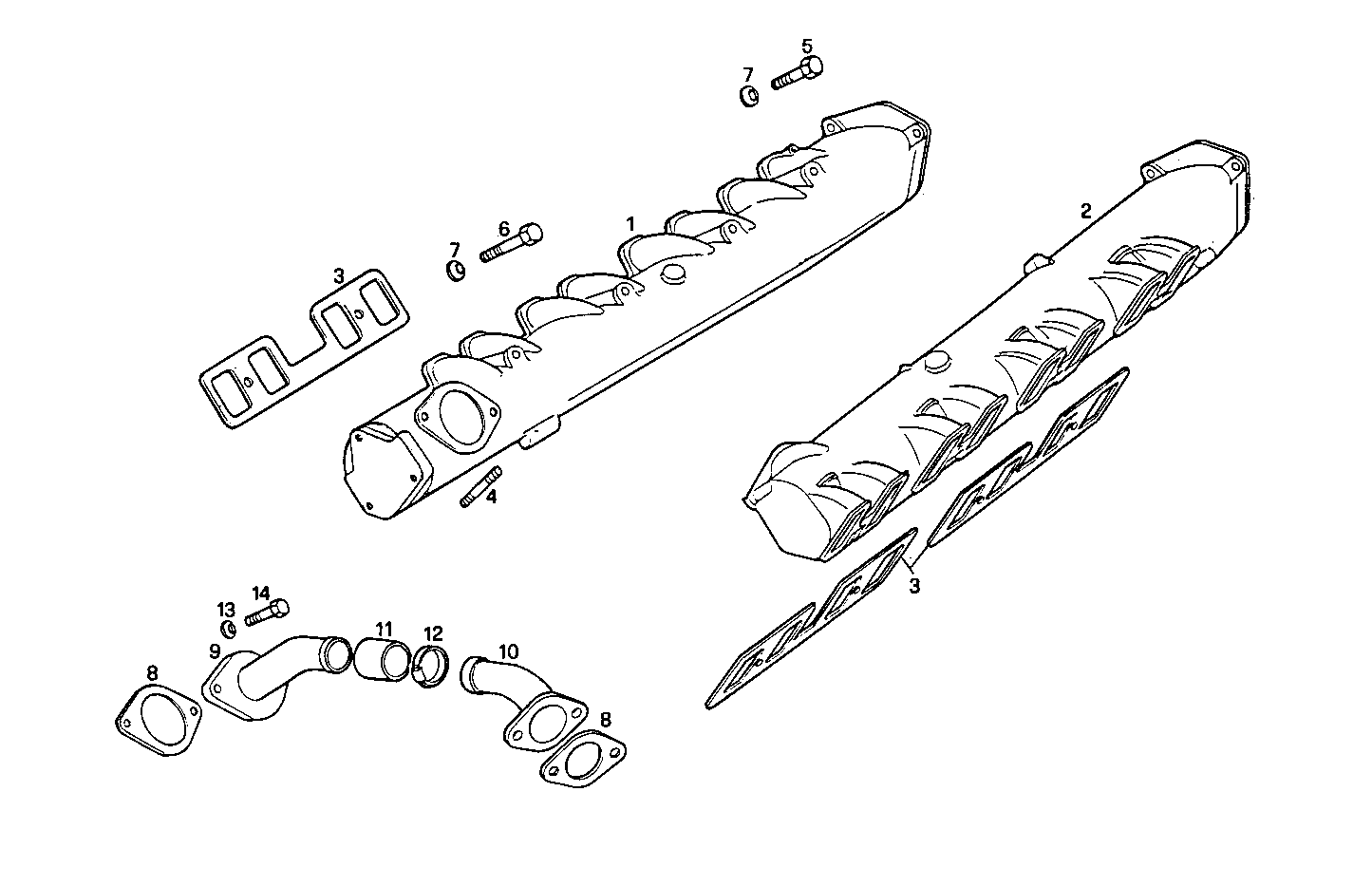

0710.035 INTAKE MANIFOLD
Item | Part number | Description |
---|---|---|
1 | 4731274 | INTAKE ELBOW RIGHT |
2 | 4761438 | INTAKE ELBOW LEFT |
3 | 4789747 | INTAKE ELBOW GASK. |
4 | 13516811 | STUD M8X12X20 MM |
5 | 15971821 | SCREW M10X1,25X100 |
6 | 15972221 | SCREW M10X1,25X120 |
7 | 4789748 | WASHER |
8 | 4863536 | FLAT ENGINE GASKET |
9 | 98443150 | INTAKE ELBOW |
10 | 98443151 | INTAKE ELBOW |
11 | 99443999 | WATER HOSE |
12 | 17765192 | HOSE CLIP Ø70-90 MM |
13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
14 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
