PU8281Si10.00A101

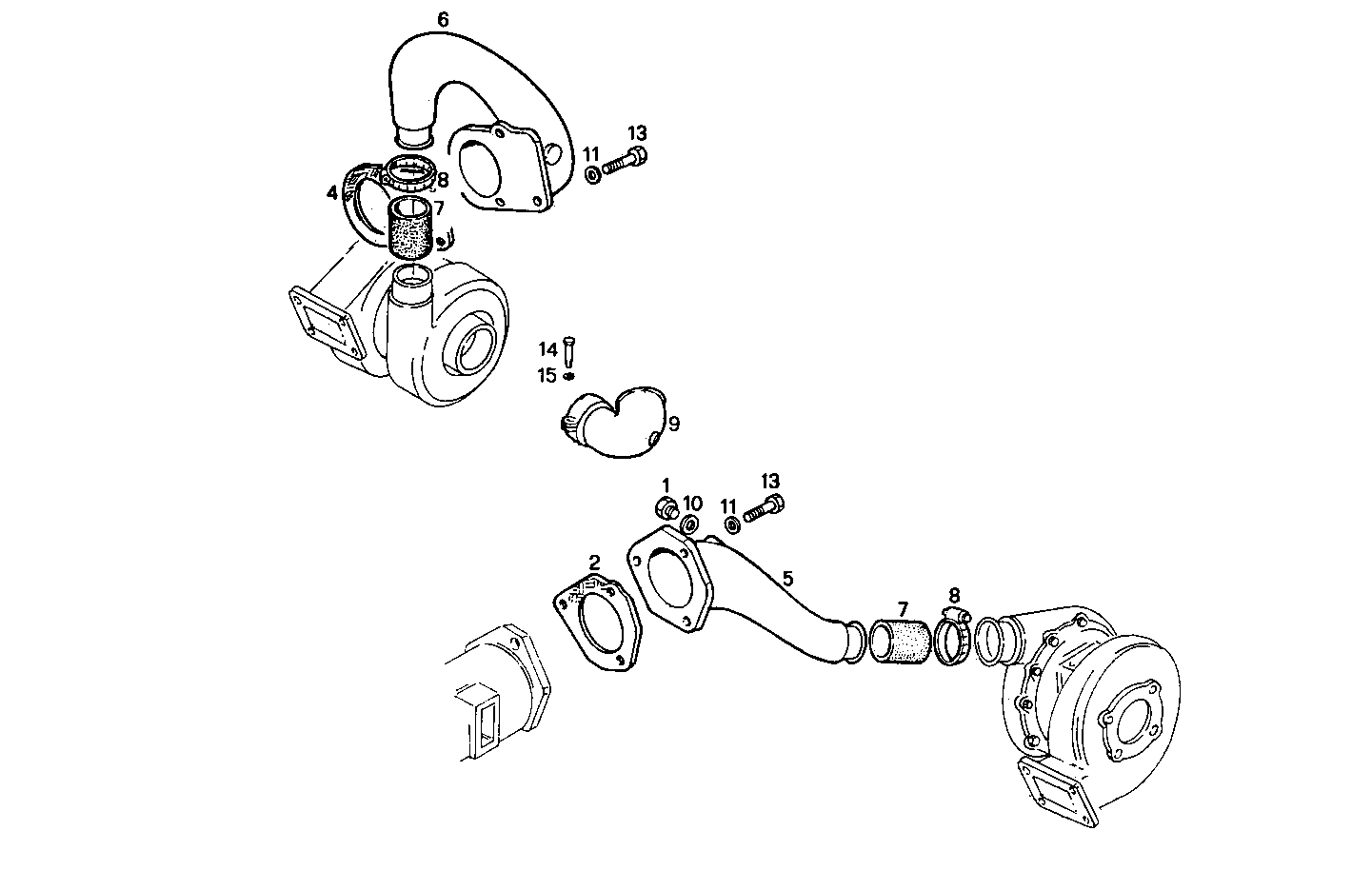

2420.031 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4577310 | THREADED PLUG |
| 2 | 500301319 | INTAKE ELBOW GASK. |
| 4 | 500301320 | FLAT ENGINE GASKET |
| 5 | 4764413 | INTAKE ELBOW |
| 6 | 4765058 | INTAKE ELBOW |
| 7 | 98420479 | WATER HOSE |
| 8 | 17764891 | CLIP Ø40/60 MM |
| 9 | 8014165 | INTAKE ELBOW |
| 10 | 10263460 | WASHER Ø22X28X1,5 MM |
| 11 | 17089974 | SPRING WASHER Ø8X22X2,4MM |
| 13 | 16625734 | HEXAGON BOLT M8X35 |
| 14 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 15 | 17094714 | WASHER Ø6,4X12 MM |
